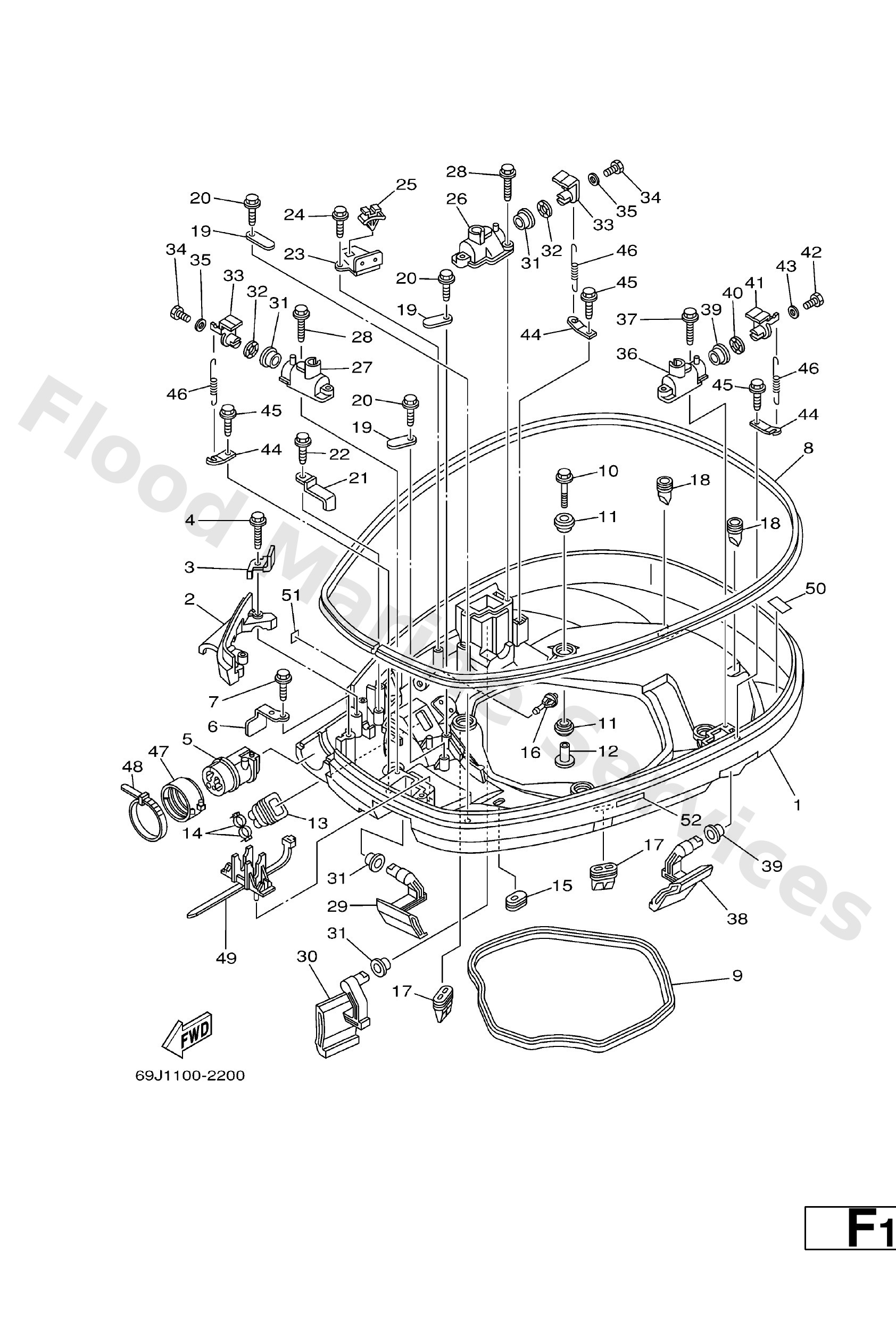

Diagram: BOTTOM COWLING 1
Parts List
Stay
Diagram Reference: 3
Bolt
Diagram Reference: 4
Grommet
Diagram Reference: 5
Bolt
Diagram Reference: 7
Seal
Diagram Reference: 8
Rubber seal 1
Diagram Reference: 9
Bolt, with washer
Diagram Reference: 10
Grommet
Diagram Reference: 11
Coller (6e5)
Diagram Reference: 12
Grommet
Diagram Reference: 13
Clamp
Diagram Reference: 14
Grommet
Diagram Reference: 15
Nipple, hose
Diagram Reference: 16
Rubber, seal 2
Diagram Reference: 17
Rubber, seal 2
Diagram Reference: 18
Plate
Diagram Reference: 19
Bolt
Diagram Reference: 20
Clamp
Diagram Reference: 21
Stay, Neutral Switch
Diagram Reference: 23
Clamp(65j)
Diagram Reference: 25
Lever, clamp
Diagram Reference: 29
Lever, clamp
Diagram Reference: 30
Bush(6l2)
Diagram Reference: 31
Washer, wave(6l2)
Diagram Reference: 32
Lever, clamp
Diagram Reference: 33
Bolt(7u8)
Diagram Reference: 34
Washer,plate (6k8)
Diagram Reference: 35
Plate, clamp
Diagram Reference: 36
Lever, clamp
Diagram Reference: 38
Lever, clamp
Diagram Reference: 41
Hook, spring
Diagram Reference: 44
Spring, tension(64d)
Diagram Reference: 46
Fastner
Diagram Reference: 47
Clamp
Diagram Reference: 48
Clamp
Diagram Reference: 49
Label (sparkplug mark)
Diagram Reference: 50
Plate, Mark
Diagram Reference: 52
