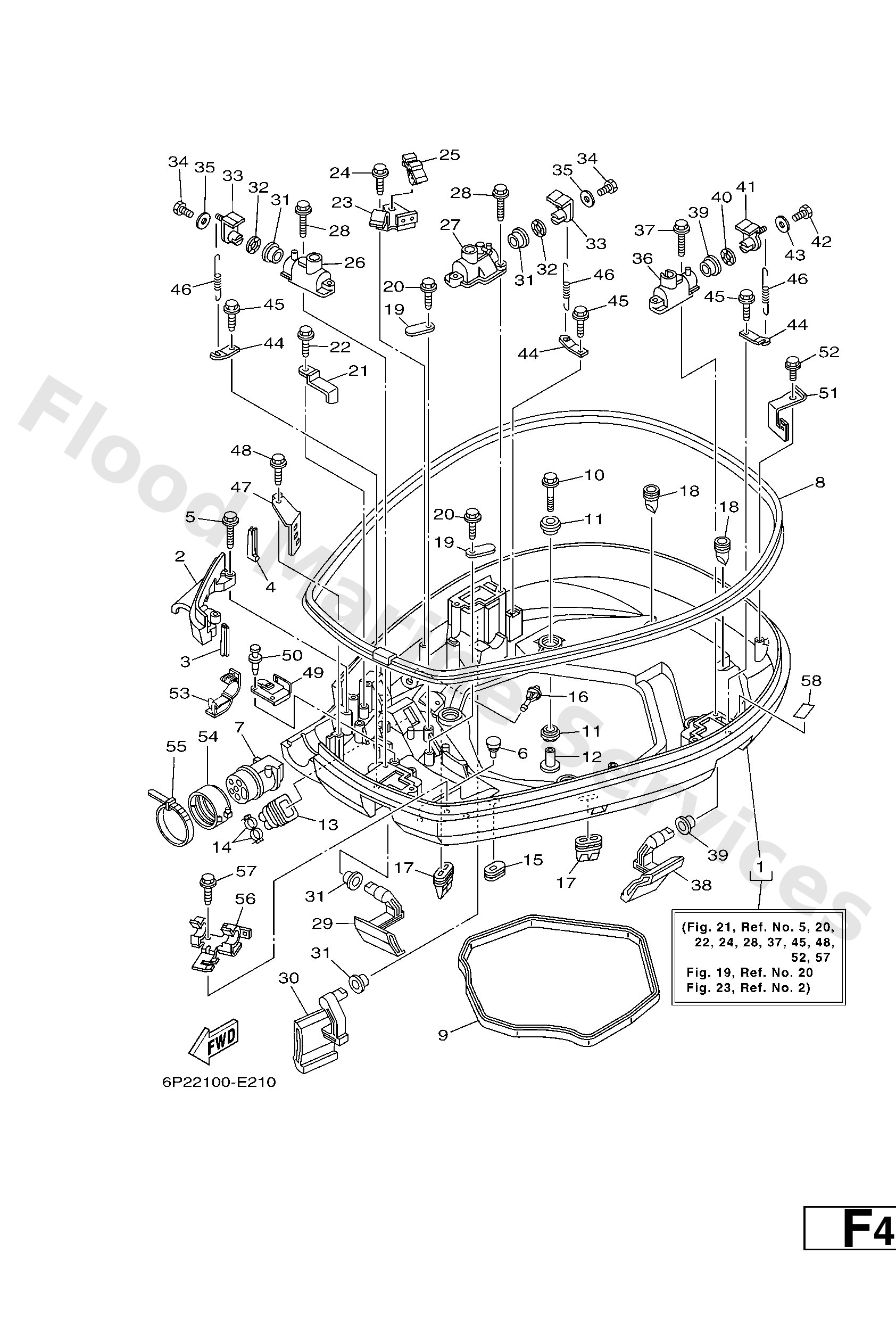

Diagram: BOTTOM COWLING 1
Parts List
Bottom cowling assembly
Diagram Reference: 1
Plate, fitting
Diagram Reference: 2
Rubber, seal 2
Diagram Reference: 3
Rubber, seal 3
Diagram Reference: 4
Bolt
Diagram Reference: 5
Grommet
Diagram Reference: 7
Seal
Diagram Reference: 8
Rubber, Seal 1
Diagram Reference: 9
Bolt, With Washer
Diagram Reference: 10
Grommet
Diagram Reference: 11
Collar
Diagram Reference: 12
Clamp
Diagram Reference: 14
Nipple, Hose
Diagram Reference: 16
Rubber, Seal 2
Diagram Reference: 17
Plate
Diagram Reference: 19
Bolt
Diagram Reference: 20
Clamp
Diagram Reference: 21
Bolt
Diagram Reference: 22
Stay, neutral switch
Diagram Reference: 23
Clamp
Diagram Reference: 25
Plate, clamp
Diagram Reference: 26
Plate, clamp
Diagram Reference: 27
Lever, Clamp
Diagram Reference: 29
Lever, Clamp
Diagram Reference: 30
Bush
Diagram Reference: 31
Washer, Wave
Diagram Reference: 32
Bolt
Diagram Reference: 34
Washer, Plate
Diagram Reference: 35
Plate, Clamp
Diagram Reference: 36
Lever, Clamp
Diagram Reference: 38
Spring, Tension
Diagram Reference: 46
Bracket
Diagram Reference: 47
Bracket 2
Diagram Reference: 49
Rivet
Diagram Reference: 50
Bracket 3
Diagram Reference: 51
Clamp
Diagram Reference: 53
Clamp
Diagram Reference: 55
Clamp
Diagram Reference: 56
Label
Diagram Reference: 58
