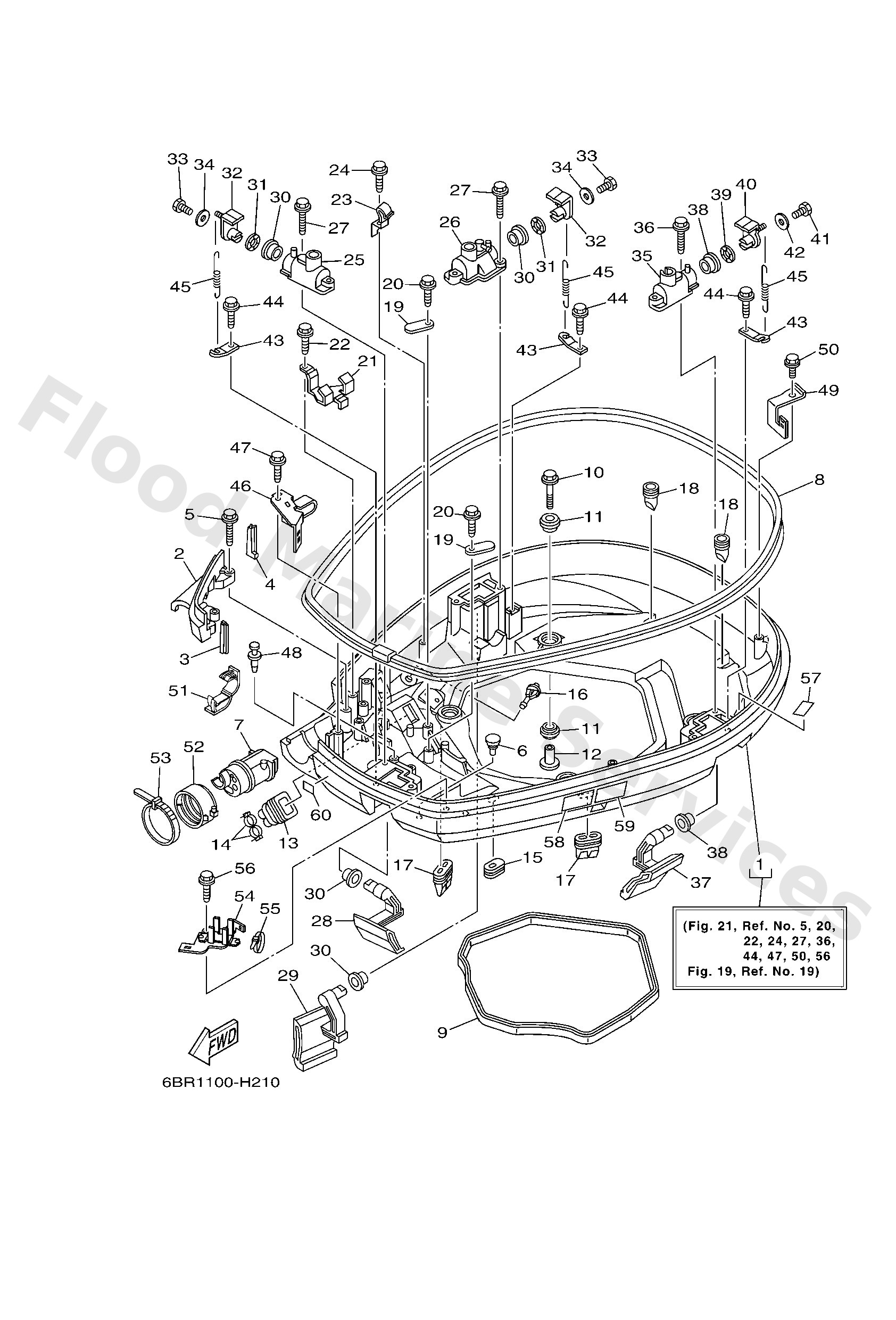

Diagram: BOTTOM COWLING 1
Parts List
Bottom cowling assembly
Diagram Reference: 1
Plate, fitting
Diagram Reference: 2
Rubber, seal 2
Diagram Reference: 3
Rubber, seal 3
Diagram Reference: 4
Bolt
Diagram Reference: 5
Grommet
Diagram Reference: 6
Grommet
Diagram Reference: 7
Seal
Diagram Reference: 8
Rubber seal 1
Diagram Reference: 9
Bolt, with washer
Diagram Reference: 10
Grommet
Diagram Reference: 11
Coller (6e5)
Diagram Reference: 12
Grommet
Diagram Reference: 13
Clamp
Diagram Reference: 14
Grommet
Diagram Reference: 15
Nipple, hose
Diagram Reference: 16
Rubber, seal 2
Diagram Reference: 17
Rubber, seal 2
Diagram Reference: 18
Plate
Diagram Reference: 19
Bolt
Diagram Reference: 20
Plate, Clamp 2
Diagram Reference: 21
Bolt
Diagram Reference: 22
Clamp
Diagram Reference: 23
Plate, clamp
Diagram Reference: 25
Plate, clamp
Diagram Reference: 26
Lever, clamp
Diagram Reference: 28
Lever, clamp
Diagram Reference: 29
Bush(6l2)
Diagram Reference: 30
Washer, wave(6l2)
Diagram Reference: 31
Lever, clamp
Diagram Reference: 32
Bolt(7u8)
Diagram Reference: 33
Washer,plate (6k8)
Diagram Reference: 34
Plate, clamp
Diagram Reference: 35
Lever, clamp
Diagram Reference: 37
Lever, clamp
Diagram Reference: 40
Hook, spring
Diagram Reference: 43
Spring, tension
Diagram Reference: 45
Bracket
Diagram Reference: 46
Rivet
Diagram Reference: 48
Bracket 3
Diagram Reference: 49
Clamp
Diagram Reference: 51
Fastner
Diagram Reference: 52
Clamp
Diagram Reference: 53
Clamp
Diagram Reference: 54
Band, switch cord
Diagram Reference: 55
Label
Diagram Reference: 57
Label, warning (ge
Diagram Reference: 58
Label, warning (ge
Diagram Reference: 59
Mark
Diagram Reference: 60
