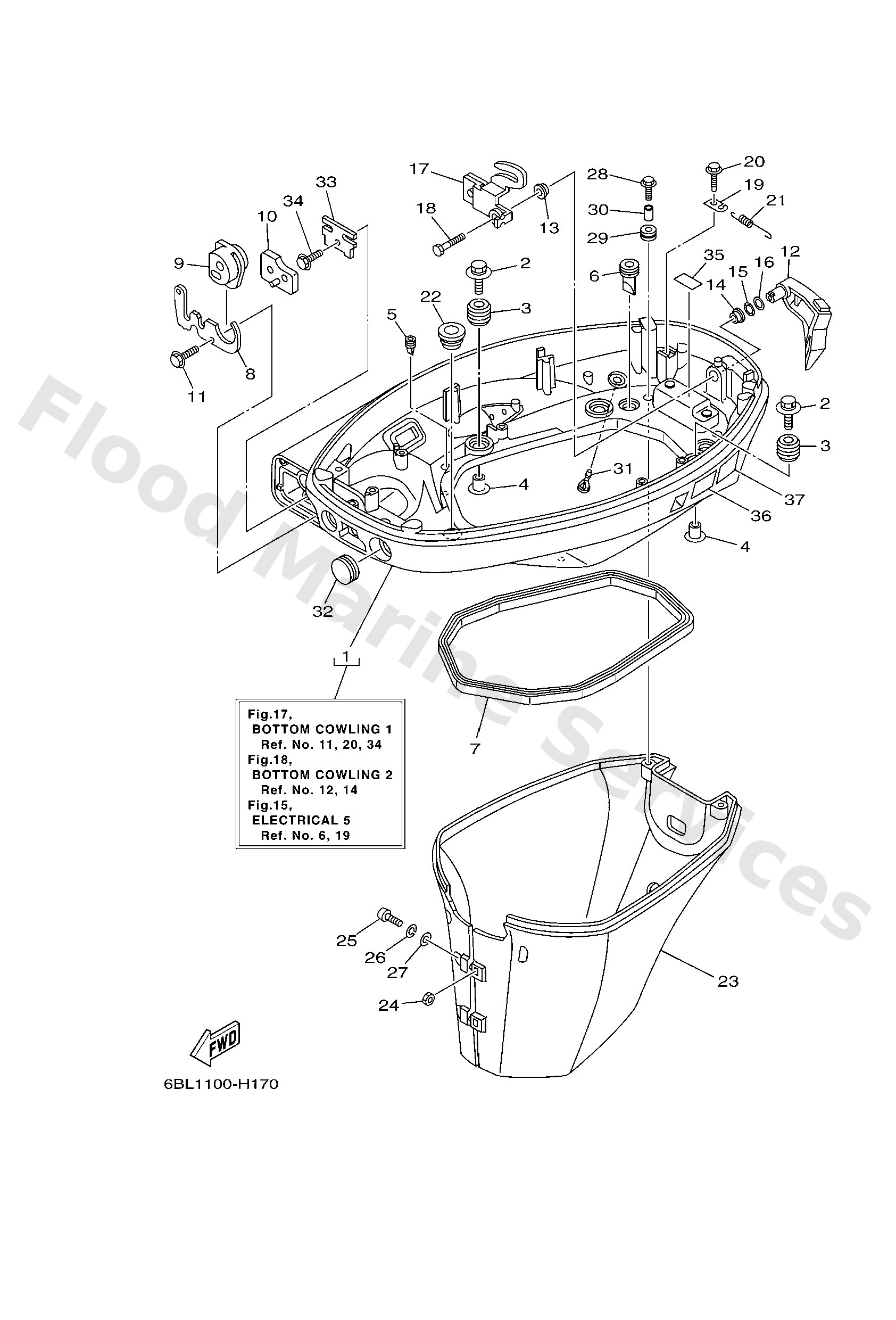

Diagram: BOTTOM COWLING 1
Parts List
Bottom cowling assembly
Diagram Reference: 1
Bolt, with washer
Diagram Reference: 2
Grommet
Diagram Reference: 3
Collar (688)
Diagram Reference: 4
Rubber, seal 2
Diagram Reference: 5
Rubber, seal 2
Diagram Reference: 6
Rubber seal 1
Diagram Reference: 7
Stopper
Diagram Reference: 8
Grommet
Diagram Reference: 9
Grommet
Diagram Reference: 10
Bolt
Diagram Reference: 11
Lever, clamp
Diagram Reference: 12
Bushing (6f5)
Diagram Reference: 13
Bush
Diagram Reference: 14
Washer, wave (666)
Diagram Reference: 15
Washer, plate
Diagram Reference: 16
Lever, clamp
Diagram Reference: 17
Bolt(gh1)
Diagram Reference: 18
Hook, spring
Diagram Reference: 19
Spring, tension
Diagram Reference: 21
Grommet
Diagram Reference: 22
Apron
Diagram Reference: 23
Nut(661)
Diagram Reference: 24
Screw, pan head(6b0)
Diagram Reference: 25
Washer(6a1)
Diagram Reference: 26
Washer, plain (646)
Diagram Reference: 27
Bolt(gj3)
Diagram Reference: 28
Grommet (6e9)
Diagram Reference: 29
Coller (6e9)
Diagram Reference: 30
Nipple, hose
Diagram Reference: 31
Grommet
Diagram Reference: 32
Clamp, cable 1
Diagram Reference: 33
ラベル
Diagram Reference: 35
Label, warning (ge
Diagram Reference: 36
Label, warning (ge
Diagram Reference: 37
