Yamaha Outboard Parts - BOTTOM COWLING 2 - F200GET (2013)

6DA4274000 (X(25.3"))

Apron complete 1 & nut

Diagram Reference: 1

6DA4277000 (X(25.3"))

Apron complete 2 & nut

Diagram Reference: 2

9011106144 (X(25.3"))

Bolt,hex. socket button

Diagram Reference: 3

9011106142 (X(25.3"))

Bolt,hex. socket button

Diagram Reference: 4

9048016009 (X(25.3"))

Grommet

Diagram Reference: 5

9038707028 (X(25.3"))

Collar

Diagram Reference: 6

9017306001 (X(25.3"))

Nut, square

Diagram Reference: 7

90183061A6

Nut, spring

Diagram Reference: 8

9015906053

Screw, with washer

Diagram Reference: 9

9048013M24

Grommet (6e9)

Diagram Reference: 10

9038706M43

Coller (6e9)

Diagram Reference: 11

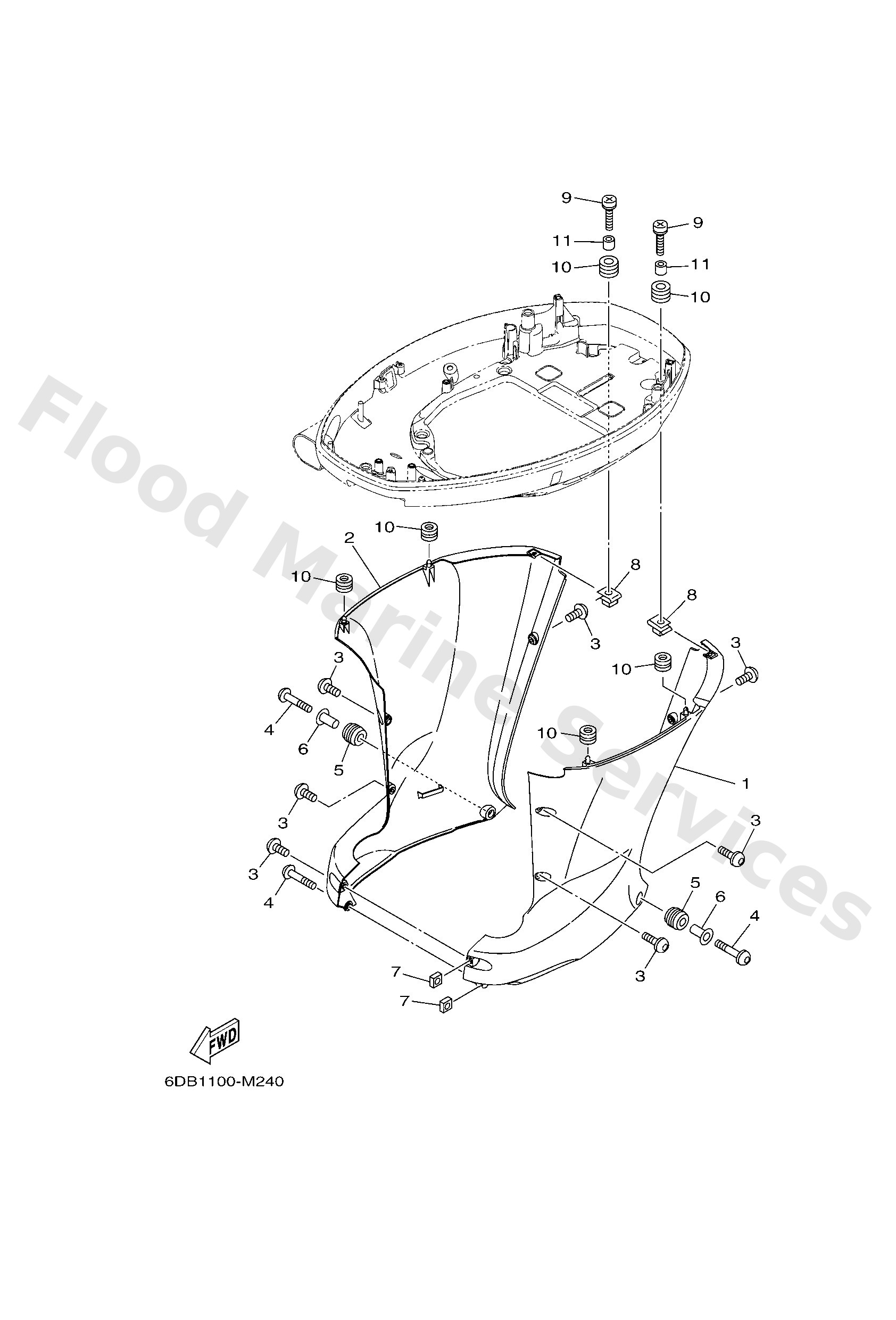

Diagram: BOTTOM COWLING 2
