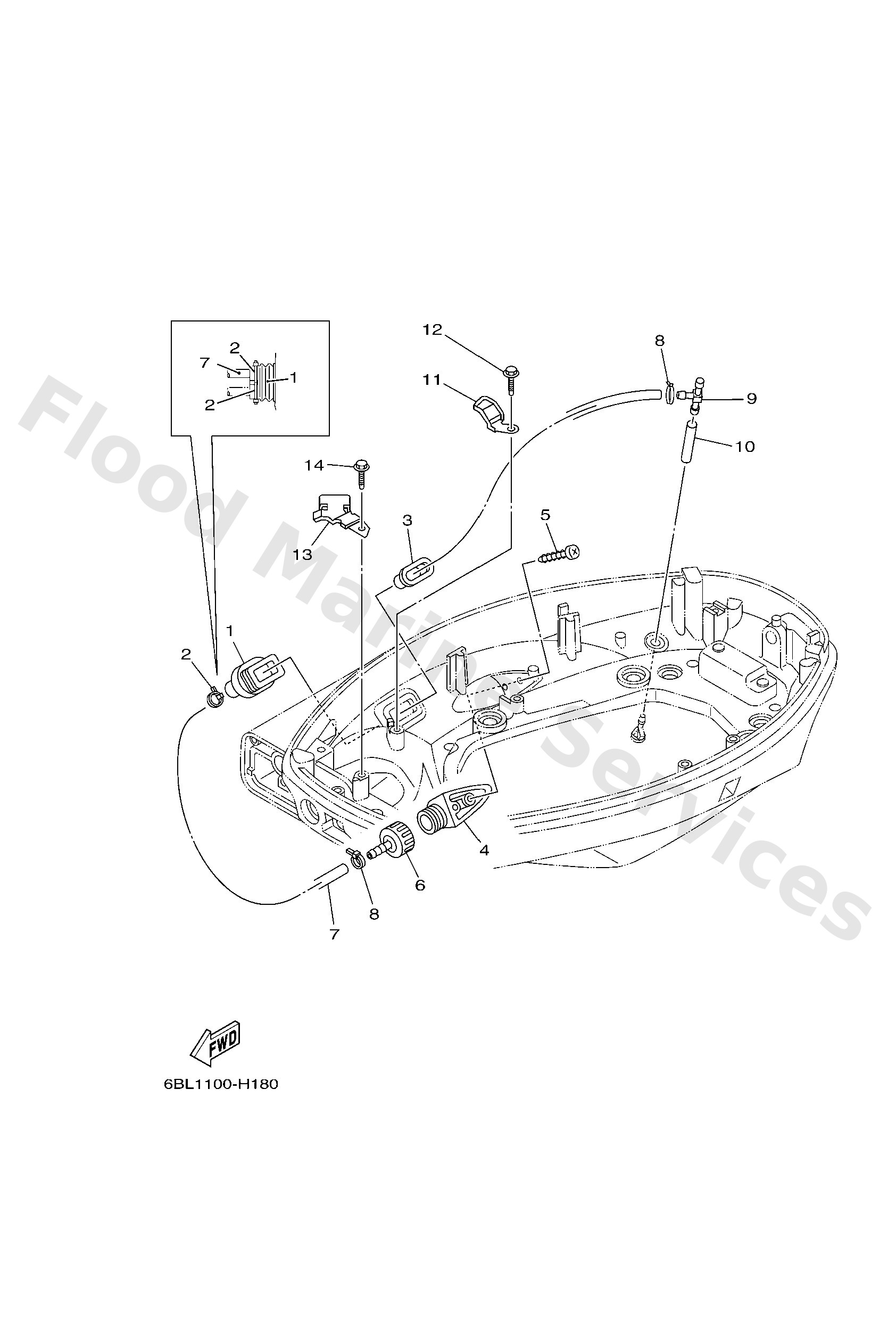

Diagram: BOTTOM COWLING 2
Parts List
Grommet
Diagram Reference: 1
Clamp
Diagram Reference: 2
Seal, cap
Diagram Reference: 3
Adapter
Diagram Reference: 4
Screw, tapping(6k8)
Diagram Reference: 5
Joint assembly
Diagram Reference: 6
Hose (l800)
Diagram Reference: 7
Pipe, joint 4
Diagram Reference: 9
Hose (l180)
Diagram Reference: 10
Plate
Diagram Reference: 11
Bolt
Diagram Reference: 12
Stay
Diagram Reference: 13
