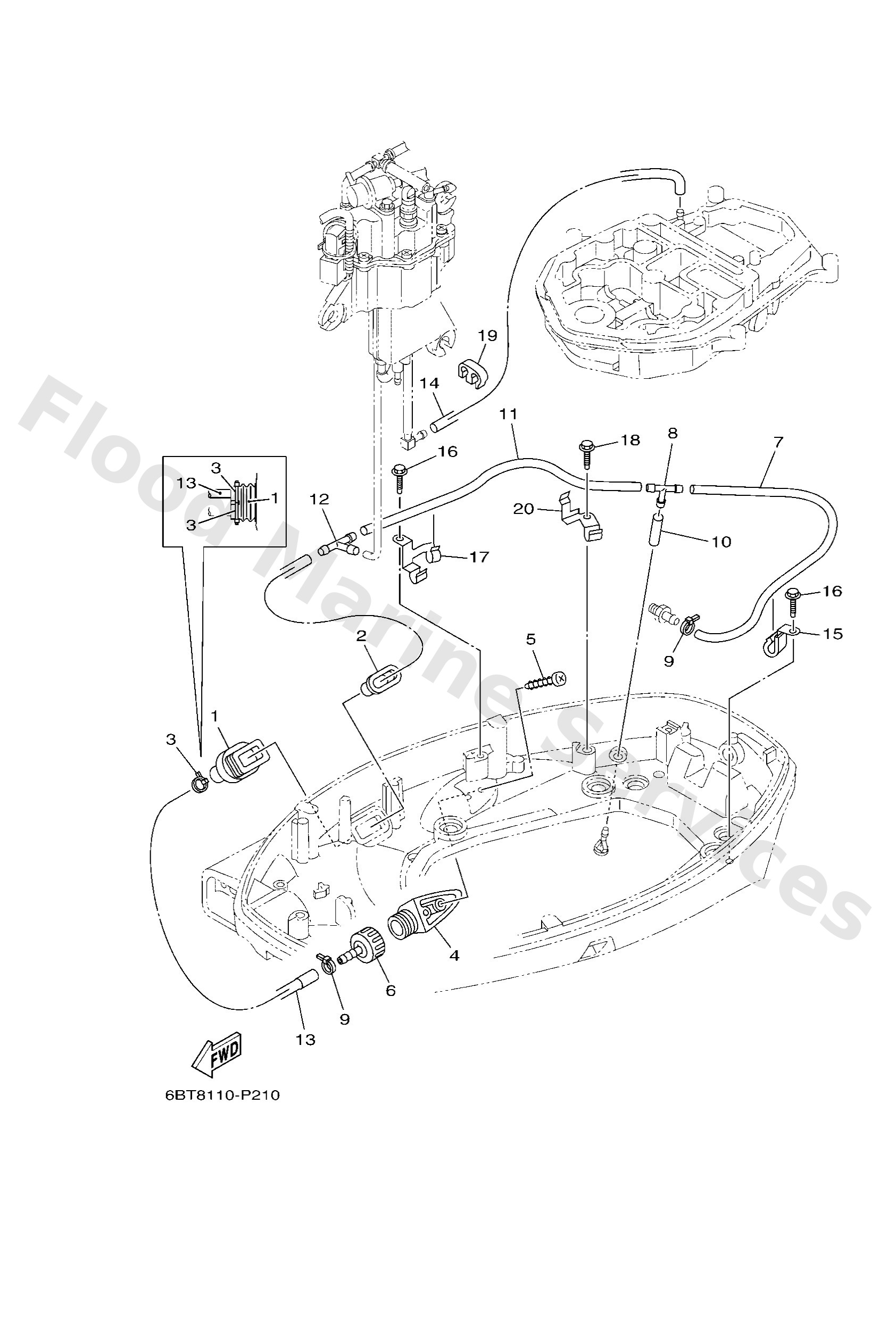

Diagram: BOTTOM COWLING 2

Diagram

Parts List

6H14272621

Grommet

Diagram Reference: 1

6BG4238400

Seal, cap

Diagram Reference: 2

9046511M10 (Go to P/N ) PE0-OM-160024)

Clamp

Diagram Reference: 9

6AW1257200

Adapter

Diagram Reference: 4

9778060520

Screw, tapping(6k8)

Diagram Reference: 5

6R31258000

Joint assembly

Diagram Reference: 6

9044509035 (Go to P/N ) PE0-OM-160024)

Hose (l420)

Diagram Reference: 7

6882437800 (Go to P/N ) PE0-OM-160024)

Pipe, joint

Diagram Reference: 8

9044509220 (Go to P/N ) PE0-OM-160024)

Hose (l1500)

Diagram Reference: 10

9044509224 (Go to P/N ) PE0-OM-160024)

Hose (l1500)

Diagram Reference: 11

6BG1248100

Pipe 1

Diagram Reference: 13

6A12431100 (Go to P/N ) PE0-OM-160024)

Pipe 1

Diagram Reference: 14

9046208067

Clamp

Diagram Reference: 15

9010906M86

Bolt

Diagram Reference: 16

6BG2413501

Clamp 1

Diagram Reference: 17

9046409M21 (Go to P/N ) PE0-OM-160024)

Clamp(6j8)

Diagram Reference: 19

6BG2413601

Clamp 2

Diagram Reference: 20
