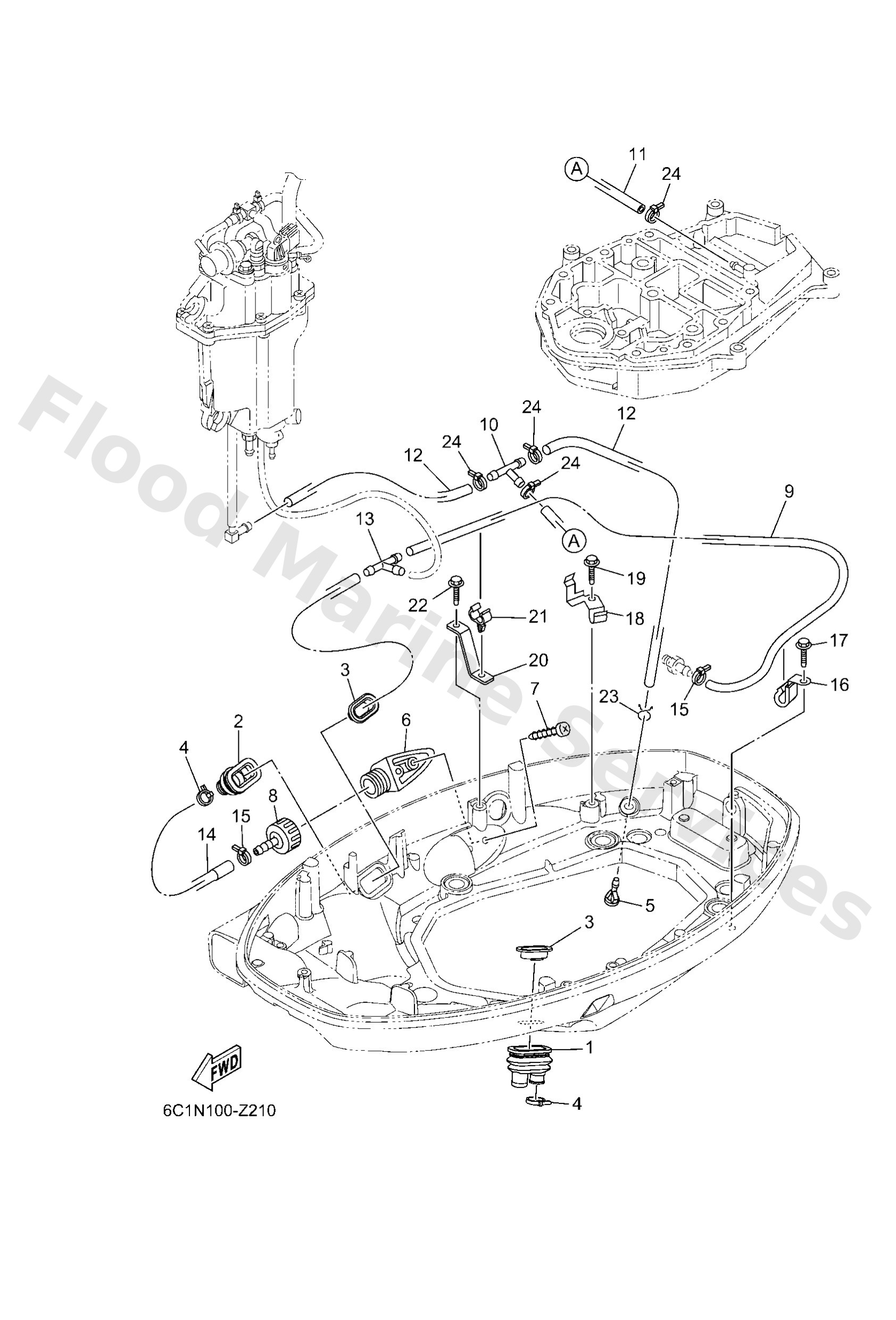

Diagram: BOTTOM COWLING 2
Parts List
Grommet
Diagram Reference: 1
Grommet
Diagram Reference: 2
Seal, cap
Diagram Reference: 3
Clamp
Diagram Reference: 4
Nipple, hose
Diagram Reference: 5
Adapter
Diagram Reference: 6
Screw, tapping(6k8)
Diagram Reference: 7
Joint assembly
Diagram Reference: 8
Hose (l659)
Diagram Reference: 9
Pipe, joint
Diagram Reference: 10
Hose (l180)
Diagram Reference: 11
Hose (l420)
Diagram Reference: 12
Pipe 1
Diagram Reference: 14
Clamp
Diagram Reference: 16
Bolt
Diagram Reference: 17
Clamp 2
Diagram Reference: 18
Clamp 1
Diagram Reference: 20
Clamp(3ld)
Diagram Reference: 21
Clip
Diagram Reference: 23
