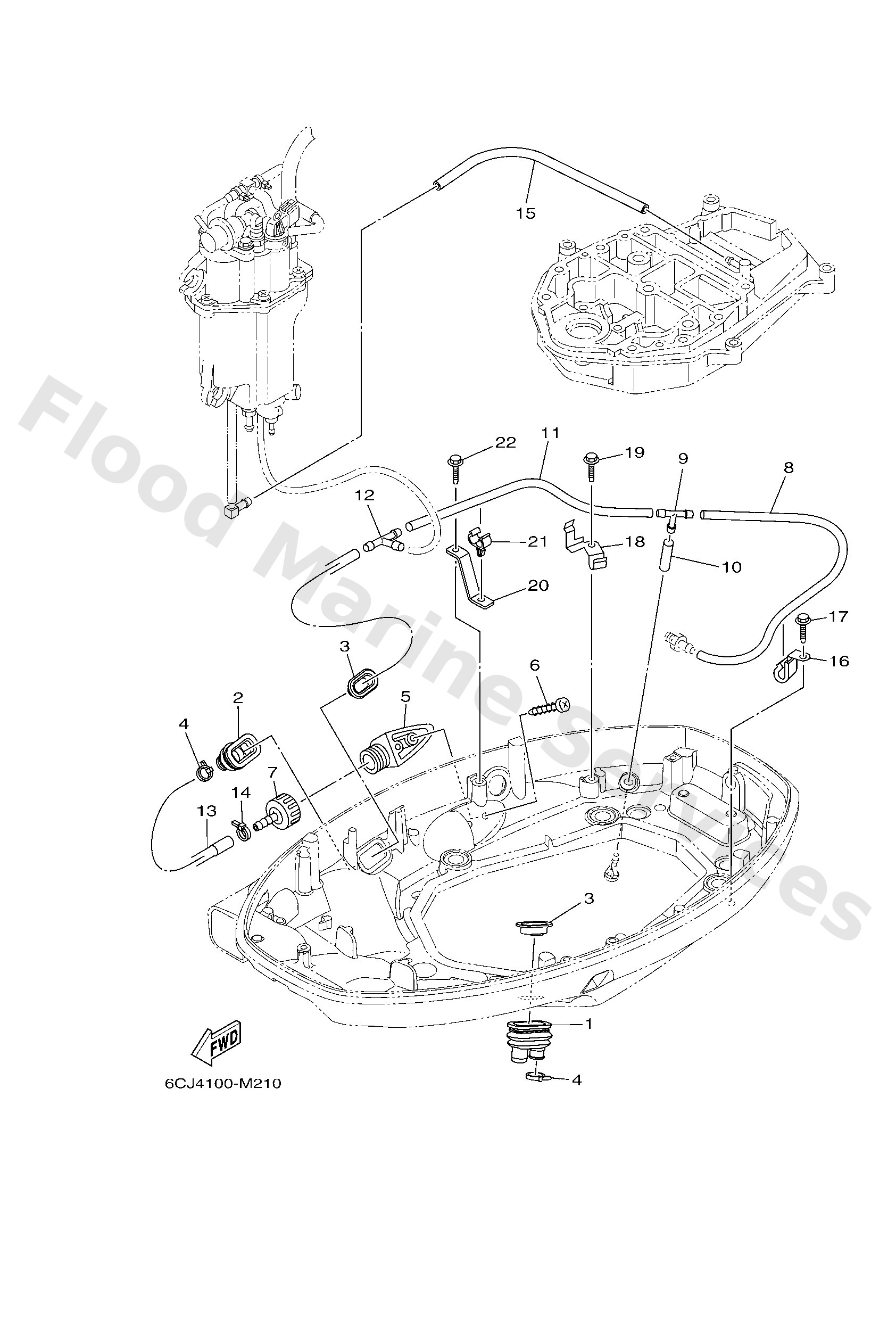

Diagram: BOTTOM COWLING 2
Parts List
Grommet
Diagram Reference: 1
Grommet
Diagram Reference: 2
Seal, cap
Diagram Reference: 3
Clamp
Diagram Reference: 4
Adapter
Diagram Reference: 5
Screw, tapping(6k8)
Diagram Reference: 6
Joint assembly
Diagram Reference: 7
Hose (l400)
Diagram Reference: 8
Pipe, joint
Diagram Reference: 9
Hose (l1500)
Diagram Reference: 10
Hose (l1500)
Diagram Reference: 11
Pipe 1
Diagram Reference: 13
Hose (l1500)
Diagram Reference: 15
Clamp
Diagram Reference: 16
Bolt
Diagram Reference: 17
Clamp 2
Diagram Reference: 18
Clamp 1
Diagram Reference: 20
Clamp(3ld)
Diagram Reference: 21
