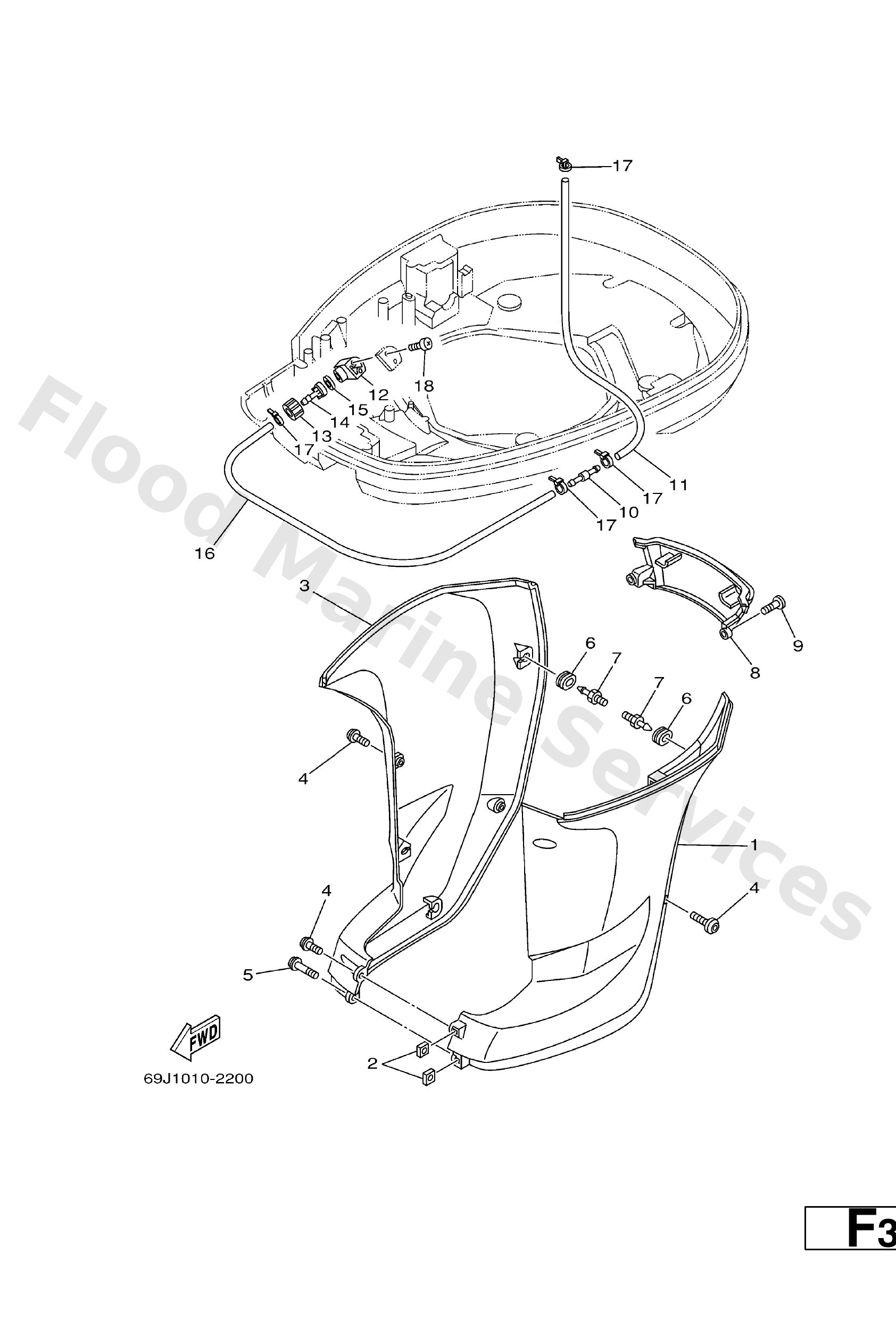

Diagram: BOTTOM COWLING 2
Parts List
Apron
Diagram Reference: 1
Nut, square
Diagram Reference: 2
Apron
Diagram Reference: 3
Bolt,hex. socket button
Diagram Reference: 4
Bolt,hex. socket button
Diagram Reference: 5
Grommet(6j8)
Diagram Reference: 6
Stay, apron 1
Diagram Reference: 7
Cover, upper casing
Diagram Reference: 8
Pipe, joint 4
Diagram Reference: 10
Hose
Diagram Reference: 11
Adapter
Diagram Reference: 12
Joint, hose 1
Diagram Reference: 13
Joint, hose 2
Diagram Reference: 14
Gasket, hose joint
Diagram Reference: 15
Hose
Diagram Reference: 16
Clamp
Diagram Reference: 17
Screw, tapping(6k8)
Diagram Reference: 18
