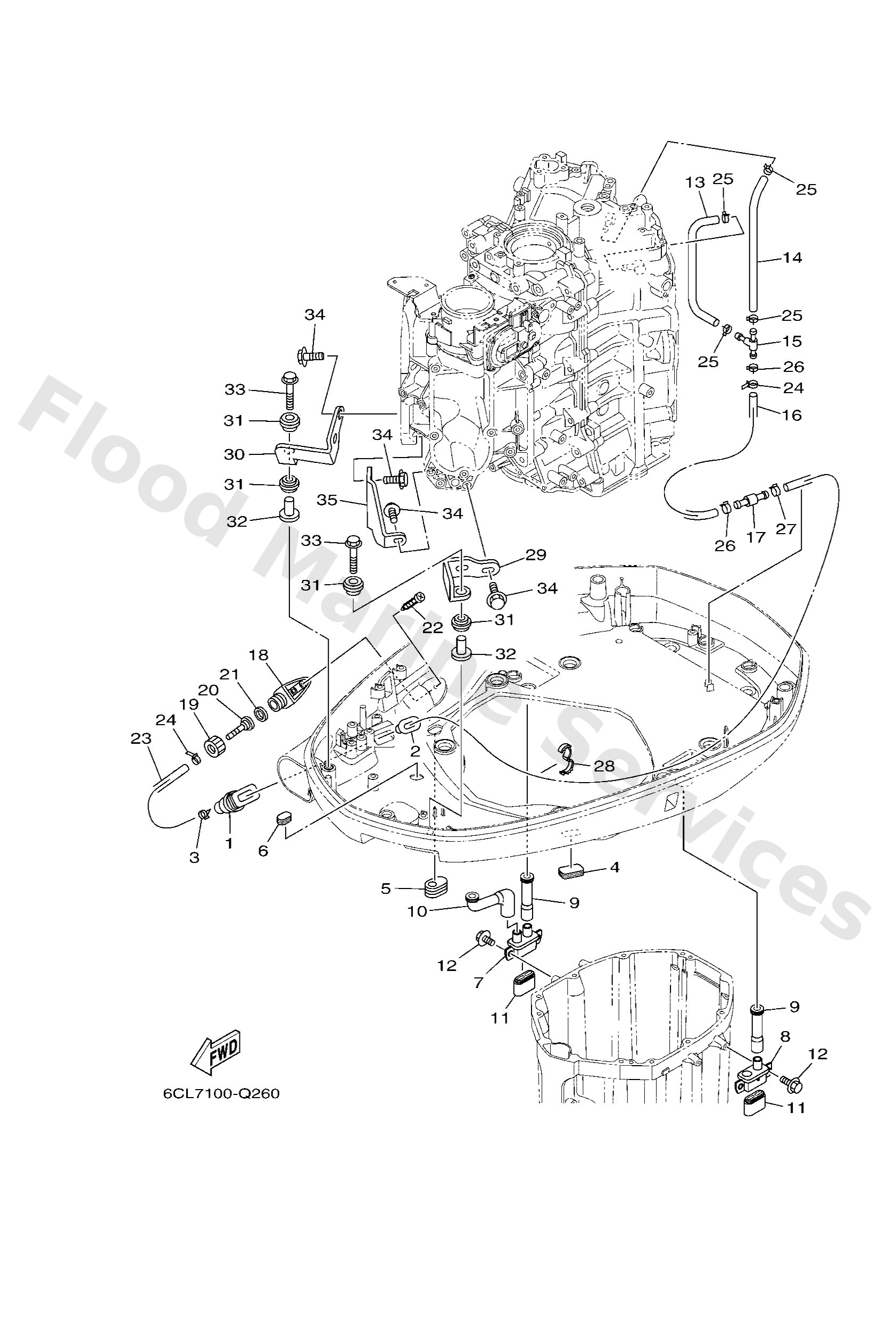

Diagram: BOTTOM COWLING 2
Parts List
Seal, Cap
Diagram Reference: 2
Clamp
Diagram Reference: 3
Grommet
Diagram Reference: 6
Box, drain
Diagram Reference: 7
Box, drain 2
Diagram Reference: 8
Hose, drain 1
Diagram Reference: 9
Hose, drain 2
Diagram Reference: 10
Rubber, Seal 2
Diagram Reference: 11
Bolt, flange deep recess
Diagram Reference: 12
Pipe 5
Diagram Reference: 13
Hose
Diagram Reference: 14
Joint
Diagram Reference: 15
Hose
Diagram Reference: 16
Pipe
Diagram Reference: 17
Adapter
Diagram Reference: 18
Joint, Hose 1
Diagram Reference: 19
Joint, Hose 2
Diagram Reference: 20
Gasket, Hose Joint
Diagram Reference: 21
Screw, Tapping
Diagram Reference: 22
Hose
Diagram Reference: 23
Clip
Diagram Reference: 25
Clip
Diagram Reference: 26
Clip
Diagram Reference: 27
Clamp
Diagram Reference: 28
Plate, clamp
Diagram Reference: 29
Plate, clamp 2
Diagram Reference: 30
Grommet
Diagram Reference: 31
Collar
Diagram Reference: 32
Stay
Diagram Reference: 35
