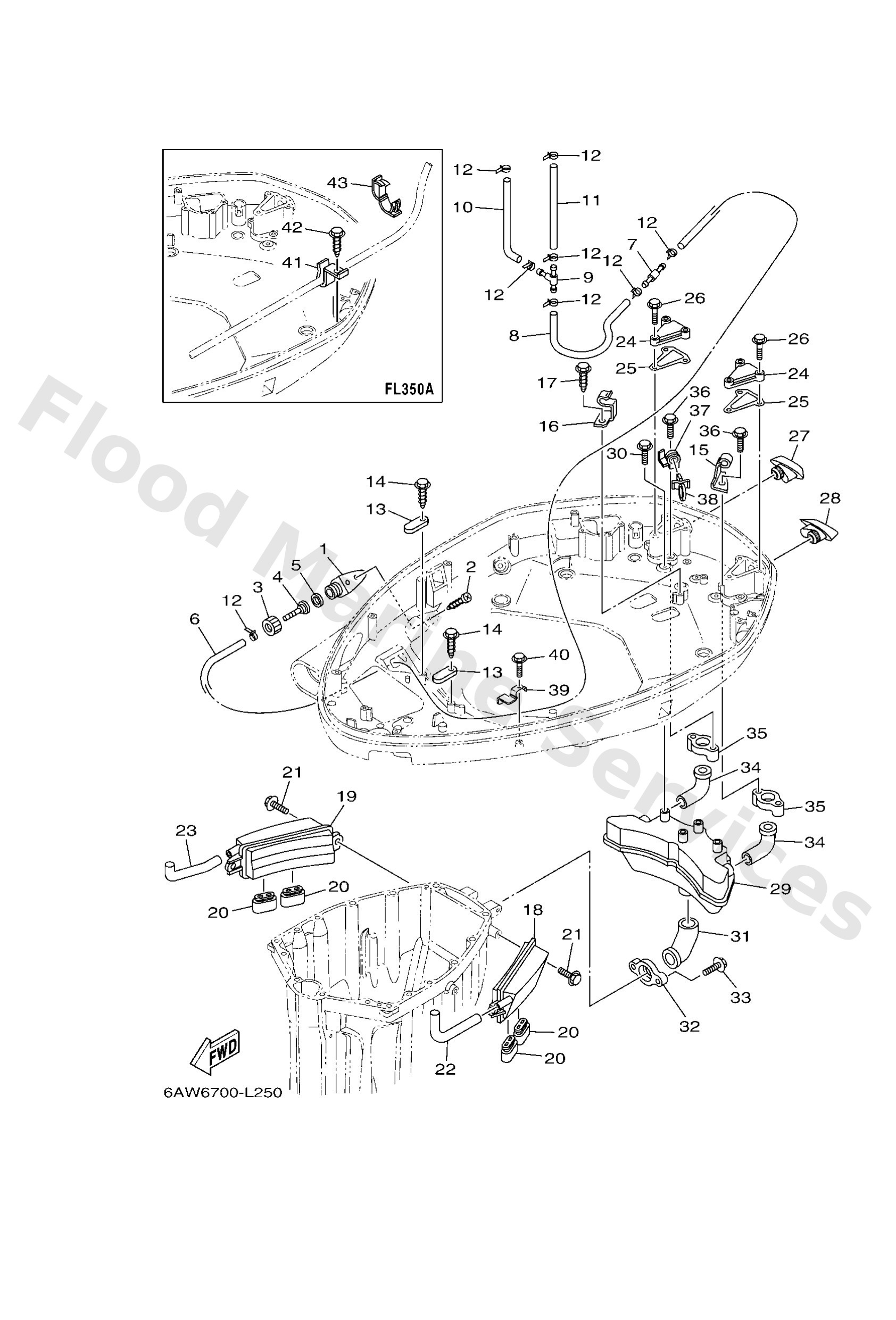

Diagram: BOTTOM COWLING 2
Parts List
Adapter
Diagram Reference: 1
Screw, tapping(6k8)
Diagram Reference: 2
Joint, hose 1
Diagram Reference: 3
Joint, hose 2
Diagram Reference: 4
Gasket, hose joint
Diagram Reference: 5
Hose
Diagram Reference: 6
Pipe
Diagram Reference: 7
Hose
Diagram Reference: 8
Joint
Diagram Reference: 9
Pipe 4
Diagram Reference: 10
Hose (l210)
Diagram Reference: 11
Clamp
Diagram Reference: 12
Plate
Diagram Reference: 13
Bolt
Diagram Reference: 14
Clamp
Diagram Reference: 15
Stay
Diagram Reference: 16
Bolt
Diagram Reference: 17
Box, drain
Diagram Reference: 18
Box, drain 2
Diagram Reference: 19
Rubber, seal 2
Diagram Reference: 20
Bolt, flange deep recess
Diagram Reference: 21
Hose, drain 1
Diagram Reference: 22
Hose, drain 2
Diagram Reference: 23
Cover, bottom
Diagram Reference: 24
Gasket 1
Diagram Reference: 25
Seal, rubber
Diagram Reference: 27
Seal
Diagram Reference: 28
Silencer assembly
Diagram Reference: 29
Bolt, flange deep recess
Diagram Reference: 30
Pipe 2
Diagram Reference: 31
Spacer
Diagram Reference: 32
Bolt, flange deep recess
Diagram Reference: 33
Pipe 3
Diagram Reference: 34
Spacer
Diagram Reference: 35
Clamp, cord
Diagram Reference: 37
Clamp
Diagram Reference: 38
Bracket
Diagram Reference: 39
Clamp, cord
Diagram Reference: 41
Clamp
Diagram Reference: 43
