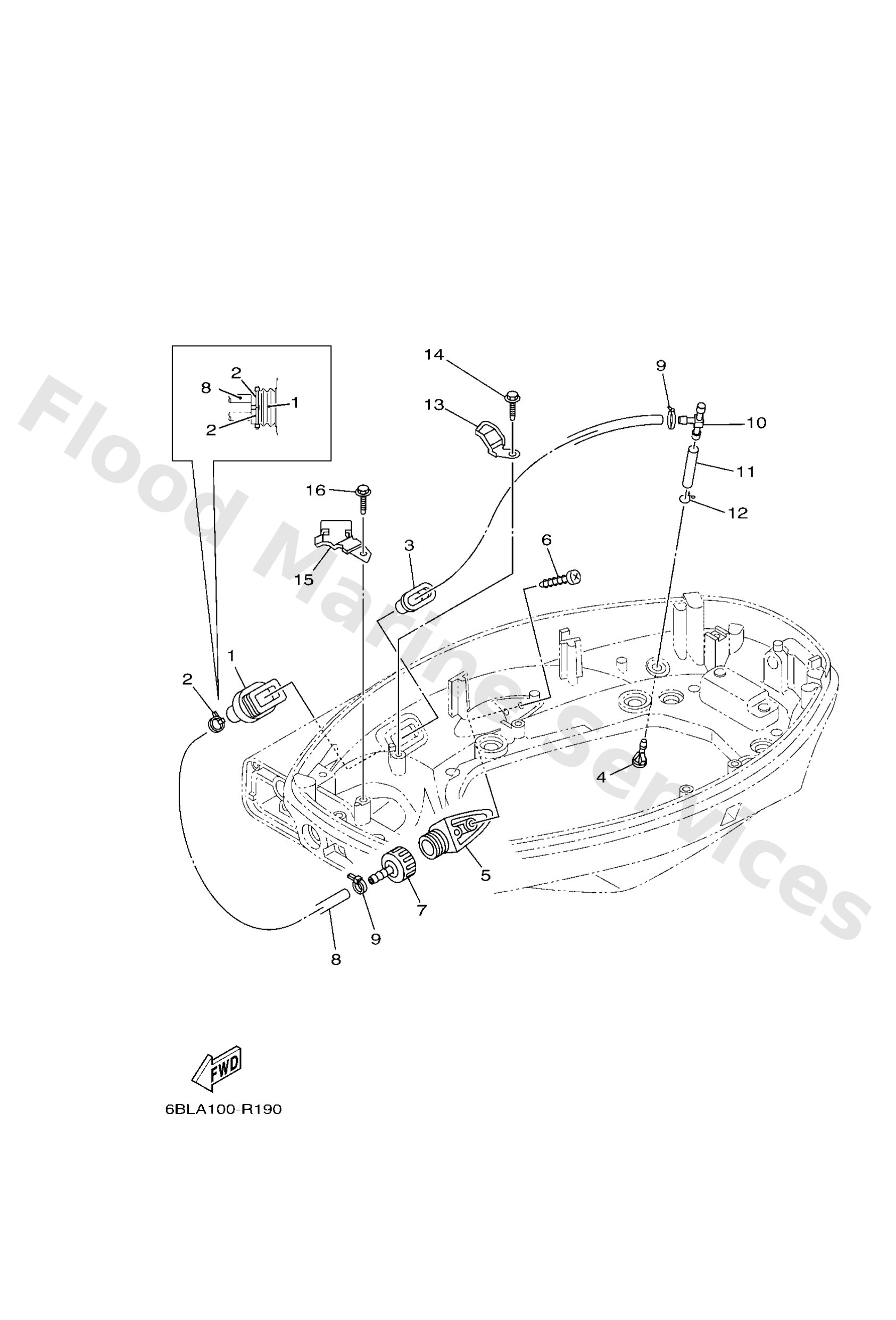

Diagram: BOTTOM COWLING 2
Parts List
Grommet
Diagram Reference: 1
Clamp
Diagram Reference: 2
Seal, cap
Diagram Reference: 3
Nipple, hose
Diagram Reference: 4
Adapter
Diagram Reference: 5
Screw, tapping(6k8)
Diagram Reference: 6
Joint assembly
Diagram Reference: 7
Hose (l800)
Diagram Reference: 8
Pipe, joint 4
Diagram Reference: 10
Hose (l180)
Diagram Reference: 11
Clip
Diagram Reference: 12
Plate
Diagram Reference: 13
Bolt
Diagram Reference: 14
Stay
Diagram Reference: 15
