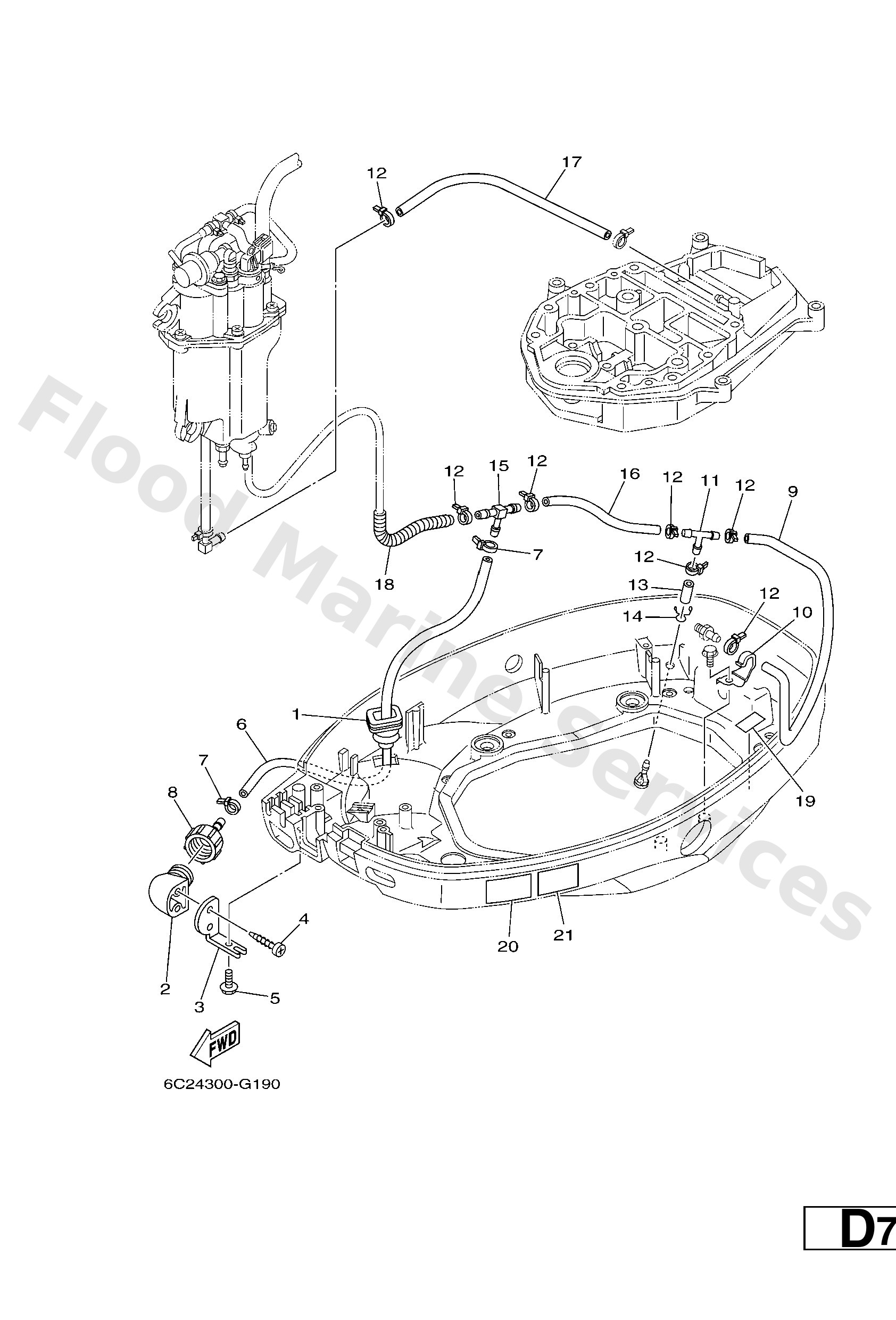

Diagram: BOTTOM COWLING 2
Parts List
Grommet
Diagram Reference: 1
Adapter
Diagram Reference: 2
Plate
Diagram Reference: 3
Screw, tapping
Diagram Reference: 4
Bolt
Diagram Reference: 5
Pipe 2
Diagram Reference: 6
Clamp
Diagram Reference: 7
Joint assembly
Diagram Reference: 8
Hose (l1500)
Diagram Reference: 9
Clamp
Diagram Reference: 10
Pipe, joint
Diagram Reference: 11
Hose (l1500)
Diagram Reference: 13
Clip
Diagram Reference: 14
Pipe, joint 4
Diagram Reference: 15
Hose (l135)
Diagram Reference: 16
Hose (l1500)
Diagram Reference: 17
Hose, with spring
Diagram Reference: 18
ラベル
Diagram Reference: 19
Label, warning (ge
Diagram Reference: 20
Label, warning (ge
Diagram Reference: 21
