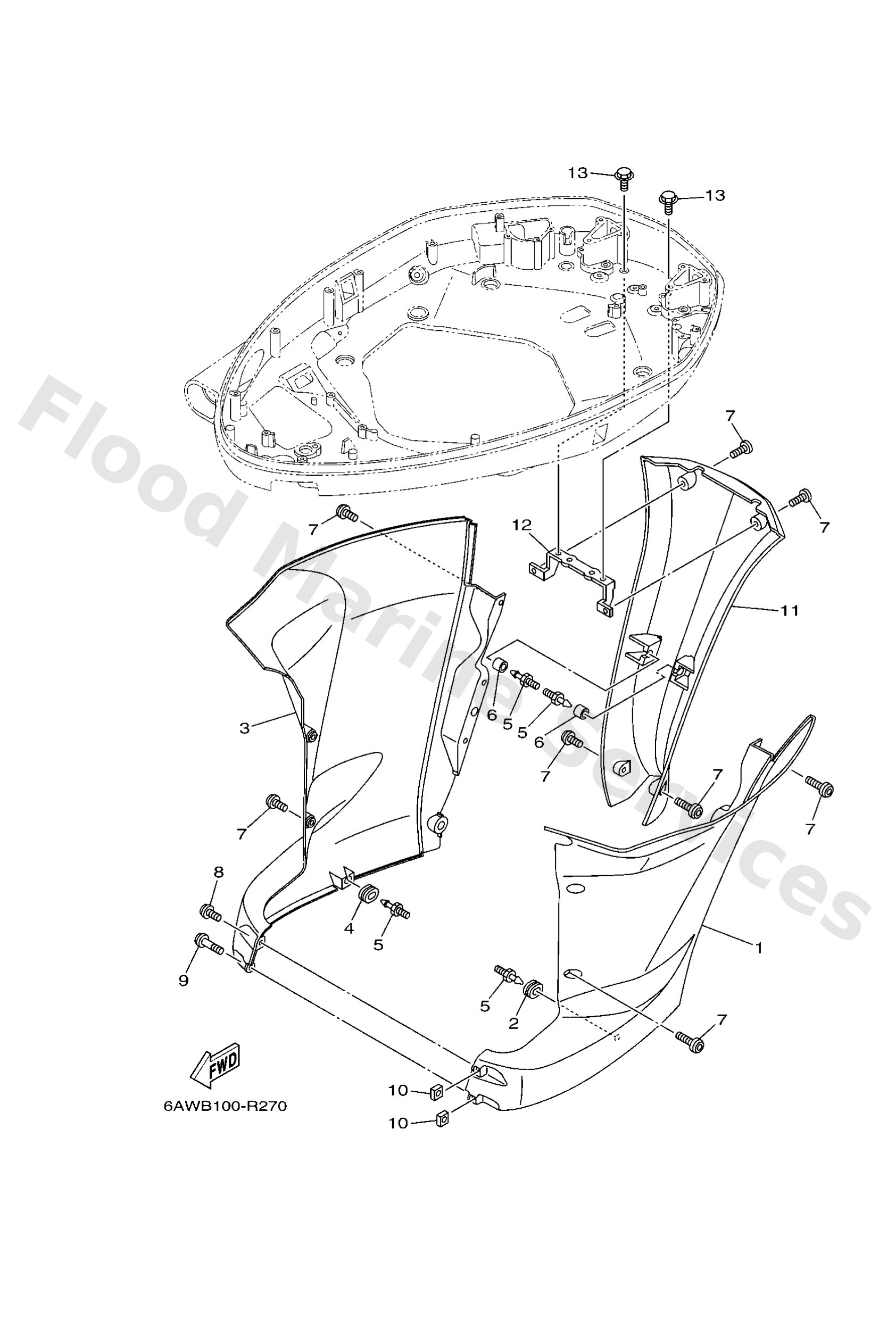

Diagram: BOTTOM COWLING 3

Diagram

Parts List

6AW42741008D
Apron
Diagram Reference: 1
Get Part
9048014M17
Grommet(6j8)
Diagram Reference: 2
Get Part
6AW42771008D
Apron
Diagram Reference: 3
Get Part
69J4277410
Stay, apron 1
Diagram Reference: 5
Get Part
9038607001
Bush
Diagram Reference: 6
Get Part
9011106144
Bolt,hex. socket button
Diagram Reference: 7
Get Part
9011106142
Bolt,hex. socket button
Diagram Reference: 9
Get Part
9017306001
Nut, square
Diagram Reference: 10
Get Part
6AW45151018D
Cover, upper casing
Diagram Reference: 11
Get Part
6AW4277500
Stay, apron 2
Diagram Reference: 12
Get Part
97E9506514
Bolt, hexagon w/w deep recess
Diagram Reference: 13
Get Part
