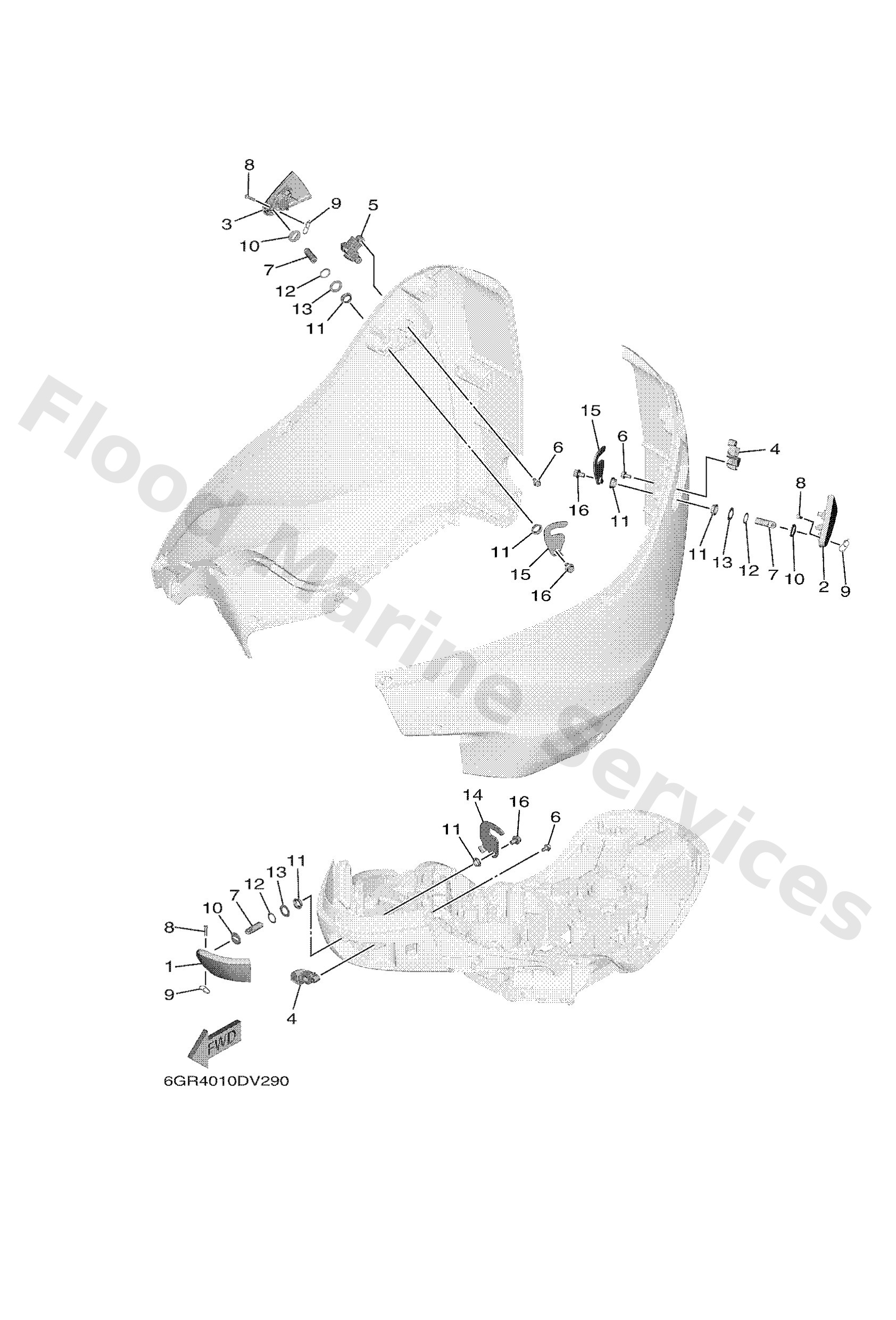

Diagram: BOTTOM COWLING 3
Parts List
Lever, clamp 1
Diagram Reference: 1
Lever, clamp 1
Diagram Reference: 1
Lever, clamp 2
Diagram Reference: 2
Lever, clamp 2
Diagram Reference: 2
Lever, clamp 3
Diagram Reference: 3
Lever, clamp 3
Diagram Reference: 3
Plate, clamp
Diagram Reference: 4
Plate, clamp 2
Diagram Reference: 5
Bolt, flange deep recess
Diagram Reference: 6
Pin, set 1
Diagram Reference: 7
Pin, clevis
Diagram Reference: 8
Pin, set 1
Diagram Reference: 9
Washer, plain
Diagram Reference: 10
Bush(6l2)
Diagram Reference: 11
Washer, wave(6l2)
Diagram Reference: 12
Washer, plate(j41)
Diagram Reference: 13
Lever, clamp 4
Diagram Reference: 14
Lever, clamp 5
Diagram Reference: 15
Bolt, flange deep recess
Diagram Reference: 16
