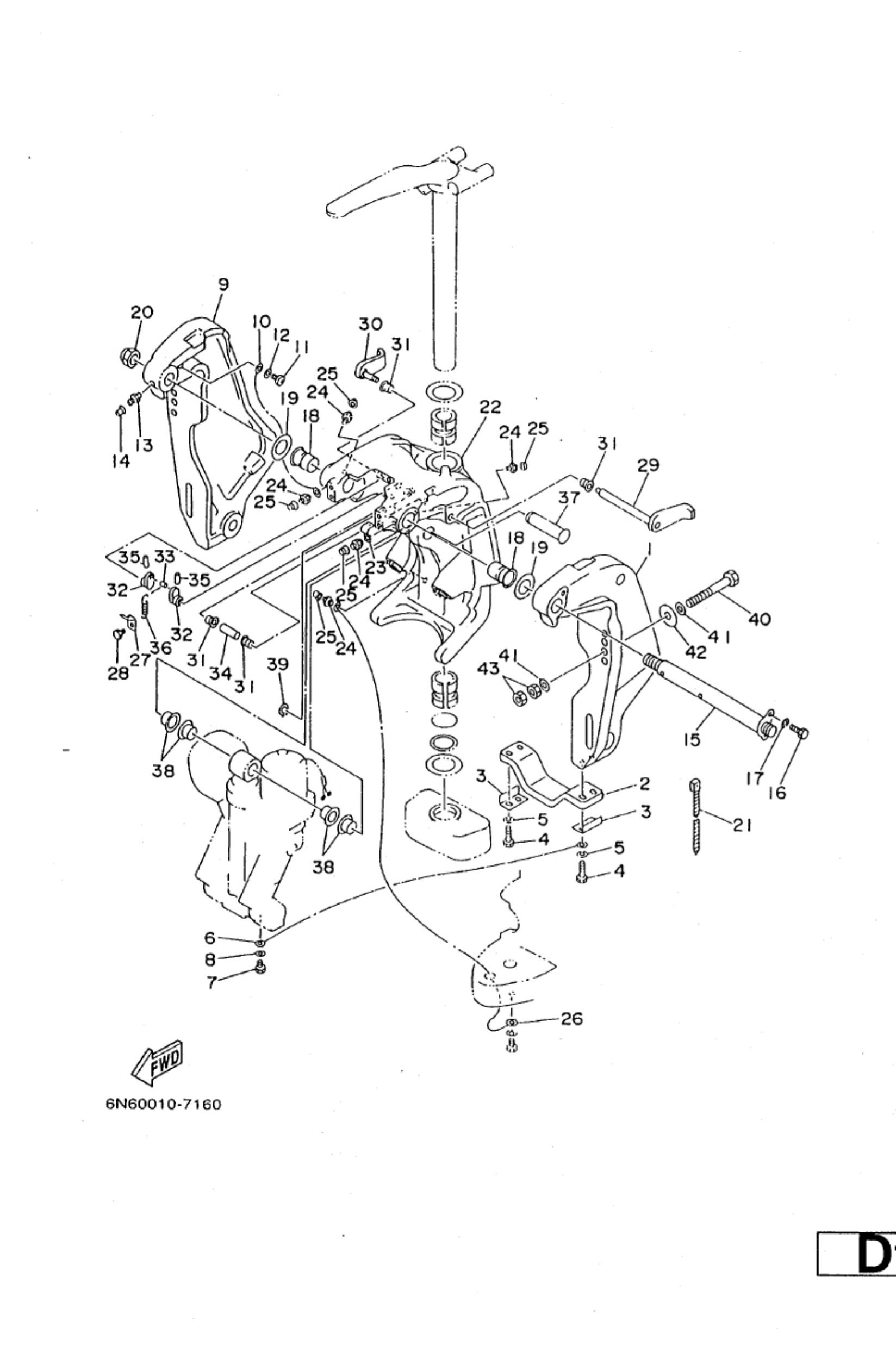

Diagram: BRACKET
Parts List
Anode
Diagram Reference: 2
Plate
Diagram Reference: 3
Bolt(jf7)
Diagram Reference: 4
Washer(6a1)
Diagram Reference: 5
Bolt
Diagram Reference: 7
Washer, plain (646)
Diagram Reference: 8
Bracket, clamp
Diagram Reference: 9
Wire, Lead 4
Diagram Reference: 10
Screw, pan head(62j)
Diagram Reference: 11
Washer, plain (646)
Diagram Reference: 12
Nipple, grease(6a1)
Diagram Reference: 13
Cap, grease nipple
Diagram Reference: 14
Bolt, Clamp Bracket
Diagram Reference: 15
Ybs67-8 washer, spring
Diagram Reference: 17
Bushing (6e5)
Diagram Reference: 18
Washer, plate (6e5)
Diagram Reference: 19
Nut, self-locking
Diagram Reference: 20
Bracket, swibel
Diagram Reference: 22
Clamp(61u)
Diagram Reference: 23
25 663-45119-00
Diagram Reference: 23
Hook, spring
Diagram Reference: 27
