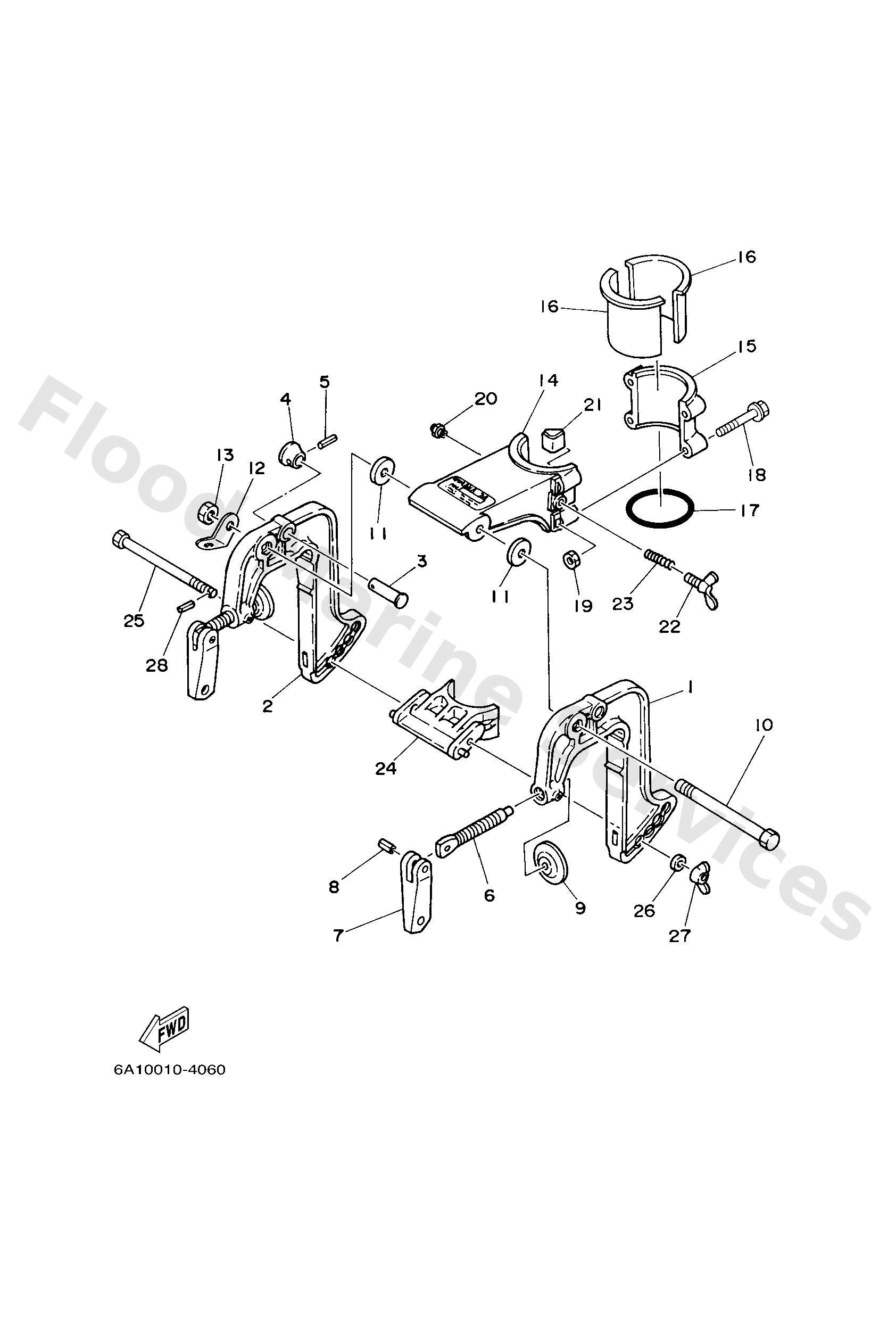

Diagram: BRACKET
Parts List
Bracket, clamp
Diagram Reference: 1
Bracket, clamp
Diagram Reference: 2
Shaft, stopper
Diagram Reference: 3
Knob, stopper
Diagram Reference: 4
Pin, spring (647)
Diagram Reference: 5
Screw, transom clamp
Diagram Reference: 6
Handle, transom clamp
Diagram Reference: 7
Pin(6a1)
Diagram Reference: 8
Pad, transom clamp
Diagram Reference: 9
Bolt 6464313100
Diagram Reference: 10
Washer 6464313202
Diagram Reference: 11
Plate, clamp bracket
Diagram Reference: 12
Nut (661)
Diagram Reference: 13
Bracket, swivel 1
Diagram Reference: 14
Bracket, swivel 2
Diagram Reference: 15
Bushing, pivot shaft
Diagram Reference: 16
O-ring
Diagram Reference: 17
Bolt, with washer
Diagram Reference: 18
Nut(661)
Diagram Reference: 19
Nipple, grease(6a1)
Diagram Reference: 20
Piece, friction
Diagram Reference: 21
Bolt, wing (646)
Diagram Reference: 22
Spring 6464252401
Diagram Reference: 23
Receiver, thrust
Diagram Reference: 24
Bolt, receiver
Diagram Reference: 25
Washer 6464337400
Diagram Reference: 26
Nut, Wing
Diagram Reference: 27
Pin, spring (647)
Diagram Reference: 28
