Yamaha Outboard Parts - BRACKET - F2.5AMH (2003) | Flood Marine

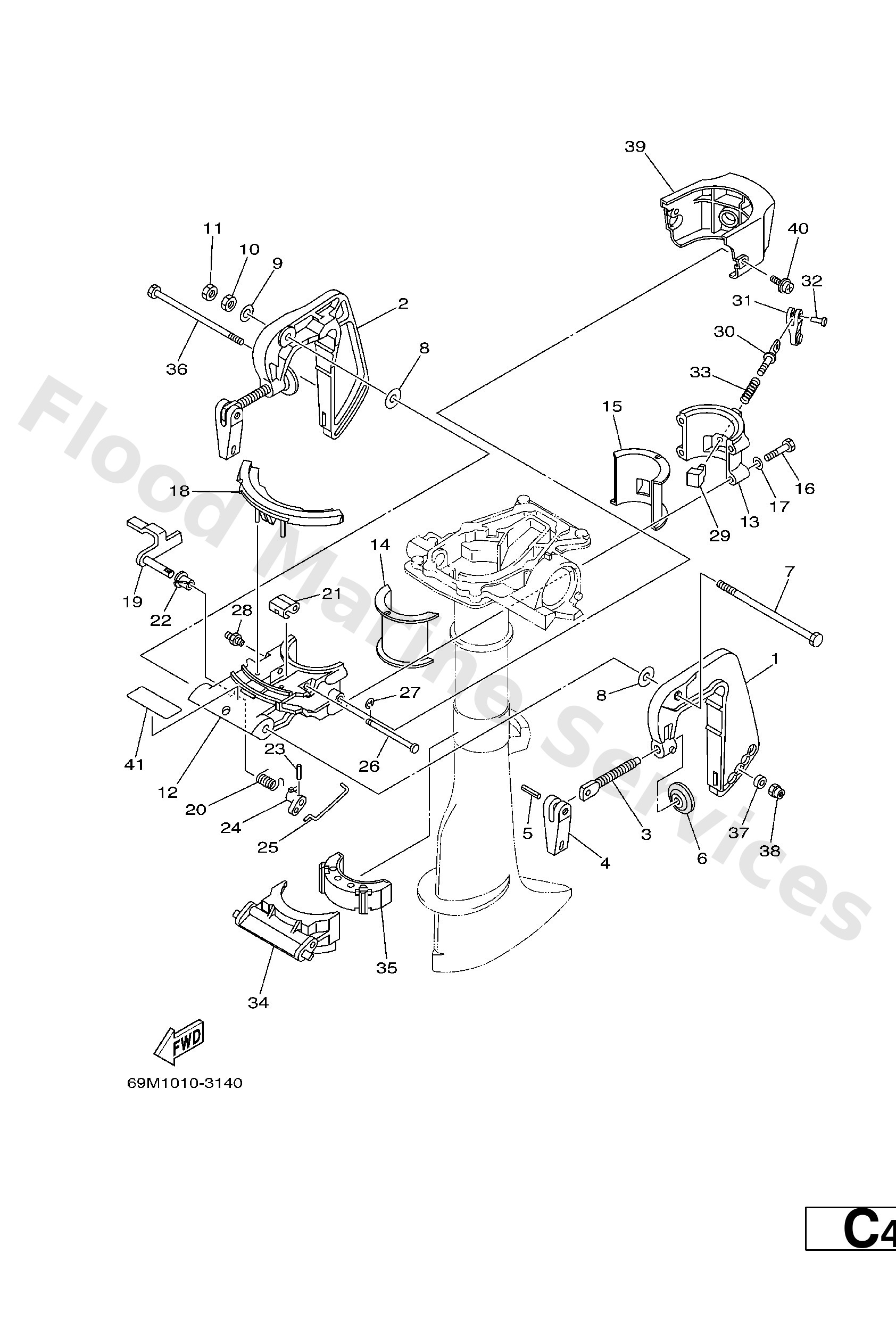

Diagram: BRACKET

Diagram

Parts List

Reference
Description
Price


3
6E0−43116−01
Screw, transom clamp
Loading…

↗
4
69M−G3118−00
Handle transom clamp
Loading…

↗
5
90243−04M01
Pin(6a1)
Loading…

↗
6
620−43114−00
Pad, transom clamp
Loading…

↗
7
90101−08M07
Bolt(6e0)
Loading…

↗
8
90202−08022
Washer 6464313202
Loading…

↗
9
92990−08200
Ybs66-8 washer, plain
Loading…

↗
10
95380−08600
Nut (661)
Loading…

↗
11
95380−08700
Nut(661)
Loading…

↗
14
69M−G2537−00
Bushing,pivot shaft 1
Loading…

↗
15
69M−G2538−00
Bushing,pivot shaft 2
Loading…

↗
16
97075−06030
Bolt(jf7)
Loading…

↗
17
92995−06600
Washer, plain (646)
Loading…

↗
18
69M−43679−00
Cover
Loading…

↗
19
69M−43180−00
Tilt stop lever assembly
Loading…

↗
20
69M−G3188−00
Spring
Loading…

↗
21
69M−G3186−00
Lever
Loading…

↗
22
90386−08032
Bushing (650)
Loading…

↗
23
91690−20010
Pin, spring
Loading…

↗
24
69M−G3185−00
Lever, tilt stop 2
Loading…

↗
25
69M−G3164−00
Rod, tilt lock
Loading…

↗
26
69M−G3166−00
Pin
Loading…

↗
27
99080−04600
Circlip (eu0)
Loading…

↗
28
93700−06M03
Nipple, grease(6a1)
Loading…

↗
29
69M−42528−00
Plate, friction
Loading…

↗
30
69M−42529−00
Screw, friction pi
Loading…

↗
31
68D−G2561−01
Knob, steering loc
Loading…

↗
32
90266−04M05
Rivet(6l5)
Loading…

↗
33
90501−12803
Spring, compression
Loading…

↗
34
69M−G3351−00
Receiver,thrust
Loading…

↗
35
69M−44557−00
Mount damper, lower front
Loading…

↗
36
90101−06030
Bolt
Loading…

↗
37
90201−06040
Washer 6464337400
Loading…

↗
38
95780−06300
Nut, nylon (6g1)
Loading…

↗
39
69M−G3318−00
Cover
Loading…

↗
40
90159−06M11
Screw, with washer(6l2)
Loading…

↗
41
69M−G3691−00
Indicator, tilt
Loading…

↗
