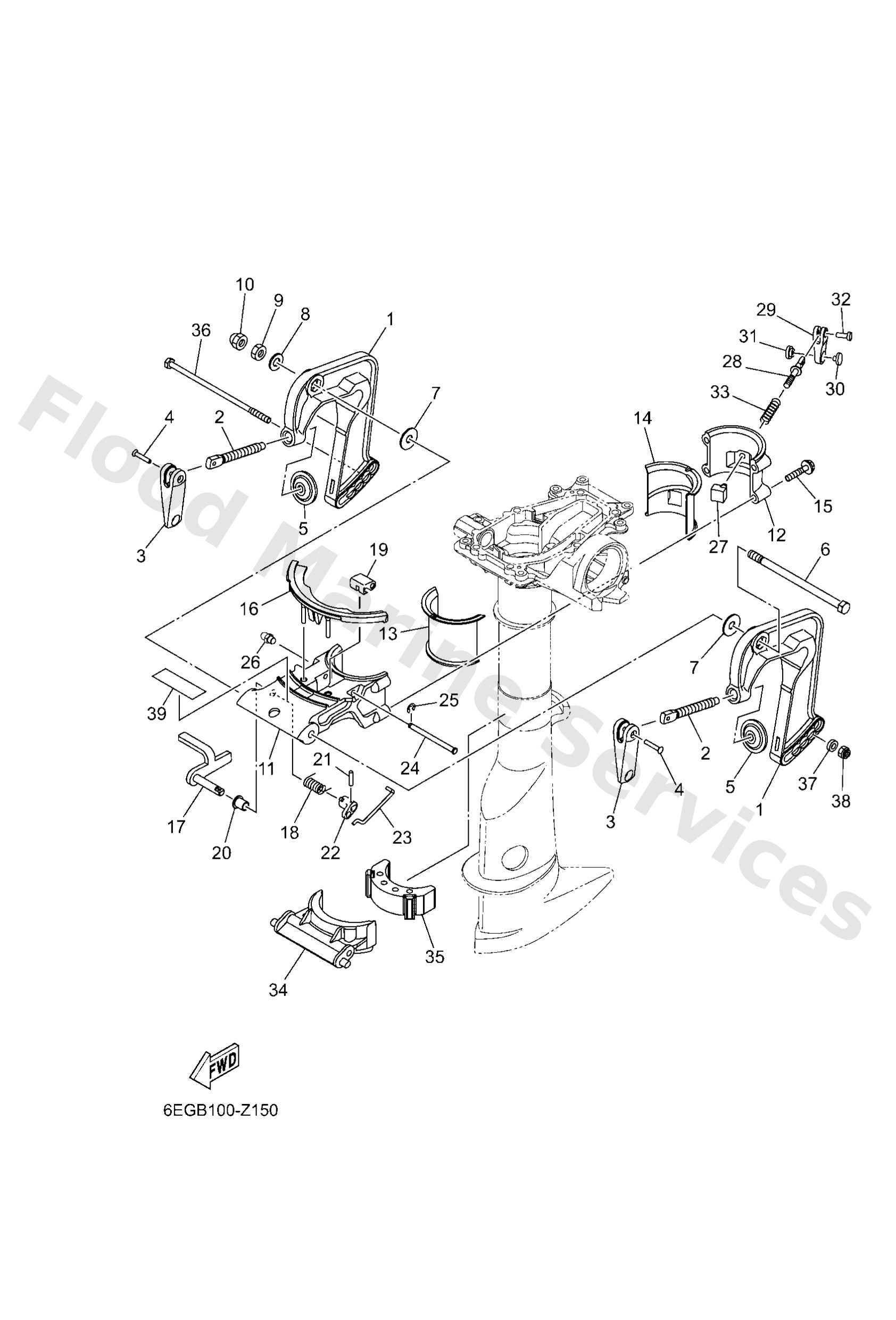

Diagram: BRACKET

Diagram

Parts List

6EG43111008D
Bracket, Clamp 1
Diagram Reference: 1
Get Part
6E04311601
Screw, transom clamp
Diagram Reference: 2
Get Part
6E04311801
Handle, transom clamp
Diagram Reference: 3
Get Part
9024304M01
Pin(6a1)
Diagram Reference: 4
Get Part
6484311401
Pad, transom clamp
Diagram Reference: 5
Get Part
9010108M07
Bolt(6e0)
Diagram Reference: 6
Get Part
9020208022
Washer 6464313202
Diagram Reference: 7
Get Part
9299008200
Ybs66-8 washer, plain
Diagram Reference: 8
Get Part
9538008600
Nut (661)
Diagram Reference: 9
Get Part
9538008800
Nut crown (2g2)
Diagram Reference: 10
Get Part
6EG43311008D
Bracket, Swivel 1
Diagram Reference: 11
Get Part
6EG43312008D
Bracket, Swivel 2
Diagram Reference: 12
Get Part
6EG4253700
Bushing, pivot shaft
Diagram Reference: 13
Get Part
6EG4253800
Bushing, pivot shaft
Diagram Reference: 14
Get Part
97E7506530
Bolt, hexagon w/w deep recess
Diagram Reference: 15
Get Part
6EG4367900
Cover
Diagram Reference: 16
Get Part
6EG4318000
Tilt stop lever assembly
Diagram Reference: 17
Get Part
6EG4318800
Spring
Diagram Reference: 18
Get Part
6EG4318600
Lever
Diagram Reference: 19
Get Part
9038608032
Bushing (650)
Diagram Reference: 20
Get Part
9169020010
Pin, spring
Diagram Reference: 21
Get Part
6EG4318500
Lever, tilt stop 2
Diagram Reference: 22
Get Part
6EG4316400
Rod, tilt lock
Diagram Reference: 23
Get Part
6EG4316600
Pin
Diagram Reference: 24
Get Part
9908004600
Circlip (eu0)
Diagram Reference: 25
Get Part
9370006004
Nipple, grease(6a1)
Diagram Reference: 26
Get Part
6EG4252800
Plate, Friction
Diagram Reference: 27
Get Part
6EG4252900
Screw, friction piece
Diagram Reference: 28
Get Part
6L54256100
Knob, steering lock
Diagram Reference: 29
Get Part
6L54419600
Indicator 3
Diagram Reference: 30
Get Part
6L54419700
Indicator 4
Diagram Reference: 31
Get Part
9026604M05
Rivet(6l5)
Diagram Reference: 32
Get Part
90501121A6
Spring, compression
Diagram Reference: 33
Get Part
6EG4335100
Receiver, thrust
Diagram Reference: 34
Get Part
69M4455700
Mount damper, lower front
Diagram Reference: 35
Get Part
9010106062
Bolt
Diagram Reference: 36
Get Part
9020106040
Washer 6464337400
Diagram Reference: 37
Get Part
9578006300
Nut, nylon (6g1)
Diagram Reference: 38
Get Part
6EG4369100
Indicator, Tilt
Diagram Reference: 39
