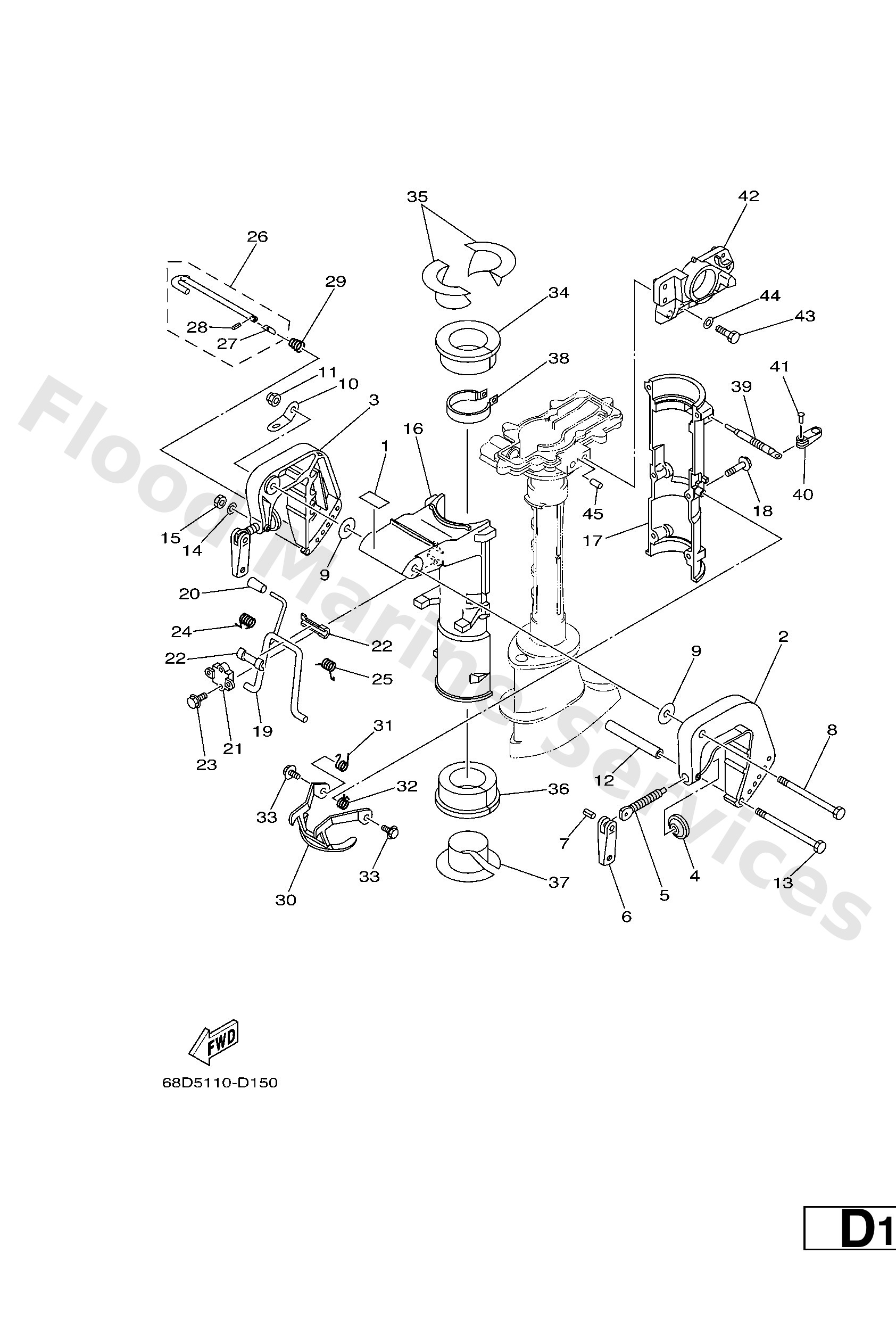

Diagram: BRACKET
Parts List
Emblem, Fuel Cock
Diagram Reference: 1
Bracket, clamp 1
Diagram Reference: 2
Bracket, clamp 2
Diagram Reference: 3
Pad, transom clamp
Diagram Reference: 4
Screw, transom clamp
Diagram Reference: 5
Handle, transom cl
Diagram Reference: 6
Pin(6a1)
Diagram Reference: 7
Bolt(6e0)
Diagram Reference: 8
Washer, plate
Diagram Reference: 9
Plate, clamp bracket
Diagram Reference: 10
Nut, nylon (6j8)
Diagram Reference: 11
Collar
Diagram Reference: 12
Bolt, hexagon (624)
Diagram Reference: 13
Washer, plain (646)
Diagram Reference: 14
Nut(661)
Diagram Reference: 15
Bracket, swivel 1
Diagram Reference: 16
Bracket, swivel 2
Diagram Reference: 17
Bolt, flange(4nx)
Diagram Reference: 18
Lever, tilt stop 1
Diagram Reference: 19
Knob, tilt
Diagram Reference: 20
Bracket, swivel 3
Diagram Reference: 21
Bushing
Diagram Reference: 22
Bolt, flange(jk3)
Diagram Reference: 23
Spring 6474319800
Diagram Reference: 24
Spring 6474318800
Diagram Reference: 25
Tilt rod assembly
Diagram Reference: 26
Plate, tilt lock
Diagram Reference: 27
Pin. spring(656)
Diagram Reference: 28
Spring, conical(6e0)
Diagram Reference: 29
Plate, tilt lock
Diagram Reference: 30
Spring, torsion (6e0)
Diagram Reference: 31
Spring, torsion (6e0)
Diagram Reference: 32
Bolt, flange(7ht)
Diagram Reference: 33
Bushing, pivot sha
Diagram Reference: 34
Bushing, pivot sha
Diagram Reference: 35
Bushing, Pivot Shaft
Diagram Reference: 36
Bush, pivot shaft 4
Diagram Reference: 37
Plate, friction
Diagram Reference: 38
Screw, friction piece
Diagram Reference: 39
Knob, steering loc
Diagram Reference: 40
Rivet(6l5)
Diagram Reference: 41
Bracket, Steering
Diagram Reference: 42
Bolt, hexagon (fj1)
Diagram Reference: 43
Washer, plain (663)
Diagram Reference: 44
Pin, dowel (688)
Diagram Reference: 45
