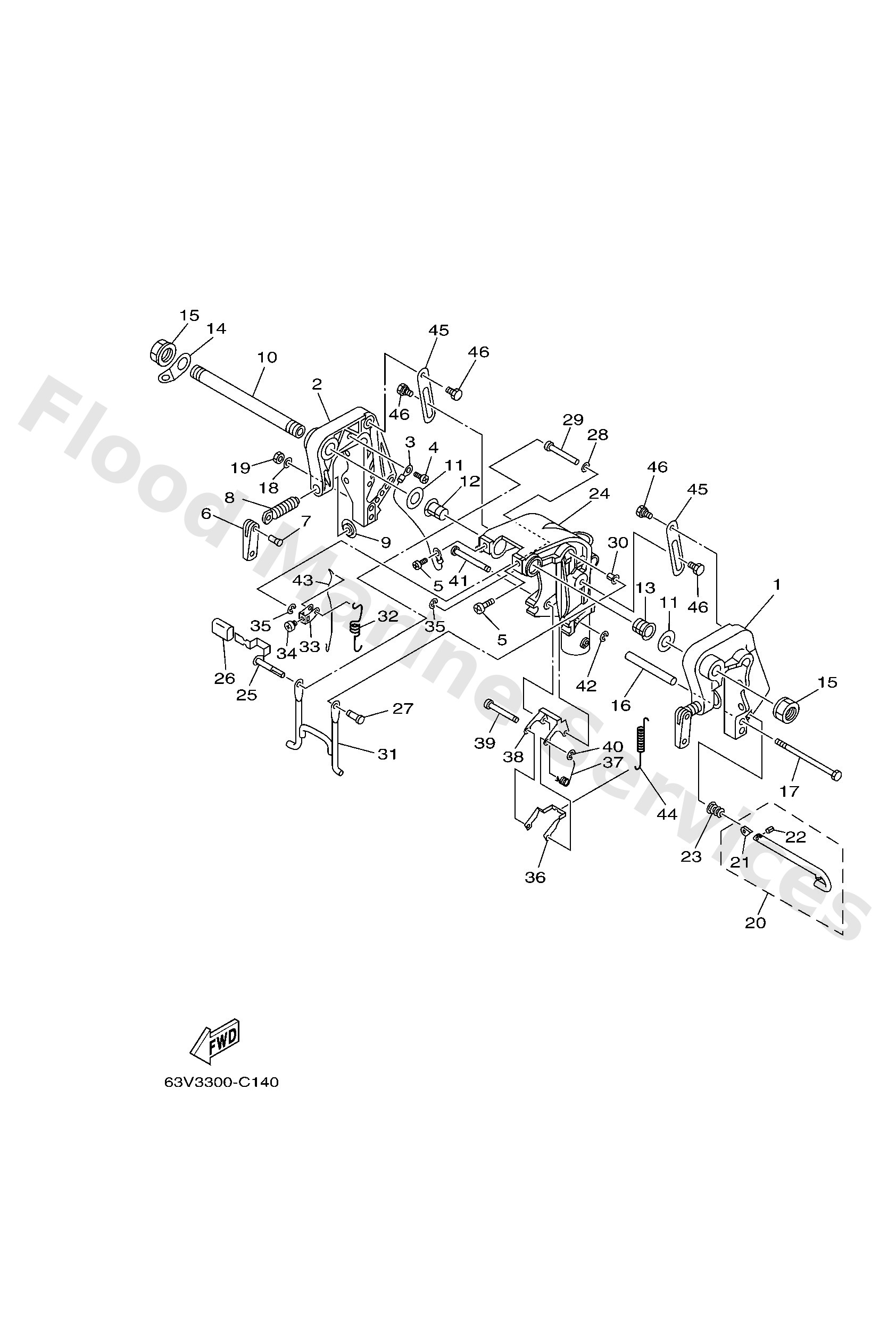

Diagram: BRACKET 1
Parts List
Bracket, clamp 1
Diagram Reference: 1
Bracket, clamp 2
Diagram Reference: 2
Wire, lead 4
Diagram Reference: 3
Screw, pan head(6a3)
Diagram Reference: 4
Rivet
Diagram Reference: 5
Handle, transom clamp
Diagram Reference: 6
Pin(6a1)
Diagram Reference: 7
Screw, transom clamp
Diagram Reference: 8
Pad, transom clamp
Diagram Reference: 9
Bolt, clamp bracket
Diagram Reference: 10
Washer, plate(63v)
Diagram Reference: 11
Bush(63v)
Diagram Reference: 12
Plate, clamp bracket
Diagram Reference: 14
Nut, self-locking
Diagram Reference: 15
Collar(6h6)
Diagram Reference: 16
Bolt, hexagon (682)
Diagram Reference: 17
Washer, plain (646)
Diagram Reference: 18
Nut
Diagram Reference: 19
Tilt rod assembly
Diagram Reference: 20
Plate, tilt lock
Diagram Reference: 21
Pin. spring(656)
Diagram Reference: 22
Spring, conical(6k3)
Diagram Reference: 23
Bracket, swivel 1
Diagram Reference: 24
Tilt lever assembly
Diagram Reference: 25
Cover
Diagram Reference: 26
Shaft, stopper
Diagram Reference: 27
Washer, plate
Diagram Reference: 28
Collar
Diagram Reference: 29
Bush(63v)
Diagram Reference: 30
Receiver assembly
Diagram Reference: 31
Spring, tension(63v)
Diagram Reference: 32
Lever, tilt
Diagram Reference: 33
Screw, pan head
Diagram Reference: 34
Circlip(22k)
Diagram Reference: 35
Plate, tilt lock
Diagram Reference: 36
Spring, torsion
Diagram Reference: 37
Plate, tilt lock
Diagram Reference: 38
Shaft, tilt lock
Diagram Reference: 39
Circlip (eu0)
Diagram Reference: 40
Shaft, reverse lock
Diagram Reference: 41
Rod, tilt lock
Diagram Reference: 43
Spring, reverse lock 1
Diagram Reference: 44
Lever, tilt stop 1
Diagram Reference: 45
Bolt
Diagram Reference: 46
