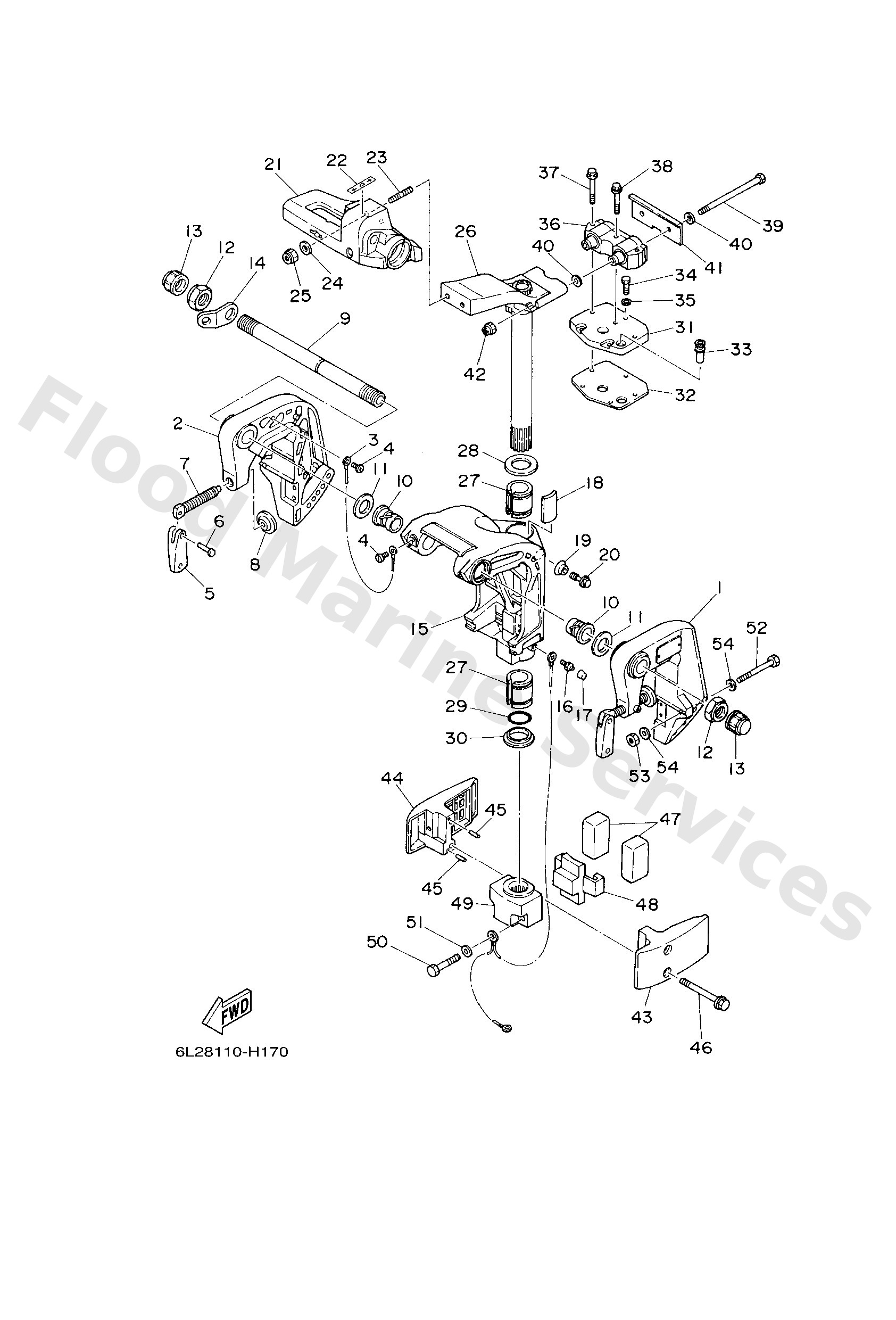

Parts List
Bracket, clamp 1
Diagram Reference: 1
Bracket, clamp 2
Diagram Reference: 2
Wire, lead 5
Diagram Reference: 3
Screw, pan head(6a3)
Diagram Reference: 4
Handle, transom clamp
Diagram Reference: 5
Pin(6a1)
Diagram Reference: 6
Screw, transom clamp
Diagram Reference: 7
Pad, transom clamp
Diagram Reference: 8
Bolt, clamp bracket
Diagram Reference: 9
Bush(6a9)
Diagram Reference: 10
Washer, plate(64j)
Diagram Reference: 11
Nut, self-locking
Diagram Reference: 12
Cap, clamp bracket
Diagram Reference: 13
Plate, clamp bracket
Diagram Reference: 14
Bracket, swivel 1
Diagram Reference: 15
Nipple, grease(6a1)
Diagram Reference: 16
Cap, grease nipple
Diagram Reference: 17
Piece, friction
Diagram Reference: 18
Seal, damper
Diagram Reference: 19
Bolt (689)
Diagram Reference: 20
Bracket
Diagram Reference: 21
Indicator, shift
Diagram Reference: 22
Bolt, stud
Diagram Reference: 23
Washer, plate
Diagram Reference: 24
Nut, self-locking
Diagram Reference: 25
Steering bracket assembly
Diagram Reference: 26
Bush(6l2)
Diagram Reference: 27
Washer, plate(6h1)
Diagram Reference: 28
O-ring (j10)
Diagram Reference: 29
Bush(6j8)
Diagram Reference: 30
Cover, upper mount
Diagram Reference: 31
Gasket, upper casing
Diagram Reference: 32
Damper, water seal 1
Diagram Reference: 33
Bolt(7u8)
Diagram Reference: 34
Washer, plain (646)
Diagram Reference: 35
Mount damper, upper side
Diagram Reference: 36
Bolt, with washer(6l2)
Diagram Reference: 37
Bolt, with washer(6l2)
Diagram Reference: 38
Bolt(6l2)
Diagram Reference: 39
Washer, plate(6l2)
Diagram Reference: 40
Plate
Diagram Reference: 41
Nut, nylon (6j8)
Diagram Reference: 42
Housing, lower mount rubber 1
Diagram Reference: 43
Housing, lower mount rubber 2
Diagram Reference: 44
Pin, dowel (688)
Diagram Reference: 45
Bolt, with washer
Diagram Reference: 46
Mount damper, lower side
Diagram Reference: 47
Mount damper, lower front
Diagram Reference: 48
Cover, lower mount
Diagram Reference: 49
Bolt, hexagon
Diagram Reference: 50
Washer, plain (663)
Diagram Reference: 51
Bolt, hexagon
Diagram Reference: 52
Nut (661)
Diagram Reference: 53
Washer, plain (663)
Diagram Reference: 54
