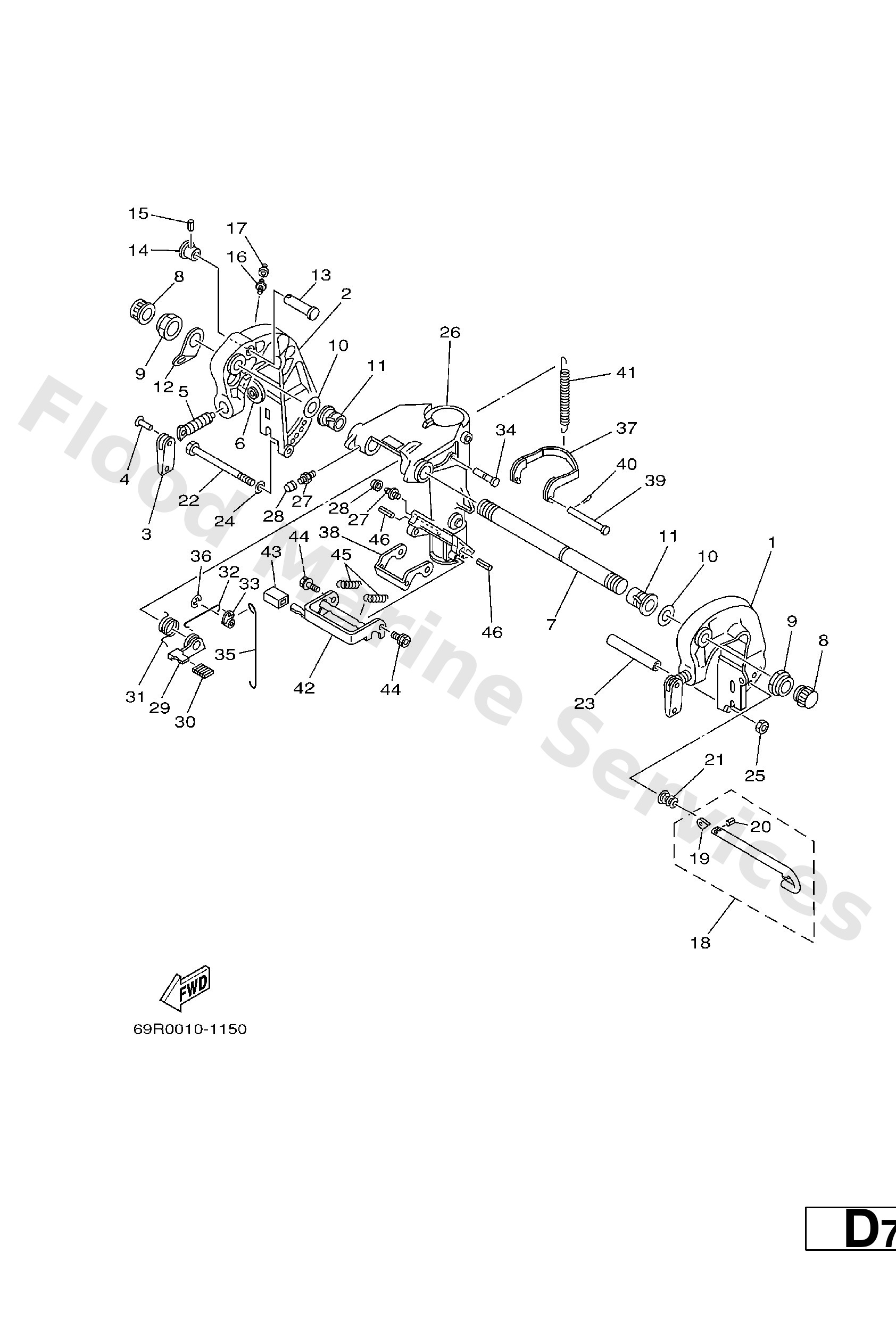

Diagram: BRACKET 1

Diagram

Parts List

689--43111--03--4D
Bracket, clamp 1
Diagram Reference: 1
Get Part
689--43112--02--4D
Bracket, clamp 2
Diagram Reference: 2
Get Part
6E0--43118--01
Handle, transom clamp
Diagram Reference: 3
Get Part
90243--04M01
Pin(6a1)
Diagram Reference: 4
Get Part
90149--14030
Screw, transom clamp
Diagram Reference: 5
Get Part
648--43114--01
Pad, transom clamp
Diagram Reference: 6
Get Part
6J8--43131--01
Bolt, clamp bracket
Diagram Reference: 7
Get Part
6G5--43145--01
Cap, clamp bracket
Diagram Reference: 8
Get Part
90185--22043
Nut, self-locking
Diagram Reference: 9
Get Part
90201--22M03
Washer, plate(64j)
Diagram Reference: 10
Get Part
90386--22M67
Bush(6a9)
Diagram Reference: 11
Get Part
6J8--43113--01
Plate, clamp bracket
Diagram Reference: 12
Get Part
689--43191--00
Shaft, stopper
Diagram Reference: 13
Get Part
689--43192--01
Knob, stopper
Diagram Reference: 14
Get Part
91690--30016
Pin, spring
Diagram Reference: 15
Get Part
93700--06M03
Nipple, grease(6a1)
Diagram Reference: 16
Get Part
663--45119--00 (AP)
Cap, grease nipple
Diagram Reference: 17
Get Part
689--43160--00
Tilt rod assembly
Diagram Reference: 18
Get Part
689--43165--00
Plate, tilt lock
Diagram Reference: 19
Get Part
91690--30008
Pin. spring(656)
Diagram Reference: 20
Get Part
90502--10M07
Spring, conical(6k3)
Diagram Reference: 21
Get Part
90101--08339
Bolt, hexagon (656)
Diagram Reference: 22
Get Part
90387--08M03
Collar
Diagram Reference: 23
Get Part
92995--08600
Washer, plain (663)
Diagram Reference: 24
Get Part
95380--08600
Nut (661)
Diagram Reference: 25
Get Part
689--43311--03--4D
Bracket, swivel 1
Diagram Reference: 26
Get Part
689--43631--00
Lever, tilt 1
Diagram Reference: 29
Get Part
689--43633--00
Cover, tilt lever
Diagram Reference: 30
Get Part
689--43643--00
Spring, torsion
Diagram Reference: 31
Get Part
689--43616--00
Rod, tilt lock 1
Diagram Reference: 32
Get Part
648--43642--00
Lever,tilt 2
Diagram Reference: 33
Get Part
90249--06M22
Pin(6a9)
Diagram Reference: 34
Get Part
648--43617--00
Rod, tilt lock 2
Diagram Reference: 35
Get Part
99080--05600
Circlip(22k)
Diagram Reference: 36
Get Part
689--43614--01
Plate, tilt lock
Diagram Reference: 37
Get Part
648--43615--00
Plate, tilt lock 2
Diagram Reference: 38
Get Part
90240--05047
Pin with hole(655)
Diagram Reference: 39
Get Part
91490--16010
Pin, cotter
Diagram Reference: 40
Get Part
90506--30M27
Spring, tension(6a4)
Diagram Reference: 41
Get Part
689--43681--01 (FOR VOLGA)
Lever, shallow water drive 1
Diagram Reference: 42
Get Part
682--43318--01 (FOR VOLGA)
Cover
Diagram Reference: 43
Get Part
90109--06M18 (FOR VOLGA)
Bolt (689)
Diagram Reference: 44
Get Part
90506--16M17 (FOR VOLGA)
Spring, tension (689)
Diagram Reference: 45
Get Part
91690--40035 (FOR VOLGA)
Pin, spring (689)
Diagram Reference: 46
Get Part
