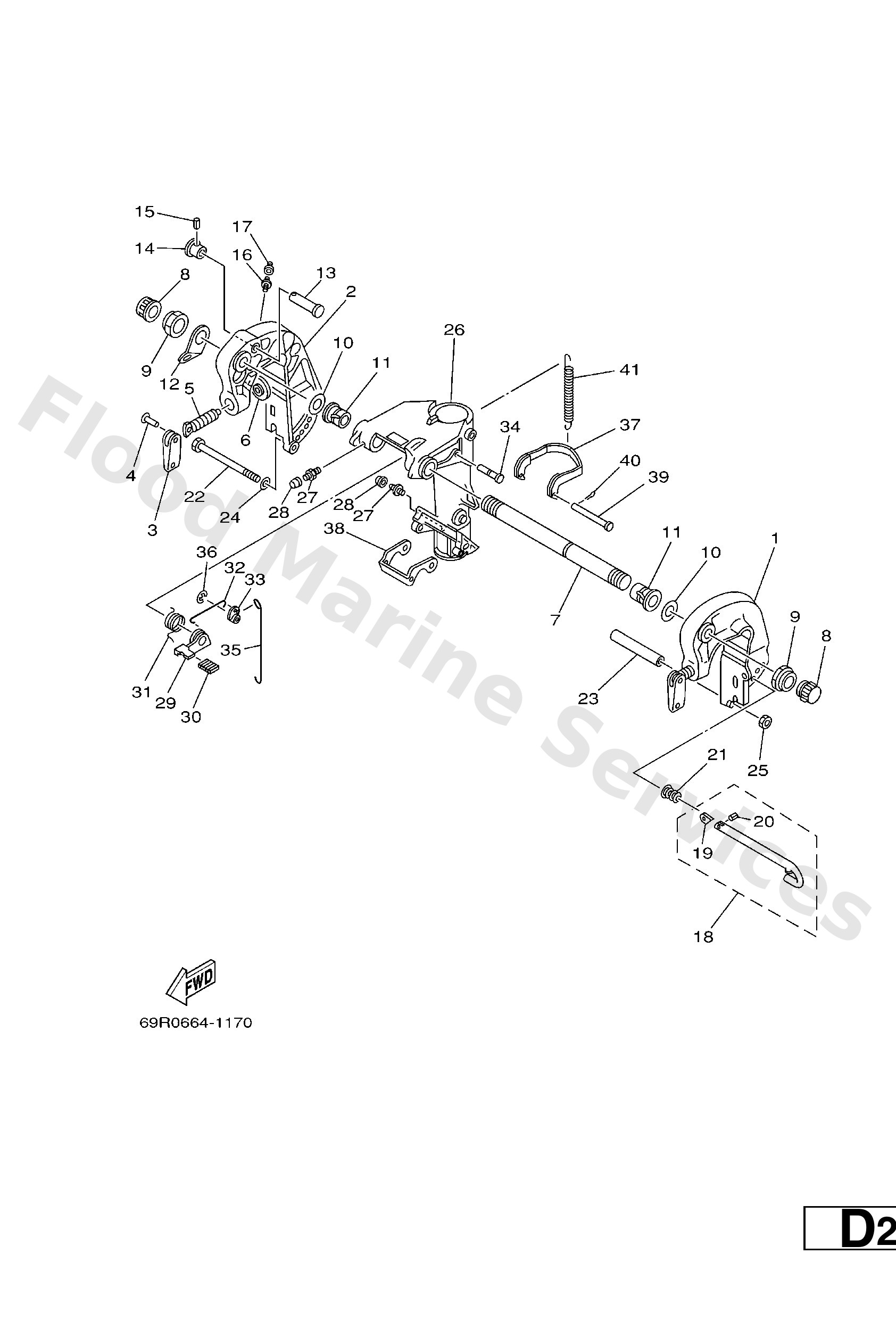

Diagram: BRACKET 1
Parts List
Bracket, clamp 1
Diagram Reference: 1
Bracket, clamp 2
Diagram Reference: 2
Handle, transom clamp
Diagram Reference: 3
Pin(6a1)
Diagram Reference: 4
Screw, transom clamp
Diagram Reference: 5
Pad, transom clamp
Diagram Reference: 6
Bolt, clamp bracket
Diagram Reference: 7
Cap, clamp bracket
Diagram Reference: 8
Nut, self-locking
Diagram Reference: 9
Washer, plate(64j)
Diagram Reference: 10
Bush(6a9)
Diagram Reference: 11
Plate, clamp bracket
Diagram Reference: 12
Shaft, stopper
Diagram Reference: 13
Knob, stopper
Diagram Reference: 14
Pin, spring
Diagram Reference: 15
Nipple, grease(6a1)
Diagram Reference: 16
Cap, grease nipple
Diagram Reference: 17
Tilt rod assembly
Diagram Reference: 18
Plate, tilt lock
Diagram Reference: 19
Pin. spring(656)
Diagram Reference: 20
Spring, conical(6k3)
Diagram Reference: 21
Bolt, hexagon (656)
Diagram Reference: 22
Collar
Diagram Reference: 23
Washer, plain (663)
Diagram Reference: 24
Nut (661)
Diagram Reference: 25
Bracket, swivel 1
Diagram Reference: 26
Lever, tilt 1
Diagram Reference: 29
Cover, tilt lever
Diagram Reference: 30
Spring, torsion
Diagram Reference: 31
Rod, tilt lock 1
Diagram Reference: 32
Lever,tilt 2
Diagram Reference: 33
Pin(6a9)
Diagram Reference: 34
Rod, tilt lock 2
Diagram Reference: 35
Circlip(22k)
Diagram Reference: 36
Plate, tilt lock
Diagram Reference: 37
Plate, tilt lock 2
Diagram Reference: 38
Pin with hole(655)
Diagram Reference: 39
Pin, cotter
Diagram Reference: 40
Spring, tension(6a4)
Diagram Reference: 41
