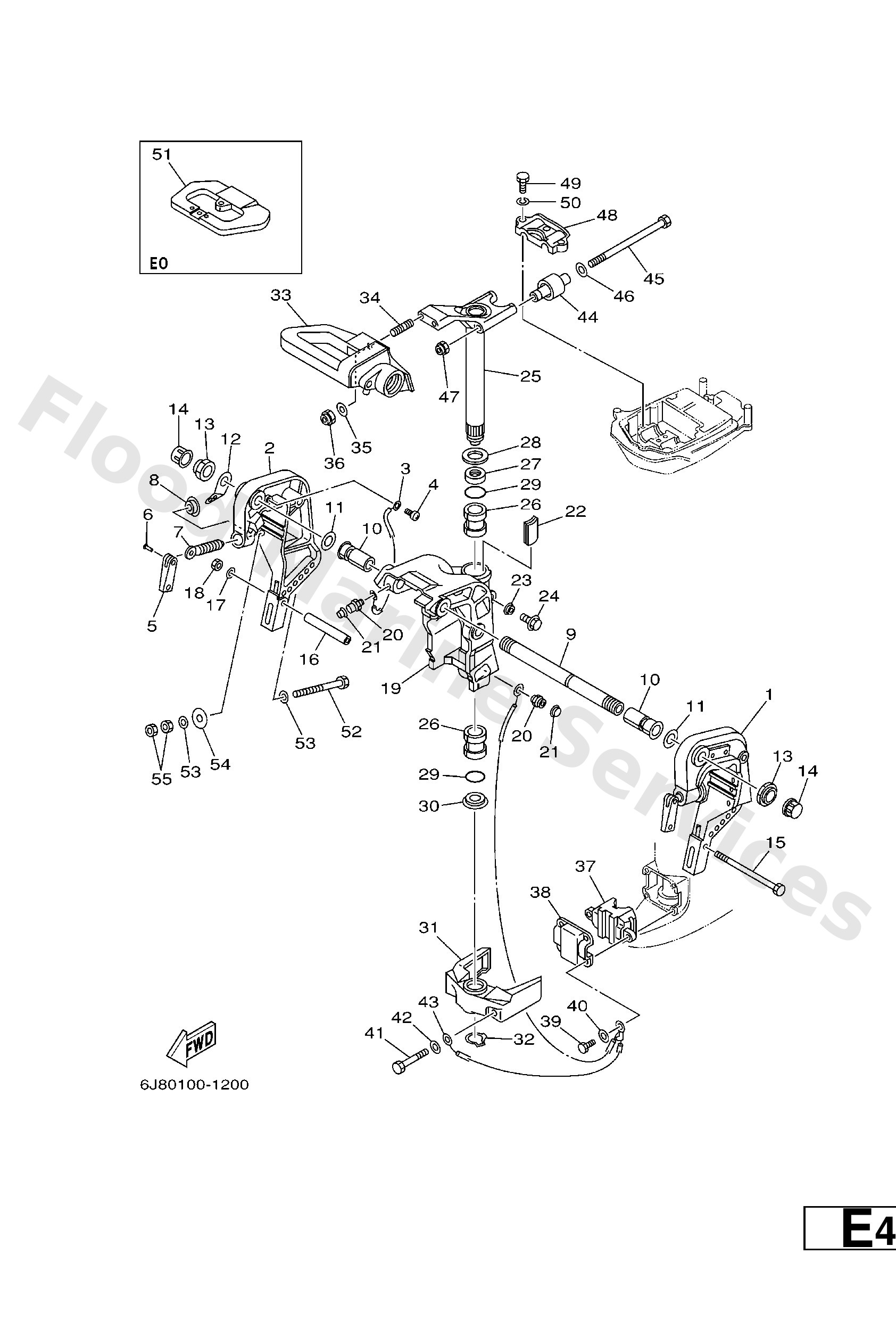

Diagram: BRACKET 1

Diagram

Parts List

6H443111054D
Bracket, clamp 1
Diagram Reference: 1
Get Part
6H443112044D
Bracket, clamp 2
Diagram Reference: 2
Get Part
6E58214800
Wire, Lead 4
Diagram Reference: 3
Get Part
9788506008
Screw, pan head(6a3)
Diagram Reference: 4
Get Part
6E04311801
Handle, transom clamp
Diagram Reference: 5
Get Part
9024304M01
Pin(6a1)
Diagram Reference: 6
Get Part
9014914M12
Screw(6h4)
Diagram Reference: 7
Get Part
6484311401
Pad, transom clamp
Diagram Reference: 8
Get Part
6J84313101
Bolt, clamp bracket
Diagram Reference: 9
Get Part
9038622M69
Bush(6k9)
Diagram Reference: 10
Get Part
9020122M03
Washer, plate(64j)
Diagram Reference: 11
Get Part
6J84311301
Plate, clamp bracket
Diagram Reference: 12
Get Part
9018522043
Nut, self-locking
Diagram Reference: 13
Get Part
6G54314501
Cap, clamp bracket
Diagram Reference: 14
Get Part
9010108339
Bolt, hexagon (656)
Diagram Reference: 15
Get Part
9038708M03
Collar
Diagram Reference: 16
Get Part
9299508600
Washer
Diagram Reference: 17
Get Part
9538008600
Nut
Diagram Reference: 18
Get Part
6J843311044D
Bracket, swivel
Diagram Reference: 19
Get Part
9370006M03
Nipple, Grease
Diagram Reference: 20
Get Part
6634511900 (AP)
Cap, grease nipple
Diagram Reference: 21
Get Part
6J84252800
Plate, friction
Diagram Reference: 22
Get Part
6894337301
Seal, damper
Diagram Reference: 23
Get Part
9010506M18
Bolt (689)
Diagram Reference: 24
Get Part
6J842510034D
Steering bracket assembly
Diagram Reference: 25
Get Part
9038630M77
Bush(6h0)
Diagram Reference: 26
Get Part
9038630M78
Bush(6h0)
Diagram Reference: 27
Get Part
9020130M00
Washer, plate(6h1)
Diagram Reference: 28
Get Part
9321029M94
O-ring(6h1)
Diagram Reference: 29
Get Part
9038630M60
Bush(6j8)
Diagram Reference: 30
Get Part
6H444551024D
Housing, lower mount rubber 1
Diagram Reference: 31
Get Part
9341028M06
Circlip (688)
Diagram Reference: 32
Get Part
6J842121034D
Bracket
Diagram Reference: 33
Get Part
9011610M28
Bolt, stud
Diagram Reference: 34
Get Part
9299510600
Washer
Diagram Reference: 35
Get Part
9018510051
Nut, self-locking
Diagram Reference: 36
Get Part
6H44455700 (S)
Mount, lower front
Diagram Reference: 37
Get Part
6H44455710 (L)
Mount, lower front
Diagram Reference: 37
Get Part
6H44455301
Cover, lower mount
Diagram Reference: 38
Get Part
9709508025
Bolt
Diagram Reference: 39
Get Part
9709510060
Bolt, hexagon
Diagram Reference: 41
Get Part
6H48212700
Wire, lead 2
Diagram Reference: 43
Get Part
6H44451400
Mount, upper side
Diagram Reference: 44
Get Part
9010908M26
Bolt(6j8)
Diagram Reference: 45
Get Part
9020109425
Washer, plate (663)
Diagram Reference: 46
Get Part
9018508045
Nut, self-locking
Diagram Reference: 47
Get Part
6J844511004D
Cover, upper mount
Diagram Reference: 48
Get Part
9707508035
Bolt(70w)
Diagram Reference: 49
Get Part
9299508100
Ybs67-8 washer, spring
Diagram Reference: 50
Get Part
6J848511014D
Hook, steering
Diagram Reference: 51
Get Part
9010110M58
Bolt
Diagram Reference: 52
Get Part
9020112426
Washer, Plate
Diagram Reference: 54
Get Part
9538010600
Nut(624)
Diagram Reference: 55
Get Part
