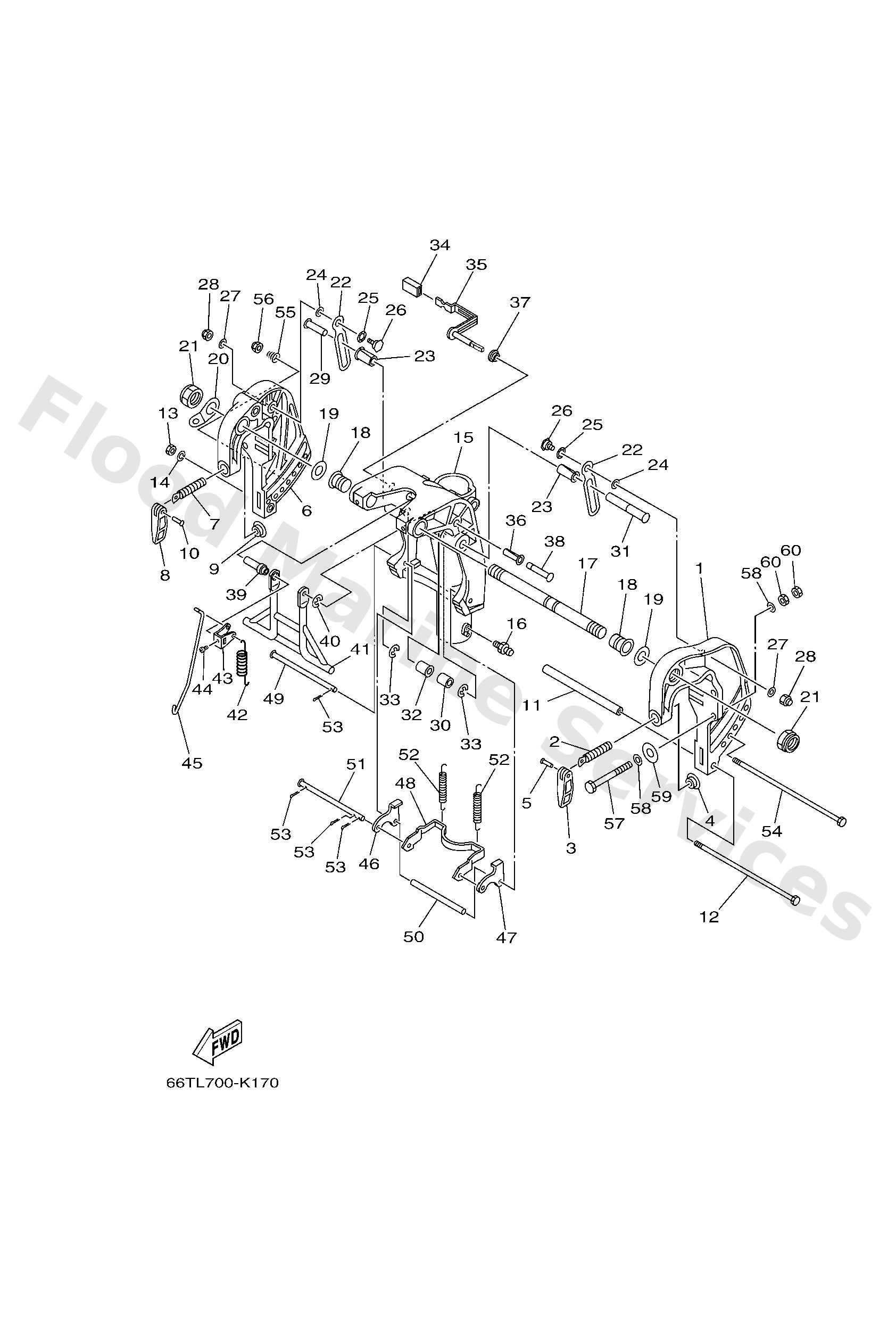

Diagram: BRACKET 1
Parts List
Bracket, clamp 1
Diagram Reference: 1
Screw(6h4)
Diagram Reference: 2
Handle, transom clamp
Diagram Reference: 3
Pad, transom clamp
Diagram Reference: 4
Pin (663)
Diagram Reference: 5
Bracket, clamp 2
Diagram Reference: 6
Collar
Diagram Reference: 11
Bolt
Diagram Reference: 12
Nut (661)
Diagram Reference: 13
Ybs67-8 washer, spring
Diagram Reference: 14
Bracket, swivel 1
Diagram Reference: 15
Nipple, grease(6a1)
Diagram Reference: 16
Bolt, clamp bracket
Diagram Reference: 17
Bushing (688)
Diagram Reference: 18
Washer, plate(64j)
Diagram Reference: 19
Plate, clamp bracket
Diagram Reference: 20
Nut, self-locking
Diagram Reference: 21
Stopper
Diagram Reference: 22
Bush
Diagram Reference: 23
Washer, plate 6484412600
Diagram Reference: 24
Washer, wave (676)
Diagram Reference: 25
Bolt
Diagram Reference: 26
Washer, plate
Diagram Reference: 27
Nut, nylon (6j8)
Diagram Reference: 28
Pin
Diagram Reference: 29
Collar
Diagram Reference: 30
Pin
Diagram Reference: 31
Bush, solid
Diagram Reference: 32
Circlip
Diagram Reference: 33
Cover
Diagram Reference: 34
Tilt lever assembly
Diagram Reference: 35
Bush
Diagram Reference: 36
Bush
Diagram Reference: 37
Pin
Diagram Reference: 38
Collar
Diagram Reference: 39
Circlip
Diagram Reference: 40
Receiver assembly
Diagram Reference: 41
Spring, tension
Diagram Reference: 42
Lever, tilt
Diagram Reference: 43
Screw, pan head
Diagram Reference: 44
Rod, tilt lock
Diagram Reference: 45
Plate, tilt lock
Diagram Reference: 46
Plate, tilt lock
Diagram Reference: 47
Arm, tilt lock
Diagram Reference: 48
Pin
Diagram Reference: 49
Collar
Diagram Reference: 50
Pin
Diagram Reference: 51
Spring, tension (676)
Diagram Reference: 52
Pin, cotter (648)
Diagram Reference: 53
Bolt
Diagram Reference: 54
Spring, conical(6g1)
Diagram Reference: 55
Bolt
Diagram Reference: 57
Washer, plate
Diagram Reference: 58
Washe, plate(663)
Diagram Reference: 59
Nut(624)
Diagram Reference: 60
