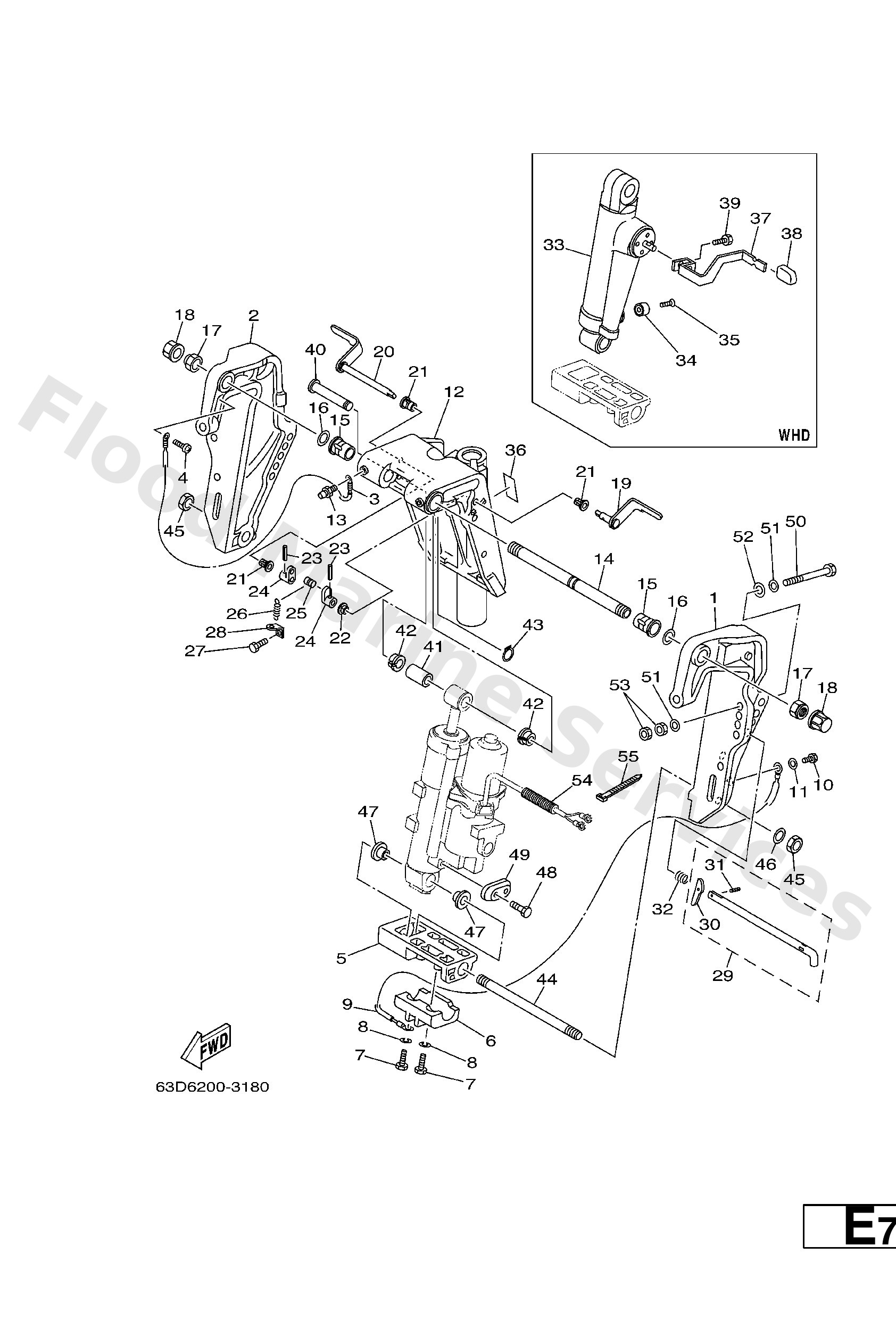

Diagram: BRACKET 1

Diagram

Parts List

63D−43111−01−4D
Bracket, clamp 1
Diagram Reference: 1
Get Part
63D−43112−01−4D
Bracket, clamp 2
Diagram Reference: 2
Get Part
63D−82148−00
Wire, lead 5
Diagram Reference: 3
Get Part
97885−06008
Screw, pan head(6a3)
Diagram Reference: 4
Get Part
63D−43128−01−4D
Spacer, clamp bracket
Diagram Reference: 5
Get Part
63D−45251−00
Anode
Diagram Reference: 6
Get Part
97095−06025
Bolt
Diagram Reference: 7
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 8
Get Part
6H1−82148−00
Wire, lead
Diagram Reference: 9
Get Part
97095−06010
Bolt
Diagram Reference: 10
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 11
Get Part
63D−43311−13−4D
Bracket, swivel 1
Diagram Reference: 12
Get Part
93700−06M03
Nipple, grease(6a1)
Diagram Reference: 13
Get Part
63D−43131−01
Bolt, clamp bracket
Diagram Reference: 14
Get Part
90386−22M15
Bushing (688)
Diagram Reference: 15
Get Part
90201−22M03
Washer, plate(64j)
Diagram Reference: 16
Get Part
90185−22M11
Nut, self-locking
Diagram Reference: 17
Get Part
6G5−43145−01
Cap, clamp bracket
Diagram Reference: 18
Get Part
6H5−43181−03
Lever, tilt stop 1
Diagram Reference: 19
Get Part
6H5−43185−03
Lever, tilt stop 2
Diagram Reference: 20
Get Part
90386−10M16
Bushing (688)
Diagram Reference: 21
Get Part
90386−10025
Bushing (658)
Diagram Reference: 22
Get Part
91690−30020
Pin, spring (6h4)
Diagram Reference: 23
Get Part
6G5−43148−00
Collar, distance
Diagram Reference: 24
Get Part
90249−06M19
Pin(6e5)
Diagram Reference: 25
Get Part
90506−14M24
Spring, tension(6e5)
Diagram Reference: 26
Get Part
6G5−43144−00
Hook, spring
Diagram Reference: 28
Get Part
688−43160−01
Tilt rod ass'y
Diagram Reference: 29
Get Part
688−43165−00
Stopper, tilt rod
Diagram Reference: 30
Get Part
91690−30012
Pin, spring
Diagram Reference: 31
Get Part
90502−16M02
Spring, conical (688)
Diagram Reference: 32
Get Part
62X−43170−11−4D
Shock absorber sub-assembly
Diagram Reference: 33
Get Part
663−45251−00
Anode
Diagram Reference: 34
Get Part
90152−06M01
Screw, countersunk
Diagram Reference: 35
Get Part
63D−43691−00
Indicator, tilt
Diagram Reference: 36
Get Part
63D−43631−00
Lever, tilt
Diagram Reference: 37
Get Part
682−43318−01
Cover
Diagram Reference: 38
Get Part
6E5−43126−02
Pin, upper shock mount
Diagram Reference: 40
Get Part
90386−18M92
Bush(62x)
Diagram Reference: 41
Get Part
90386−18M35
Bush (688)
Diagram Reference: 42
Get Part
93410−18M02
Circlip (6f2)
Diagram Reference: 43
Get Part
90116−18M52
Bolt, stud(62x)
Diagram Reference: 44
Get Part
90170−18M10
Nut (6h5)
Diagram Reference: 45
Get Part
92995−18600
Washer(64j)
Diagram Reference: 46
Get Part
90386−18M44
Bushing (6g5)
Diagram Reference: 47
Get Part
90101−06020
Bolt
Diagram Reference: 48
Get Part
65W−45251−00
Anode
Diagram Reference: 49
Get Part
90101−12M65
Bolt
Diagram Reference: 50
Get Part
92995−12200
Ybs66-12 washer,plain
Diagram Reference: 51
Get Part
90201−12426
Washe, plate(663)
Diagram Reference: 52
Get Part
95380−12600
Nut (707)
Diagram Reference: 53
Get Part
90440−14M00
Pipe(6h4)
Diagram Reference: 54
Get Part
90465−11M10
Clamp
Diagram Reference: 55
Get Part
