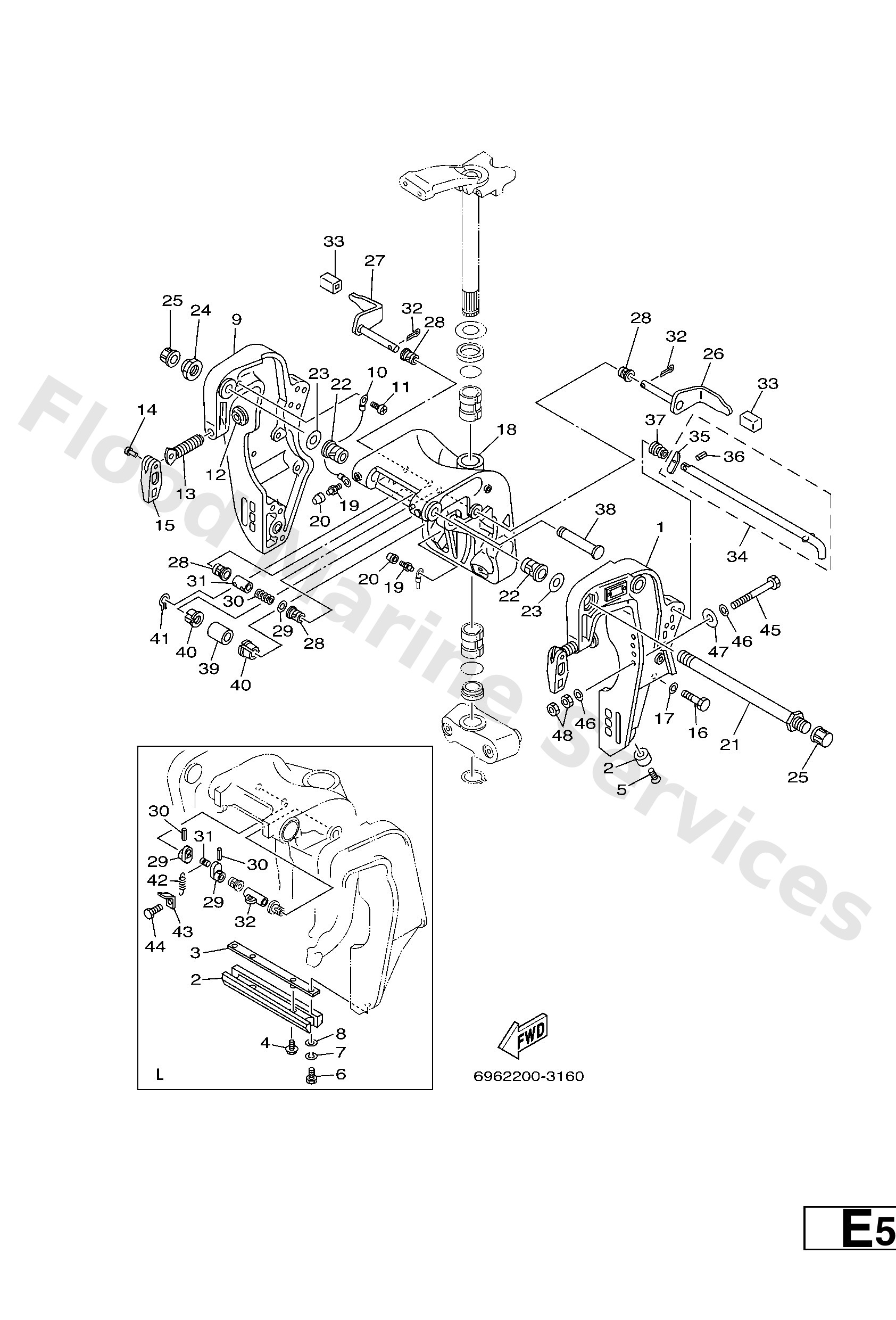

Diagram: BRACKET 1

Diagram

Parts List

68843111134D (L)
Bracket, clamp 1
Diagram Reference: 1
Get Part
69743111054D (S)
Bracket, clamp
Diagram Reference: 1
Get Part
6H14525103 (L)
Anode
Diagram Reference: 2
Get Part
6634525100 (S)
Anode
Diagram Reference: 2
Get Part
6H14452600 (L)
Plate 2
Diagram Reference: 3
Get Part
9011906M29 (L)
Bolt, with washer
Diagram Reference: 4
Get Part
9015206M01 (S)
Screw, countersunk
Diagram Reference: 5
Get Part
9709506016 (L)
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
9299506100 (L)
Washer(6a1)
Diagram Reference: 7
Get Part
9299506600 (L)
Washer, plain (646)
Diagram Reference: 8
Get Part
69743112034D (S)
Bracket, clamp
Diagram Reference: 9
Get Part
68843112124D (L)
Bracket, clamp 2
Diagram Reference: 9
Get Part
6E58214800
Wire, lead 5
Diagram Reference: 10
Get Part
9788006012
Screw, pan head(62j)
Diagram Reference: 11
Get Part
6484311401
Pad, transom clamp
Diagram Reference: 12
Get Part
6634311601
Screw, transom
Diagram Reference: 13
Get Part
9024304007
Pin (663)
Diagram Reference: 14
Get Part
66343118014D
Handle, transom clamp
Diagram Reference: 15
Get Part
9709510045
Bolt(64d)
Diagram Reference: 16
Get Part
9299510100
Ybs67-10 washer, spring
Diagram Reference: 17
Get Part
69743311034D (S)
Bracket, swivel
Diagram Reference: 18
Get Part
6H143311024D (L)
Bracket, swivel 1
Diagram Reference: 18
Get Part
9370006M03
Nipple, grease(6a1)
Diagram Reference: 19
Get Part
6634511900 (AP)
Cap, grease nipple
Diagram Reference: 20
Get Part
6884313103
Bolt, clamp bracket
Diagram Reference: 21
Get Part
9038622M15
Bushing (688)
Diagram Reference: 22
Get Part
9020122M67
Washer, plate (688)
Diagram Reference: 23
Get Part
9018522043
Nut, self-locking
Diagram Reference: 24
Get Part
6G54314501
Cap, clamp bracket
Diagram Reference: 25
Get Part
6884318110 (L)
Lever, tilt stop 1
Diagram Reference: 26
Get Part
6884318104 (S)
Lever, tilt stop 1
Diagram Reference: 26
Get Part
6884318504 (S)
Lever, tilt stop 2
Diagram Reference: 27
Get Part
6884318510 (L)
Lever, tilt stop 2
Diagram Reference: 27
Get Part
9038610M16
Bushing (688)
Diagram Reference: 28
Get Part
9299010600 (S)
Washer, plate
Diagram Reference: 29
Get Part
6G54314800 (L)
Collar, distance
Diagram Reference: 29
Get Part
9050110M21 (S)
Spring (688)
Diagram Reference: 30
Get Part
9169030020 (L)
Pin, spring (6h4)
Diagram Reference: 30
Get Part
9038710M38 (S)
Coller (6e5)
Diagram Reference: 31
Get Part
9024906M19 (L)
Pin(6e5)
Diagram Reference: 31
Get Part
9149030025 (S)
Pin cotter
Diagram Reference: 32
Get Part
9038710M02 (L)
Collar(6e5)
Diagram Reference: 32
Get Part
6634331800
Cover
Diagram Reference: 33
Get Part
6974316000 (S)
Tilt lock ass'y
Diagram Reference: 34
Get Part
6884316001 (L)
Tilt rod ass'y
Diagram Reference: 34
Get Part
6884316500
Stopper, tilt rod
Diagram Reference: 35
Get Part
9169030012
Pin, spring
Diagram Reference: 36
Get Part
9050220M03 (S)
Spring (6e5)
Diagram Reference: 37
Get Part
9050216M02 (L)
Spring, conical (688)
Diagram Reference: 37
Get Part
6E54312602
Pin, upper shock mount
Diagram Reference: 38
Get Part
9038618M21
Bushing (688)
Diagram Reference: 39
Get Part
9038618M35
Bush (688)
Diagram Reference: 40
Get Part
9341018M02
Circlip (6f2)
Diagram Reference: 41
Get Part
9050614M24 (L)
Spring, tension(6e5)
Diagram Reference: 42
Get Part
6G54314400 (L)
Hook, spring
Diagram Reference: 43
Get Part
9709506010 (L)
Bolt
Diagram Reference: 44
Get Part
9010112M51
Bolt
Diagram Reference: 45
Get Part
9299512200
Ybs66-12 washer,plain
Diagram Reference: 46
Get Part
9020112426
Washe, plate(663)
Diagram Reference: 47
Get Part
9538012600
Nut (707)
Diagram Reference: 48
