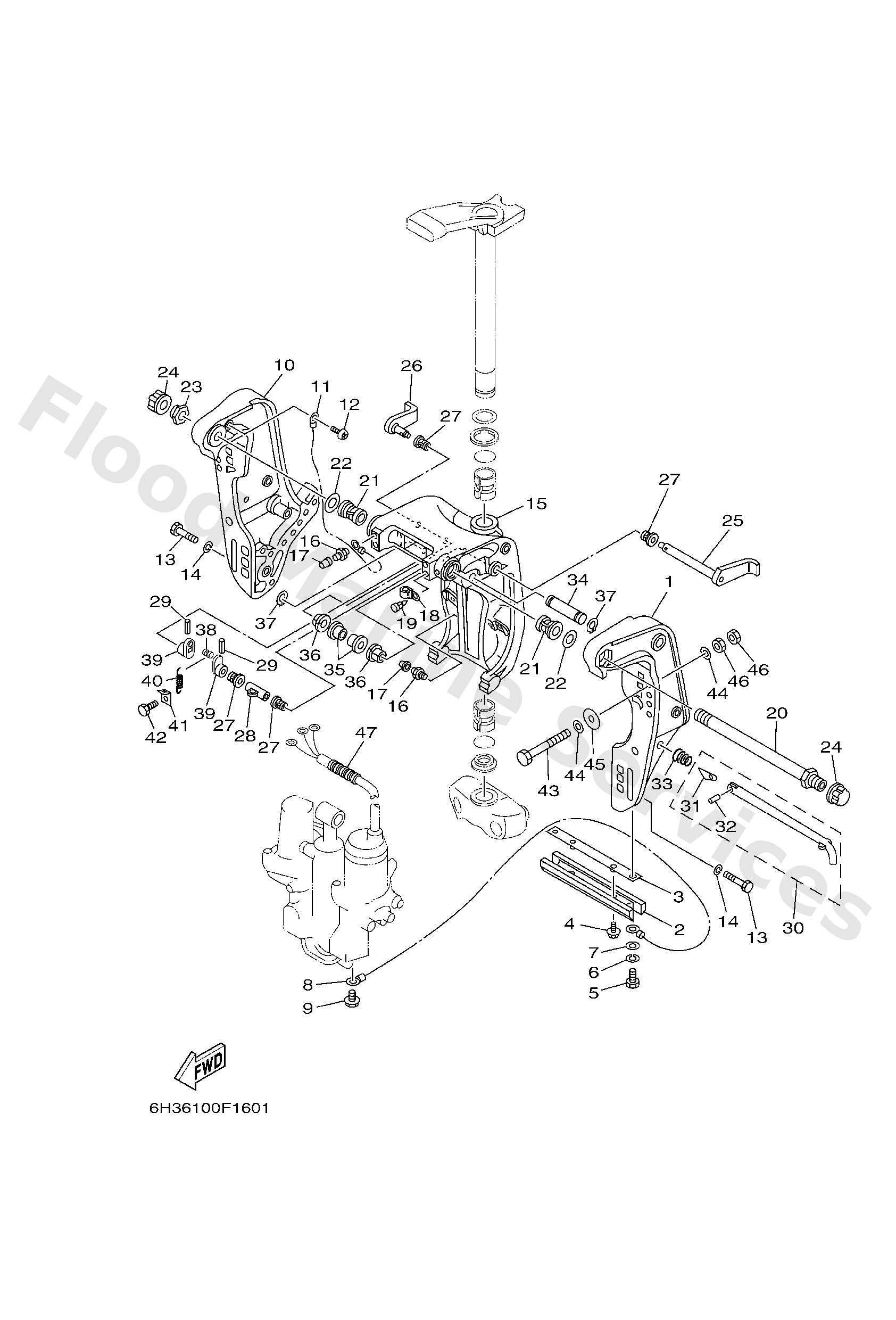

Diagram: BRACKET 1

Diagram

Parts List

6H143111014D
Bracket, clamp 1
Diagram Reference: 1
Get Part
6H14525103
Anode
Diagram Reference: 2
Get Part
6H14452600
Plate 2
Diagram Reference: 3
Get Part
9011906M29
Bolt, with washer
Diagram Reference: 4
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 5
Get Part
9299506100
Washer(6a1)
Diagram Reference: 6
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 7
Get Part
6H18214800
Wire, lead
Diagram Reference: 8
Get Part
9759506510
Bolt, hexagon w/w deep recess
Diagram Reference: 9
Get Part
6H143112004D
Bracket, clamp 2
Diagram Reference: 10
Get Part
6E58214800
Wire, lead 5
Diagram Reference: 11
Get Part
9788006012
Screw, pan head(62j)
Diagram Reference: 12
Get Part
9709510045
Bolt(64d)
Diagram Reference: 13
Get Part
9299510100
Ybs67-10 washer, spring
Diagram Reference: 14
Get Part
6H143311024D
Bracket, swivel 1
Diagram Reference: 15
Get Part
9370006M03
Nipple, grease(6a1)
Diagram Reference: 16
Get Part
6634511900 (AP)
Cap, grease nipple
Diagram Reference: 17
Get Part
9046411M18
Clamp(6e5)
Diagram Reference: 18
Get Part
9033805M03
Plug (6h1)
Diagram Reference: 19
Get Part
6884313103
Bolt, clamp bracket
Diagram Reference: 20
Get Part
9038622M15
Bushing (688)
Diagram Reference: 21
Get Part
9020122M67
Washer, plate (688)
Diagram Reference: 22
Get Part
9018522043
Nut, self-locking
Diagram Reference: 23
Get Part
6G54314501
Cap, clamp bracket
Diagram Reference: 24
Get Part
6H14318101
Lever, tilt stop 1
Diagram Reference: 25
Get Part
6H14318501
Lever, tilt stop 2
Diagram Reference: 26
Get Part
9038610M16
Bushing (688)
Diagram Reference: 27
Get Part
9038710M02
Collar(6e5)
Diagram Reference: 28
Get Part
9169030020
Pin, spring (6h4)
Diagram Reference: 29
Get Part
6884316001
Tilt rod ass'y
Diagram Reference: 30
Get Part
6884316500
Stopper, tilt rod
Diagram Reference: 31
Get Part
9169030012
Pin, spring
Diagram Reference: 32
Get Part
9050216M02
Spring, conical (688)
Diagram Reference: 33
Get Part
6E54312610 (Go to P/N)PE0-OM-110026)
Pin, upper shock mount
Diagram Reference: 34
Get Part
9038618M63
Bush(6e5)
Diagram Reference: 35
Get Part
9038618M35
Bush (688)
Diagram Reference: 36
Get Part
9341018M02 (Go to P/N)PE0-OM-110026)
Circlip (6f2)
Diagram Reference: 37
Get Part
9024906M19
Pin(6e5)
Diagram Reference: 38
Get Part
6G54314800
Collar, distance
Diagram Reference: 39
Get Part
9050614M24
Spring, tension(6e5)
Diagram Reference: 40
Get Part
6G54314400
Hook, spring
Diagram Reference: 41
Get Part
9709506010
Bolt
Diagram Reference: 42
Get Part
9010112M65
Bolt
Diagram Reference: 43
Get Part
9299512200
Ybs66-12 washer,plain
Diagram Reference: 44
Get Part
9020112426
Washe, plate(663)
Diagram Reference: 45
Get Part
9538012600
Nut (707)
Diagram Reference: 46
Get Part
9044014M00
Pipe(6h4)
Diagram Reference: 47
