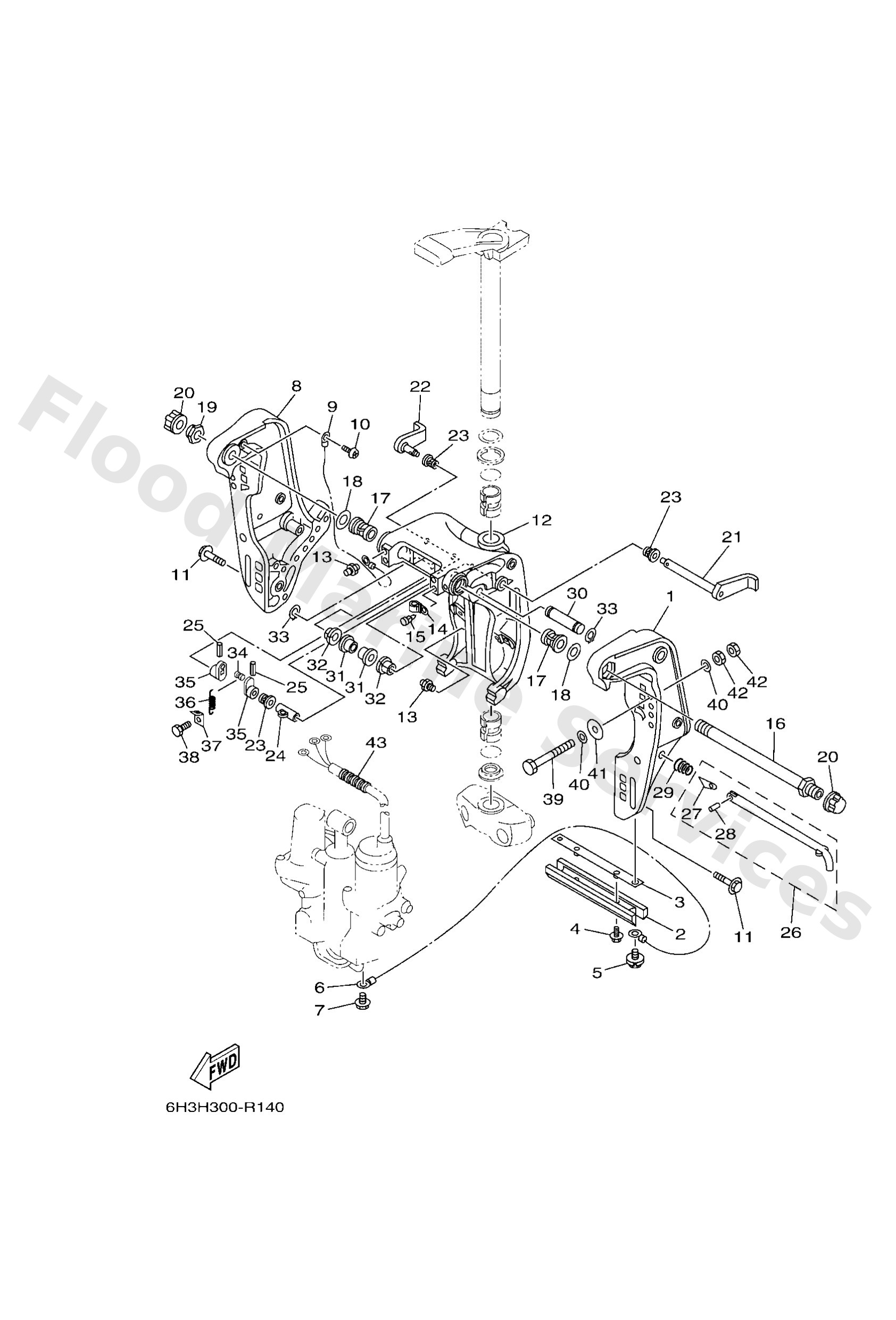

Parts List
Bracket, clamp 1
Diagram Reference: 1
Anode
Diagram Reference: 2
Plate 2
Diagram Reference: 3
Bolt, with washer
Diagram Reference: 4
Bolt, hexagon w/w deep recess
Diagram Reference: 5
Wire, lead
Diagram Reference: 6
Bolt, hexagon w/w deep recess
Diagram Reference: 7
Bracket, clamp 2
Diagram Reference: 8
Wire, lead 5
Diagram Reference: 9
Screw, pan head(62j)
Diagram Reference: 10
Bolt, hexagon w/w deep recess
Diagram Reference: 11
Bracket, swivel 1
Diagram Reference: 12
Nipple, grease(6a1)
Diagram Reference: 13
Clamp(6e5)
Diagram Reference: 14
Plug (6h1)
Diagram Reference: 15
Bolt, clamp bracket
Diagram Reference: 16
Bushing (688)
Diagram Reference: 17
Washer, plate (688)
Diagram Reference: 18
Nut, self-locking
Diagram Reference: 19
Cap, clamp bracket
Diagram Reference: 20
Lever, tilt stop 1
Diagram Reference: 21
Lever, tilt stop 2
Diagram Reference: 22
Bushing (688)
Diagram Reference: 23
Collar(6e5)
Diagram Reference: 24
Pin, spring (6h4)
Diagram Reference: 25
Tilt rod ass'y
Diagram Reference: 26
Stopper, tilt rod
Diagram Reference: 27
Pin, spring
Diagram Reference: 28
Spring, conical (688)
Diagram Reference: 29
Pin, upper shock mount
Diagram Reference: 30
Bush(6e5)
Diagram Reference: 31
Bush (688)
Diagram Reference: 32
Circlip (6f2)
Diagram Reference: 33
Pin(6e5)
Diagram Reference: 34
Collar, distance
Diagram Reference: 35
Spring, tension(6e5)
Diagram Reference: 36
Hook, spring
Diagram Reference: 37
Bolt
Diagram Reference: 38
Bolt
Diagram Reference: 39
Washer, plate
Diagram Reference: 40
Washe, plate(663)
Diagram Reference: 41
Nut (707)
Diagram Reference: 42
Pipe(6h4)
Diagram Reference: 43
