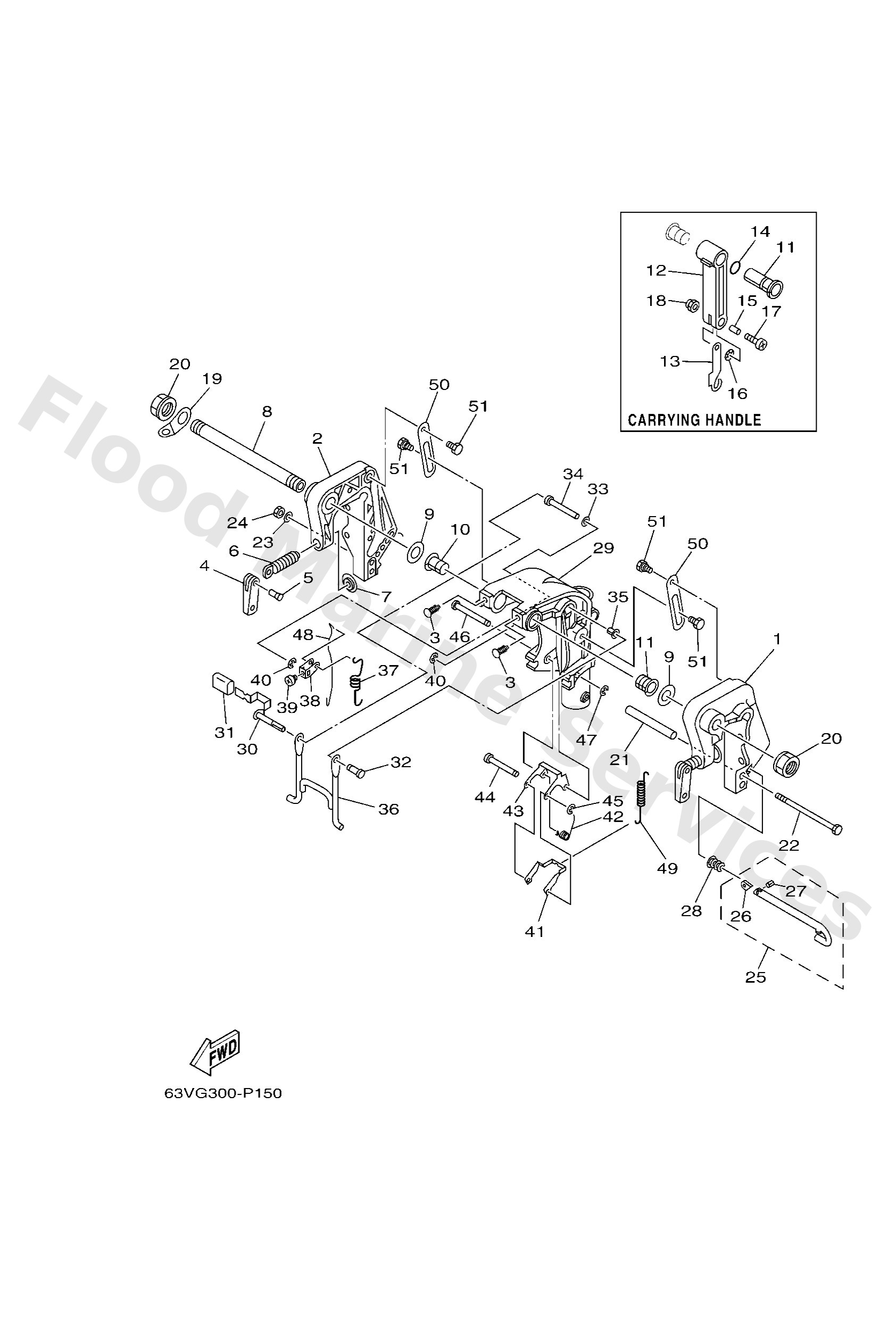

Diagram: BRACKET 1
Parts List
Bracket, clamp 1
Diagram Reference: 1
Bracket, clamp 2
Diagram Reference: 2
Rivet
Diagram Reference: 3
Handle, transom clamp
Diagram Reference: 4
Pin(6a1)
Diagram Reference: 5
Screw, transom clamp
Diagram Reference: 6
Pad, transom clamp
Diagram Reference: 7
Bolt, clamp bracket
Diagram Reference: 8
Washer, plate(63v)
Diagram Reference: 9
Bush(63v)
Diagram Reference: 10
Bush(6k9)
Diagram Reference: 11
Carrying handle
Diagram Reference: 12
Hook
Diagram Reference: 13
O-ring
Diagram Reference: 14
Collar(63v)
Diagram Reference: 15
Washer(656)
Diagram Reference: 16
Screw, pan head(6b0)
Diagram Reference: 17
Nut, nylon (6g1)
Diagram Reference: 18
Plate, clamp bracket
Diagram Reference: 19
Nut, self-locking
Diagram Reference: 20
Collar(6h6)
Diagram Reference: 21
Bolt, hexagon (682)
Diagram Reference: 22
Washer, plain (646)
Diagram Reference: 23
Nut
Diagram Reference: 24
Tilt rod assembly
Diagram Reference: 25
Plate, tilt lock
Diagram Reference: 26
Pin. spring(656)
Diagram Reference: 27
Spring, conical(6k3)
Diagram Reference: 28
Bracket, swivel 1
Diagram Reference: 29
Tilt lever assembly
Diagram Reference: 30
Cover
Diagram Reference: 31
Shaft, stopper
Diagram Reference: 32
Washer, plate
Diagram Reference: 33
Collar
Diagram Reference: 34
Bush(63v)
Diagram Reference: 35
Receiver assembly
Diagram Reference: 36
Spring, tension(63v)
Diagram Reference: 37
Lever, tilt
Diagram Reference: 38
Screw, pan head
Diagram Reference: 39
Circlip(22k)
Diagram Reference: 40
Plate, tilt lock
Diagram Reference: 41
Spring, torsion
Diagram Reference: 42
Plate, tilt lock
Diagram Reference: 43
Shaft, tilt lock
Diagram Reference: 44
Circlip (eu0)
Diagram Reference: 45
Shaft, reverse lock
Diagram Reference: 46
Rod, tilt lock
Diagram Reference: 48
Spring, reverse lock 1
Diagram Reference: 49
Lever, tilt stop 1
Diagram Reference: 50
Bolt
Diagram Reference: 51
