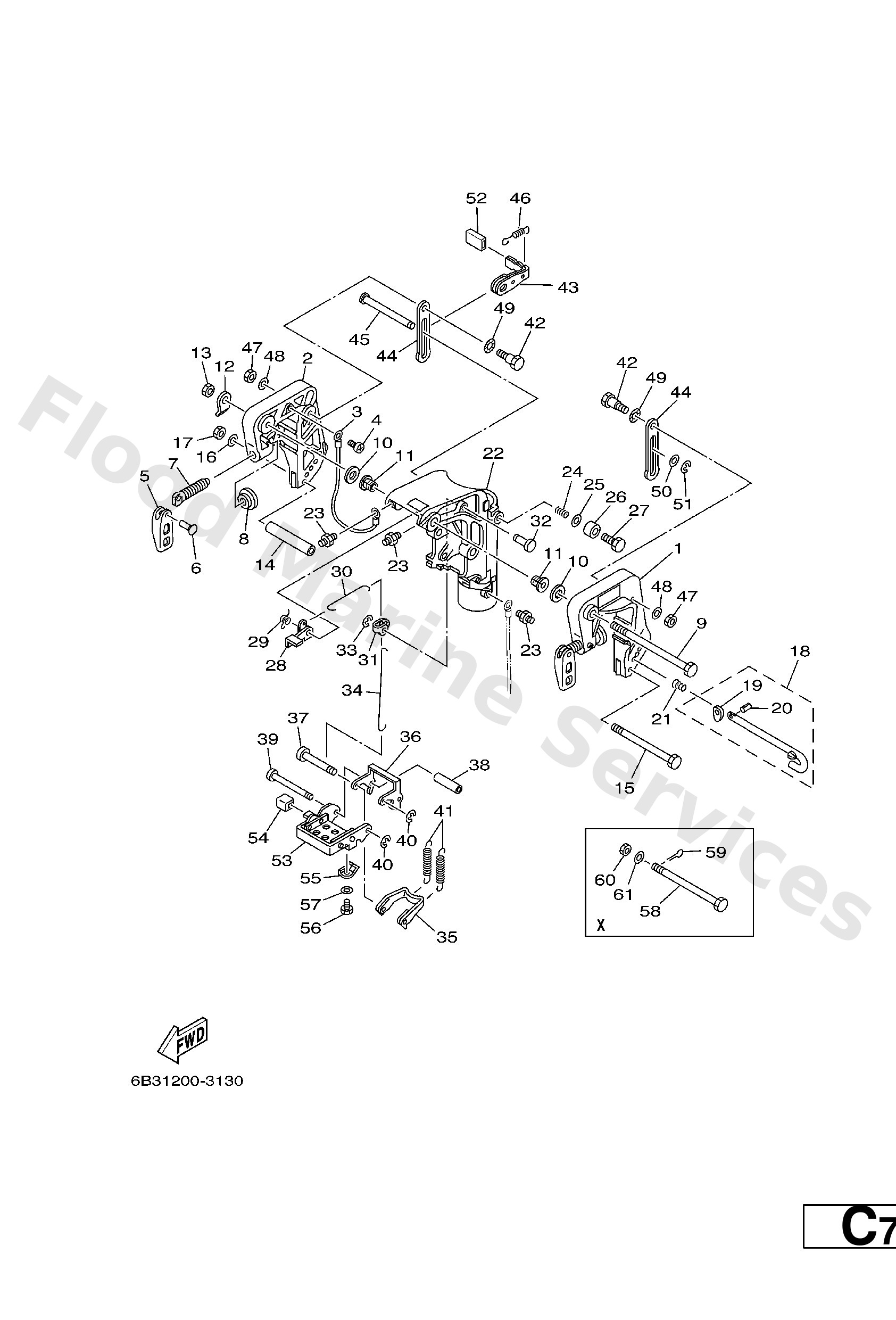

Parts List
Bracket, clamp 1
Diagram Reference: 1
Bracket, clamp 2
Diagram Reference: 2
Wire, lead 5
Diagram Reference: 3
Screw, pan head(6a3)
Diagram Reference: 4
Handle, transom clamp
Diagram Reference: 5
Pin (663)
Diagram Reference: 6
Screw, transom clamp
Diagram Reference: 7
Pad, transom clamp
Diagram Reference: 8
Bolt
Diagram Reference: 9
Washer, plate
Diagram Reference: 10
Bush, solid
Diagram Reference: 11
Plate, clamp bracket
Diagram Reference: 12
Nut, nylon (6f2)
Diagram Reference: 13
Collar(6h6)
Diagram Reference: 14
Bolt, hexagon (682)
Diagram Reference: 15
Washer, plain (646)
Diagram Reference: 16
Nut
Diagram Reference: 17
Tilt rod assembly
Diagram Reference: 18
Plate, tilt lock
Diagram Reference: 19
Pin. spring(656)
Diagram Reference: 20
Spring, conical(6k3)
Diagram Reference: 21
Bracket, swivel 1
Diagram Reference: 22
Nipple, grease(6a1)
Diagram Reference: 23
Spring, compression (676)
Diagram Reference: 24
Washer, plain (663)
Diagram Reference: 25
Damper, seal
Diagram Reference: 26
Bolt, hexagon deep recess
Diagram Reference: 27
Lever, tilt
Diagram Reference: 28
Spring, torsion
Diagram Reference: 29
Rod, tilt lock 1
Diagram Reference: 30
Lever, tilt
Diagram Reference: 31
Pin(6e7)
Diagram Reference: 32
Circlip(22k)
Diagram Reference: 33
Rod, tilt lock 2
Diagram Reference: 34
Plate, tilt lock
Diagram Reference: 35
Plate, tilt lock
Diagram Reference: 36
Shaft, tilt lock
Diagram Reference: 37
Collar(6m7)
Diagram Reference: 38
Shaft, reverse lock
Diagram Reference: 39
Spring, tension (682)
Diagram Reference: 41
Spring, tension (683)
Diagram Reference: 41
Bolt (682)
Diagram Reference: 42
Lever, tilt stop 1
Diagram Reference: 43
Stopper
Diagram Reference: 44
Pin
Diagram Reference: 45
Spring, tension
Diagram Reference: 46
U-nut (6a5)
Diagram Reference: 47
Washer, wave
Diagram Reference: 49
Washer, plate
Diagram Reference: 50
Circlip(j51)
Diagram Reference: 51
Cover
Diagram Reference: 52
Lever, shallow water drive 1
Diagram Reference: 53
Spring
Diagram Reference: 55
Bolt (fj1)
Diagram Reference: 56
Bolt (682)
Diagram Reference: 58
Pin, cotter (648)
Diagram Reference: 59
Nut, castle (682)
Diagram Reference: 60
Washer, plain (663)
Diagram Reference: 61
