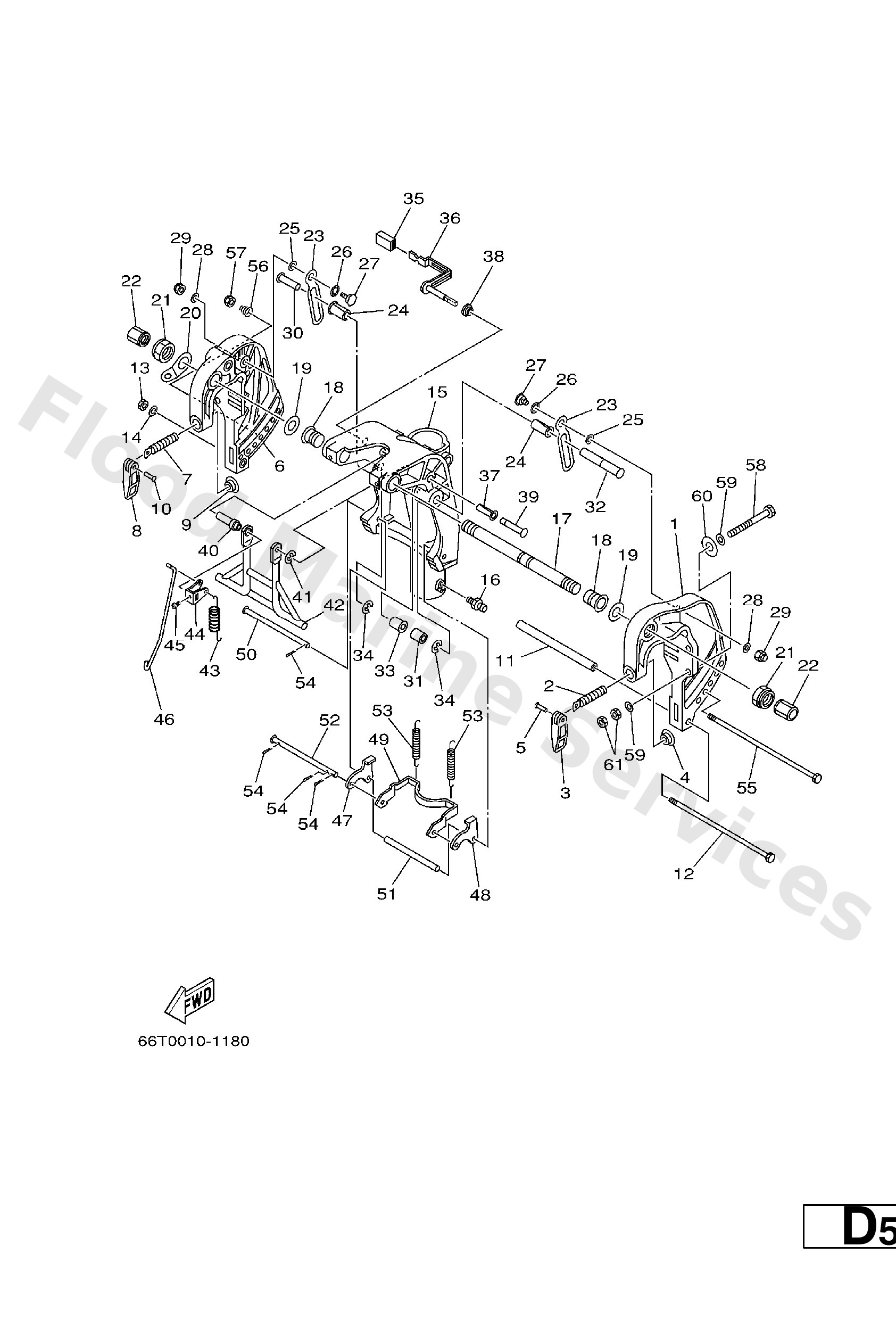

Diagram: BRACKET 1
Parts List
Screw(6h4)
Diagram Reference: 2
Pad, transom clamp
Diagram Reference: 4
Pin (663)
Diagram Reference: 5
Collar
Diagram Reference: 11
Bolt
Diagram Reference: 12
Nut (661)
Diagram Reference: 13
Ybs67-8 washer, spring
Diagram Reference: 14
Nipple, grease(6a1)
Diagram Reference: 16
Bolt, clamp bracket
Diagram Reference: 17
Bushing (688)
Diagram Reference: 18
Washer, plate(64j)
Diagram Reference: 19
Plate, clamp bracket
Diagram Reference: 20
Nut, self-locking
Diagram Reference: 21
Cap, clamp bracket
Diagram Reference: 22
Stopper
Diagram Reference: 23
Bush
Diagram Reference: 24
Washer, plate 6484412600
Diagram Reference: 25
Washer, wave (676)
Diagram Reference: 26
Bolt
Diagram Reference: 27
Washer, plate
Diagram Reference: 28
Nut, nylon (6j8)
Diagram Reference: 29
Pin
Diagram Reference: 30
Collar
Diagram Reference: 31
Pin
Diagram Reference: 32
Bush, solid
Diagram Reference: 33
Circlip
Diagram Reference: 34
Cover
Diagram Reference: 35
Tilt lever assy
Diagram Reference: 36
Bush
Diagram Reference: 37
Bush
Diagram Reference: 38
Pin
Diagram Reference: 39
Collar
Diagram Reference: 40
Circlip
Diagram Reference: 41
Receiver assy
Diagram Reference: 42
Spring, tension
Diagram Reference: 43
Lever, tilt
Diagram Reference: 44
Screw, pan head
Diagram Reference: 45
Rod, tilt lock
Diagram Reference: 46
Plate, tilt lock
Diagram Reference: 47
Plate, tilt lock
Diagram Reference: 48
Arm, tilt lock
Diagram Reference: 49
Pin
Diagram Reference: 50
Collar
Diagram Reference: 51
Pin
Diagram Reference: 52
Spring, tension (676)
Diagram Reference: 53
Pin, cotter (648)
Diagram Reference: 54
Bolt
Diagram Reference: 55
Spring, conical(6g1)
Diagram Reference: 56
Bolt
Diagram Reference: 58
Washer, plate
Diagram Reference: 59
Washe, plate(663)
Diagram Reference: 60
Nut(624)
Diagram Reference: 61
