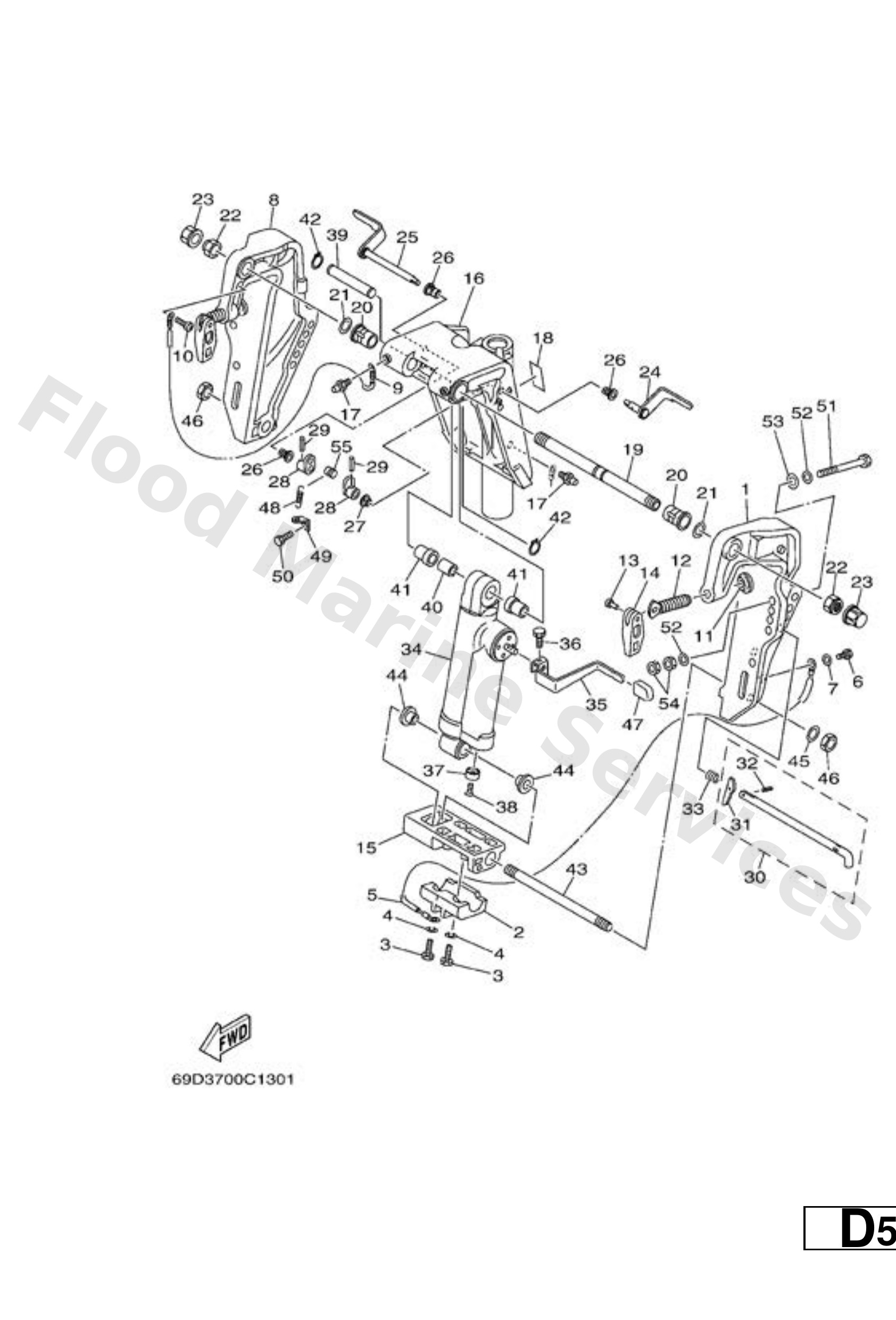

Diagram: BRACKET 1

Diagram

Parts List

63D43111014D
Bracket, clamp 1
Diagram Reference: 1
Get Part
63D4525100
Anode
Diagram Reference: 2
Get Part
9709506025
Bolt
Diagram Reference: 3
Get Part
9299506100
Washer(6a1)
Diagram Reference: 4
Get Part
6H18214800
Wire, lead
Diagram Reference: 5
Get Part
9709506010
Bolt
Diagram Reference: 6
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 7
Get Part
63D43112014D
Bracket, clamp 2
Diagram Reference: 8
Get Part
63D8214800
Wire, lead 5
Diagram Reference: 9
Get Part
9788506008
Screw, pan head(6a3)
Diagram Reference: 10
Get Part
6484311401
Pad, transom clamp
Diagram Reference: 11
Get Part
6634311601
Screw, transom
Diagram Reference: 12
Get Part
9024304007
Pin (663)
Diagram Reference: 13
Get Part
66343118014D
Handle, transom clamp
Diagram Reference: 14
Get Part
63D43128014D
Spacer, clamp bracket
Diagram Reference: 15
Get Part
69D43311114D
Bracket, swivel 1
Diagram Reference: 16
Get Part
9370006M03
Nipple, grease(6a1)
Diagram Reference: 17
Get Part
63D4369100
Indicator, tilt
Diagram Reference: 18
Get Part
63D4313101
Bolt, clamp bracket
Diagram Reference: 19
Get Part
9038622M15
Bushing (688)
Diagram Reference: 20
Get Part
9020122M03
Washer, plate(64j)
Diagram Reference: 21
Get Part
9018522M11
Nut, self-locking
Diagram Reference: 22
Get Part
6G54314501
Cap, clamp bracket
Diagram Reference: 23
Get Part
6H54318103
Lever, tilt stop 1
Diagram Reference: 24
Get Part
6H54318503
Lever, tilt stop 2
Diagram Reference: 25
Get Part
9038610M16
Bushing (688)
Diagram Reference: 26
Get Part
9038610025
Bushing (658)
Diagram Reference: 27
Get Part
6G54314800
Collar, distance
Diagram Reference: 28
Get Part
9169030020
Pin, spring (6h4)
Diagram Reference: 29
Get Part
6884316001
Tilt rod ass'y
Diagram Reference: 30
Get Part
6884316500
Stopper, tilt rod
Diagram Reference: 31
Get Part
9169030012
Pin, spring
Diagram Reference: 32
Get Part
9050216M02
Spring, conical (688)
Diagram Reference: 33
Get Part
69D43170104D
Shock absorber sub-assembly
Diagram Reference: 34
Get Part
69D4363100
Lever, tilt
Diagram Reference: 35
Get Part
6634525100
Anode
Diagram Reference: 37
Get Part
9868006525
Screw flat head
Diagram Reference: 38
Get Part
69D4312600
Pin, upper shock mount
Diagram Reference: 39
Get Part
9038716003
Collar
Diagram Reference: 40
Get Part
9038716004
Collar
Diagram Reference: 41
Get Part
9341016006
Circlip
Diagram Reference: 42
Get Part
9011618M52
Bolt, stud(62x)
Diagram Reference: 43
Get Part
9038618M44
Bushing (6g5)
Diagram Reference: 44
Get Part
9299518600
Washer(64j)
Diagram Reference: 45
Get Part
9017018M10
Nut (6h5)
Diagram Reference: 46
Get Part
6824331801
Cover
Diagram Reference: 47
Get Part
9050614M24
Spring, tension(6e5)
Diagram Reference: 48
Get Part
6G54314400
Hook, spring
Diagram Reference: 49
Get Part
9010112M65
Bolt
Diagram Reference: 51
Get Part
9299512200
Ybs66-12 washer,plain
Diagram Reference: 52
Get Part
9020112426
Washe, plate(663)
Diagram Reference: 53
Get Part
9538012600
Nut (707)
Diagram Reference: 54
Get Part
9024906M19
Pin(6e5)
Diagram Reference: 55
Get Part
