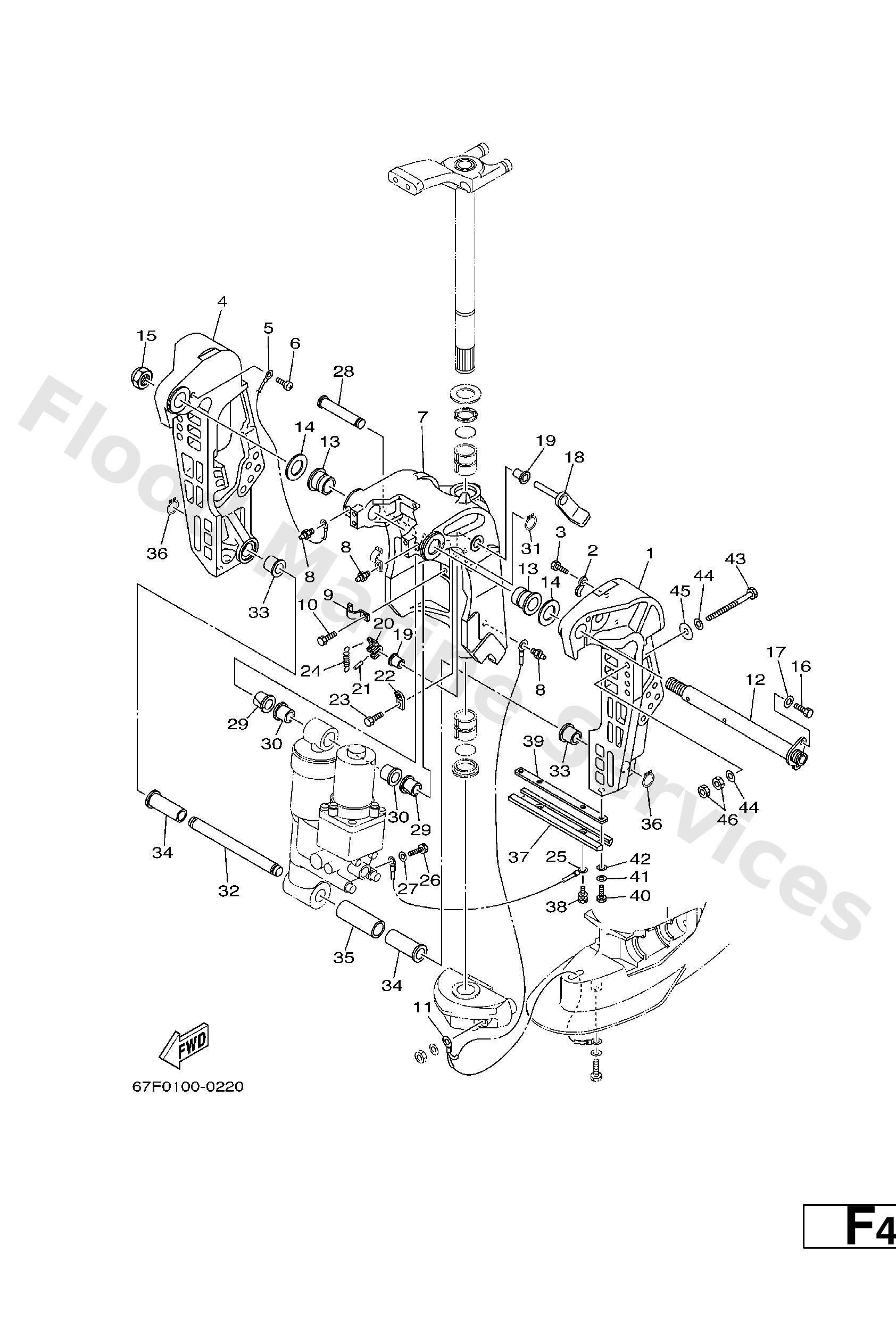

Diagram: BRACKET 1

Diagram

Parts List

67F−43111−00−4D
Bracket, clamp 1
Diagram Reference: 1
Get Part
90465−10M77
Clamp
Diagram Reference: 2
Get Part
97095−06010
Bolt
Diagram Reference: 3
Get Part
67F−43112−00−4D
Bracket, clamp 2
Diagram Reference: 4
Get Part
6E5−82148−00
Wire, lead 5
Diagram Reference: 5
Get Part
97880−06012
Screw, pan head(62j)
Diagram Reference: 6
Get Part
67F−43311−10−4D
Bracket, Swivel 1
Diagram Reference: 7
Get Part
93700−06M03
Nipple, grease(6a1)
Diagram Reference: 8
Get Part
90465−08M63
Clamp(61u)
Diagram Reference: 9
Get Part
67F−82127−00
Wire, lead 2
Diagram Reference: 11
Get Part
64E−43131−01
Bolt, clamp bracket
Diagram Reference: 12
Get Part
90386−25M31
Bushing (6e5)
Diagram Reference: 13
Get Part
90201−26M59
Washer, plate (6e5)
Diagram Reference: 14
Get Part
90185−22M11
Nut, self-locking
Diagram Reference: 15
Get Part
97095−08020
Bolt, hexagon
Diagram Reference: 16
Get Part
92995−08100
Ybs67-8 washer, spring
Diagram Reference: 17
Get Part
67F−43181−00
Lever, tilt stop 1
Diagram Reference: 18
Get Part
90386−10M16
Bushing (688)
Diagram Reference: 19
Get Part
67F−43631−00
Lever, tilt
Diagram Reference: 20
Get Part
91690−30020
Pin, spring (6h4)
Diagram Reference: 21
Get Part
66T−43144−00
Hook, spring
Diagram Reference: 22
Get Part
90506−14M24
Spring, tension(6e5)
Diagram Reference: 24
Get Part
67F−82148−00
Wire, lead 4
Diagram Reference: 25
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 27
Get Part
67F−43126−00
Pin, upper shock mount
Diagram Reference: 28
Get Part
90386−18M35
Bush (688)
Diagram Reference: 29
Get Part
90386−18M63
Bush(6e5)
Diagram Reference: 30
Get Part
93410−18M05
Circlip (6f2)
Diagram Reference: 31
Get Part
67F−43818−00
Pin, lower shock mount
Diagram Reference: 32
Get Part
90387−18M01
Collar
Diagram Reference: 33
Get Part
90386−18MA0
Bush
Diagram Reference: 34
Get Part
90387−22M01
Collar
Diagram Reference: 35
Get Part
6H1−45251−03
Anode
Diagram Reference: 37
Get Part
90119−06M81
Bolt, with washer
Diagram Reference: 38
Get Part
6H1−44526−00
Plate 2
Diagram Reference: 39
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 40
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 41
Get Part
90101−12M03
Bolt (l:115mm)
Diagram Reference: 43
Get Part
90201−13M01
Washer, plate(6e5)
Diagram Reference: 44
Get Part
90201−12M05
Washe, plate(663)
Diagram Reference: 45
Get Part
95380−12600
Nut (707)
Diagram Reference: 46
Get Part
