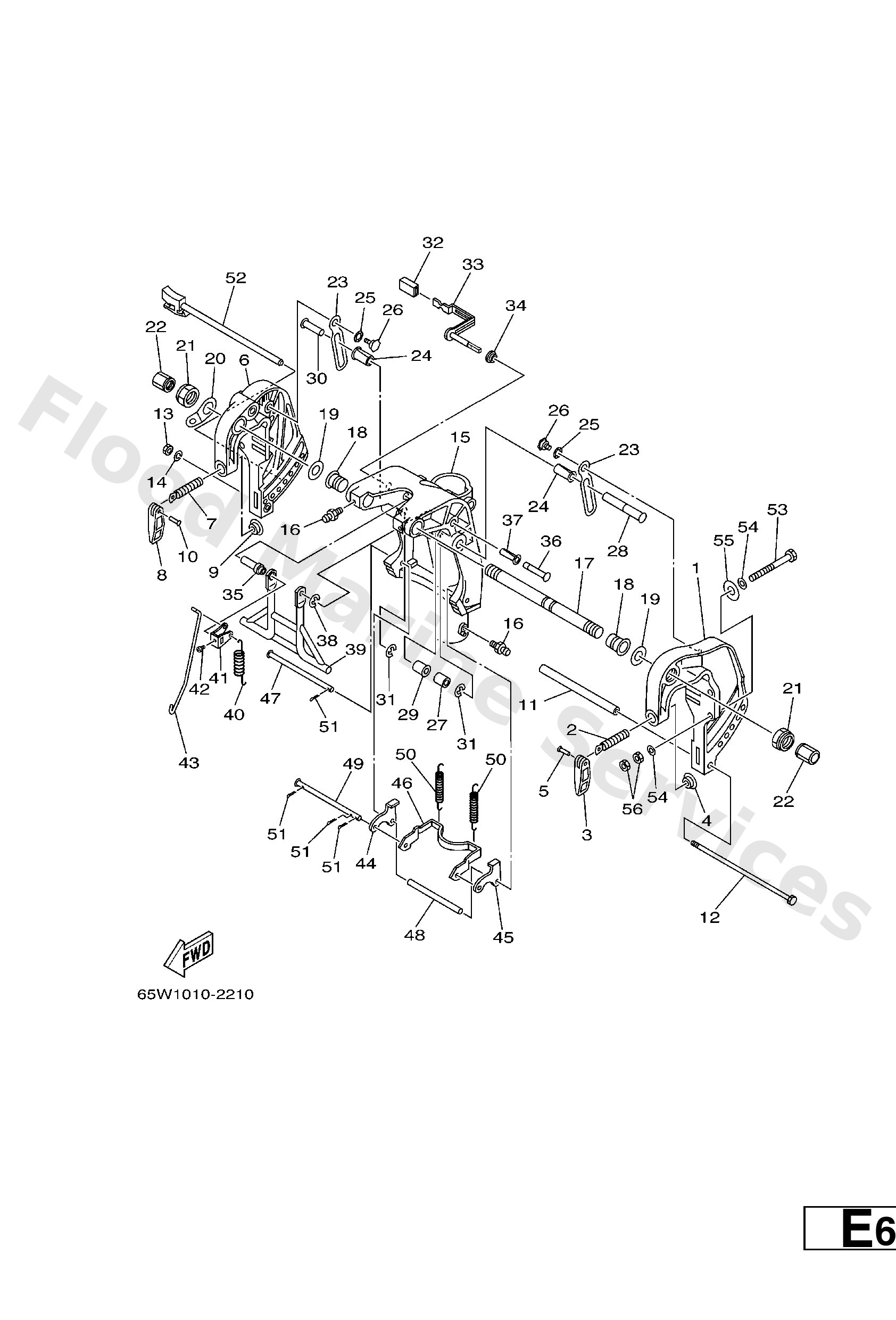

Diagram: BRACKET 1
Parts List
Screw(6h4)
Diagram Reference: 2
Handle, transom clamp
Diagram Reference: 3
Pad, transom clamp
Diagram Reference: 4
Pin (663)
Diagram Reference: 5
Collar
Diagram Reference: 11
Bolt
Diagram Reference: 12
Nut (661)
Diagram Reference: 13
Ybs67-8 washer, spring
Diagram Reference: 14
Bracket, swivel 1
Diagram Reference: 15
Bracket, swivel
Diagram Reference: 15
Nipple, grease(6a1)
Diagram Reference: 16
Bolt, clamp bracket
Diagram Reference: 17
Bushing (688)
Diagram Reference: 18
Washer, plate(64j)
Diagram Reference: 19
Plate, clamp bracket
Diagram Reference: 20
Nut, self-locking
Diagram Reference: 21
Cap, clamp bracket
Diagram Reference: 22
Bush
Diagram Reference: 24
Washer, Wave
Diagram Reference: 25
Bolt
Diagram Reference: 26
Collar
Diagram Reference: 27
Pin
Diagram Reference: 28
Bush, solid
Diagram Reference: 29
Pin
Diagram Reference: 30
Circlip
Diagram Reference: 31
Cover
Diagram Reference: 32
Tilt lever assembly
Diagram Reference: 33
Bush
Diagram Reference: 34
Collar
Diagram Reference: 35
Pin
Diagram Reference: 36
Bush
Diagram Reference: 37
Circlip
Diagram Reference: 38
Receiver assembly
Diagram Reference: 39
Spring, tension
Diagram Reference: 40
Lever, tilt
Diagram Reference: 41
Screw, pan head
Diagram Reference: 42
Rod, tilt lock
Diagram Reference: 43
Plate, tilt lock
Diagram Reference: 44
Plate, tilt lock
Diagram Reference: 45
Arm, tilt lock
Diagram Reference: 46
Pin
Diagram Reference: 47
Collar
Diagram Reference: 48
Pin
Diagram Reference: 49
Spring, tension (676)
Diagram Reference: 50
Pin, cotter (648)
Diagram Reference: 51
Tilt rod assembly
Diagram Reference: 52
Bolt
Diagram Reference: 53
Washer, plate
Diagram Reference: 54
Washe, plate(663)
Diagram Reference: 55
Nut(624)
Diagram Reference: 56
