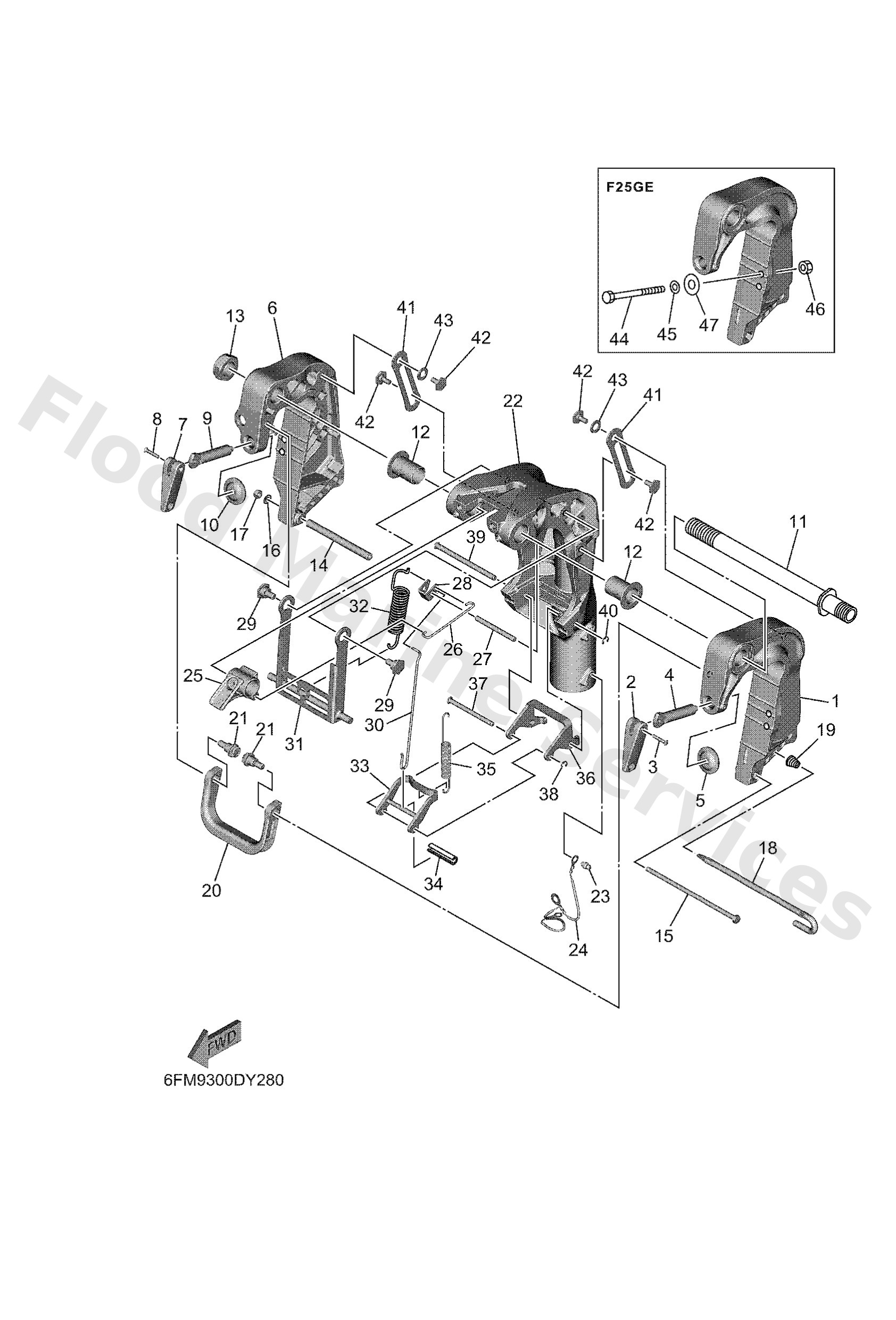

Diagram: BRACKET 1
Parts List
Bracket, clamp 1
Diagram Reference: 1
Handle, transom clamp
Diagram Reference: 2
Pin(6a1)
Diagram Reference: 3
Screw, transom clamp
Diagram Reference: 4
Pad, transom clamp
Diagram Reference: 5
Bracket, clamp 2
Diagram Reference: 6
Bolt, clamp bracket
Diagram Reference: 11
Bush
Diagram Reference: 12
Nut, self-locking
Diagram Reference: 13
Collar
Diagram Reference: 14
Bolt(6l5)
Diagram Reference: 15
Washer, plain (646)
Diagram Reference: 16
Nut
Diagram Reference: 17
Tilt rod assembly
Diagram Reference: 18
Spring, conical(6k3)
Diagram Reference: 19
Carrying handle
Diagram Reference: 20
Bolt
Diagram Reference: 21
Bracket, swivel 1
Diagram Reference: 22
Bracket, swivel 1
Diagram Reference: 22
Nipple, grease(6a1)
Diagram Reference: 23
Wire, lead 2
Diagram Reference: 24
Lever, tilt
Diagram Reference: 25
Rod, tilt lock
Diagram Reference: 26
Shaft, lever
Diagram Reference: 27
Lever, tilt
Diagram Reference: 28
Bolt
Diagram Reference: 29
Rod, tilt lock
Diagram Reference: 30
Receiver assembly
Diagram Reference: 31
Spring, reverse lock 1
Diagram Reference: 32
Plate, tilt rock
Diagram Reference: 33
Collar
Diagram Reference: 34
Spring, reverse lock 1
Diagram Reference: 35
Arm, tilt lock
Diagram Reference: 36
Pin
Diagram Reference: 37
Circlip(22k)
Diagram Reference: 38
Shaft, tilt lock
Diagram Reference: 39
Stopper
Diagram Reference: 41
Bolt
Diagram Reference: 42
Washer, wave
Diagram Reference: 43
Bolt (6g8)
Diagram Reference: 44
Washer, plain (663)
Diagram Reference: 45
Nut, nylon (6j8)
Diagram Reference: 46
Washer, plate (6g8)
Diagram Reference: 47
