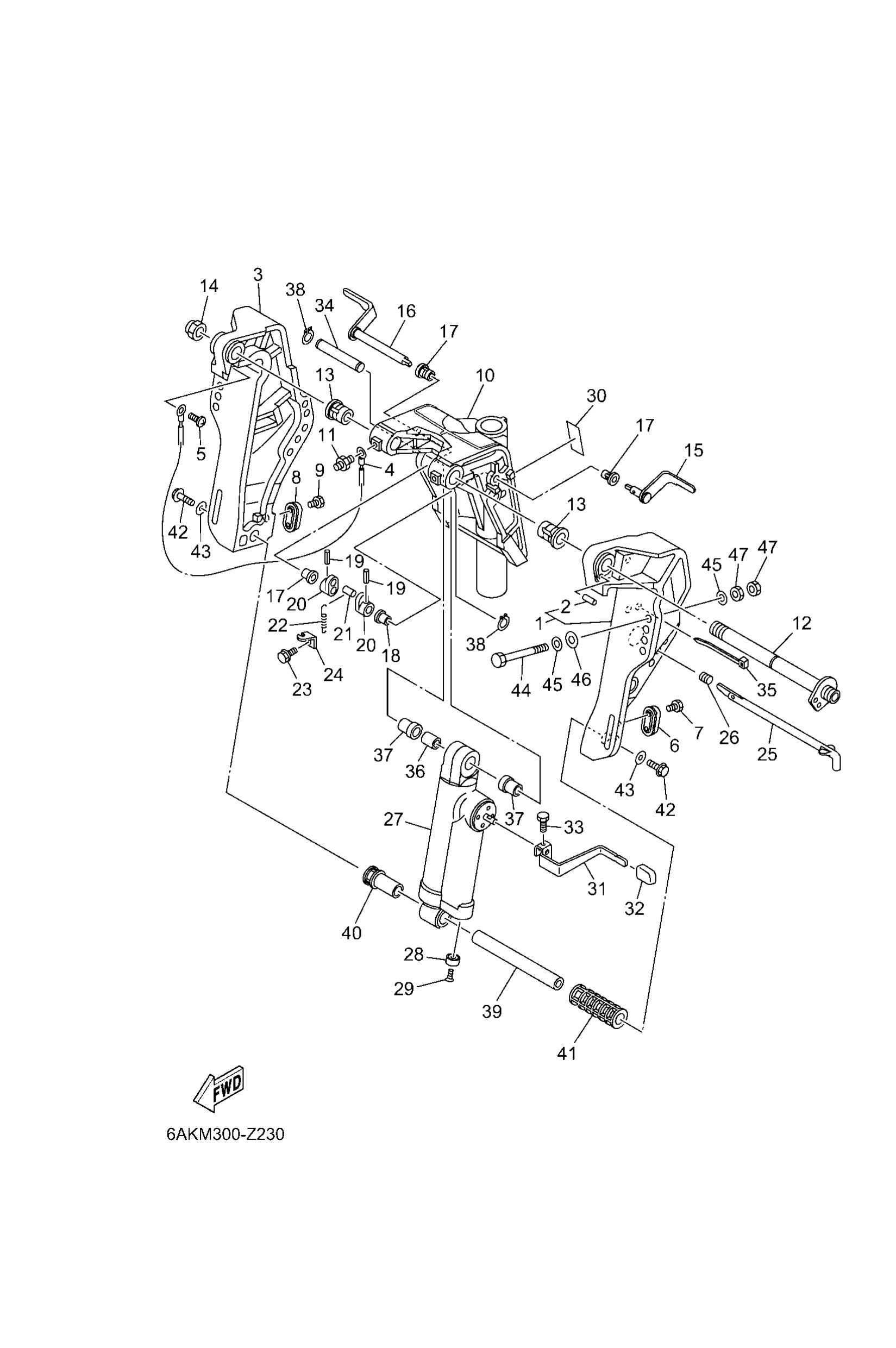

Parts List
Bracket, Clamp 1
Diagram Reference: 1
Pin, dowel
Diagram Reference: 2
Bracket, clamp 2
Diagram Reference: 3
Wire, lead 5
Diagram Reference: 4
Screw, pan head(6a3)
Diagram Reference: 5
Anode
Diagram Reference: 6
Bolt
Diagram Reference: 7
Bracket, swivel 1
Diagram Reference: 10
Nipple, grease
Diagram Reference: 11
Bolt, clamp bracket
Diagram Reference: 12
Bush
Diagram Reference: 13
Nut, self-locking
Diagram Reference: 14
Lever, tilt stop 1
Diagram Reference: 15
Lever, tilt stop 2
Diagram Reference: 16
Bushing (688)
Diagram Reference: 17
Bushing (658)
Diagram Reference: 18
Pin, spring (6h4)
Diagram Reference: 19
Collar, distance
Diagram Reference: 20
Pin(6e5)
Diagram Reference: 21
Spring, tension(6e5)
Diagram Reference: 22
Bolt, hexagon w/w deep recess
Diagram Reference: 23
Hook, spring
Diagram Reference: 24
Tilt rod ass'y
Diagram Reference: 25
Spring, conical (688)
Diagram Reference: 26
Shock absorber sub-assembly
Diagram Reference: 27
Anode
Diagram Reference: 28
Screw, countersunk
Diagram Reference: 29
Indicator, tilt
Diagram Reference: 30
Lever, tilt
Diagram Reference: 31
Cover
Diagram Reference: 32
Bolt, hexagon deep recess
Diagram Reference: 33
Pin, upper shock mount
Diagram Reference: 34
Clamp
Diagram Reference: 35
Collar
Diagram Reference: 36
Collar
Diagram Reference: 37
Circlip
Diagram Reference: 38
Pin, lower shock mount
Diagram Reference: 39
Pipe
Diagram Reference: 40
Pipe
Diagram Reference: 41
Bolt, with washer
Diagram Reference: 42
Washer, plate
Diagram Reference: 43
Bolt
Diagram Reference: 44
Washer, plate
Diagram Reference: 45
Washe, plate(663)
Diagram Reference: 46
Nut (707)
Diagram Reference: 47
