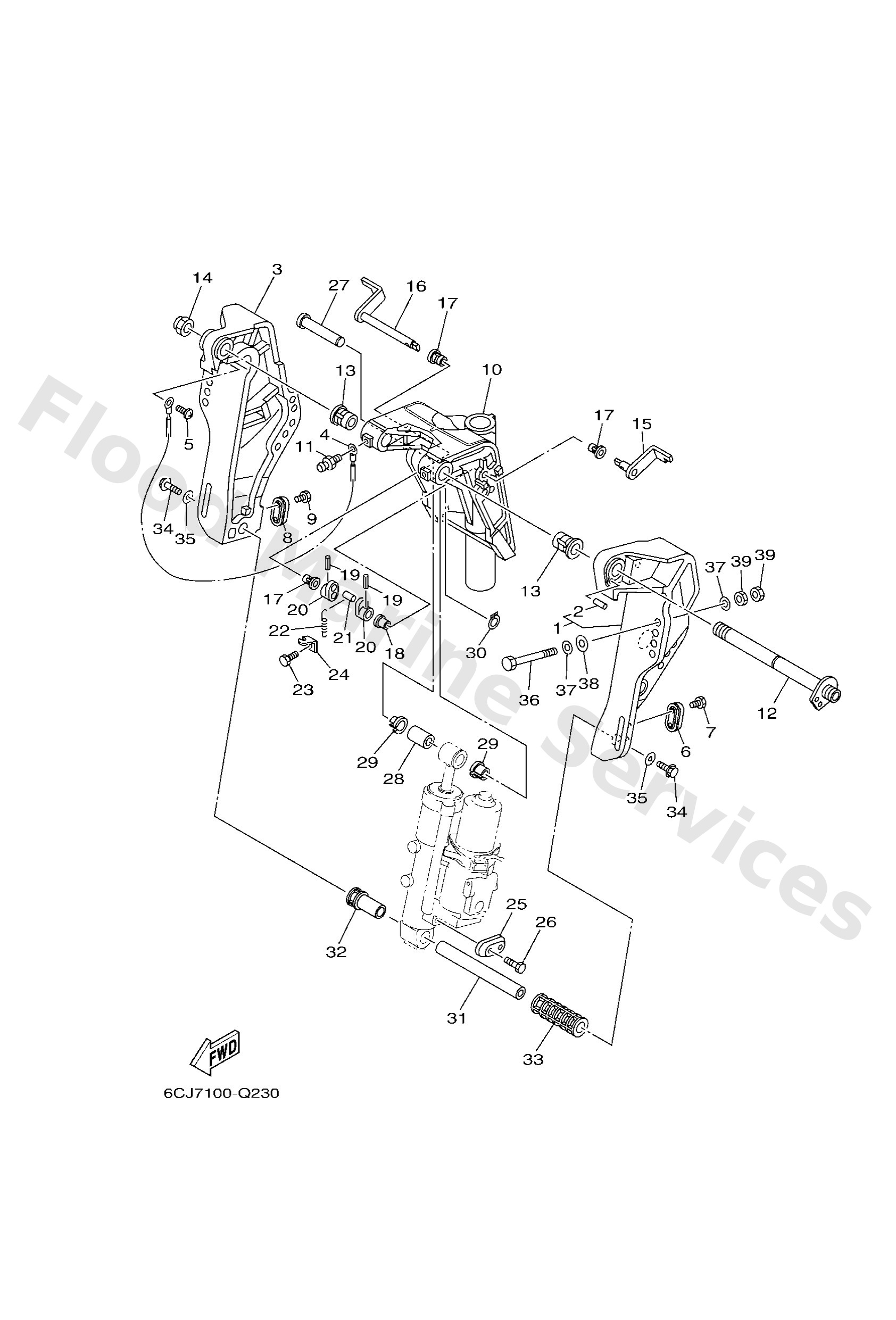

Diagram: BRACKET 1
Parts List
Bracket, clamp 1
Diagram Reference: 1
Pin, dowel
Diagram Reference: 2
Bracket, clamp 2
Diagram Reference: 3
Wire, lead 5
Diagram Reference: 4
Screw, pan head(6a3)
Diagram Reference: 5
Anode
Diagram Reference: 6
Bolt
Diagram Reference: 7
Bracket, swivel 1
Diagram Reference: 10
Nipple, grease(6a1)
Diagram Reference: 11
Bolt, clamp bracket
Diagram Reference: 12
Bush
Diagram Reference: 13
Nut, self-locking
Diagram Reference: 14
Lever, tilt stop 1
Diagram Reference: 15
Lever, tilt stop 2
Diagram Reference: 16
Bushing (688)
Diagram Reference: 17
Bushing (658)
Diagram Reference: 18
Pin, spring (6h4)
Diagram Reference: 19
Collar, distance
Diagram Reference: 20
Pin(6e5)
Diagram Reference: 21
Spring, tension(6e5)
Diagram Reference: 22
Bolt
Diagram Reference: 23
Hook, spring
Diagram Reference: 24
Pin, upper shock mount
Diagram Reference: 27
Bush(62x)
Diagram Reference: 28
Bush (688)
Diagram Reference: 29
Circlip (6f2)
Diagram Reference: 30
Pin, lower shock mount
Diagram Reference: 31
Pipe
Diagram Reference: 32
Pipe
Diagram Reference: 33
Bolt, with washer
Diagram Reference: 34
Washer, plate
Diagram Reference: 35
Bolt
Diagram Reference: 36
Washer, plate
Diagram Reference: 37
Washe, plate(663)
Diagram Reference: 38
Nut (707)
Diagram Reference: 39
