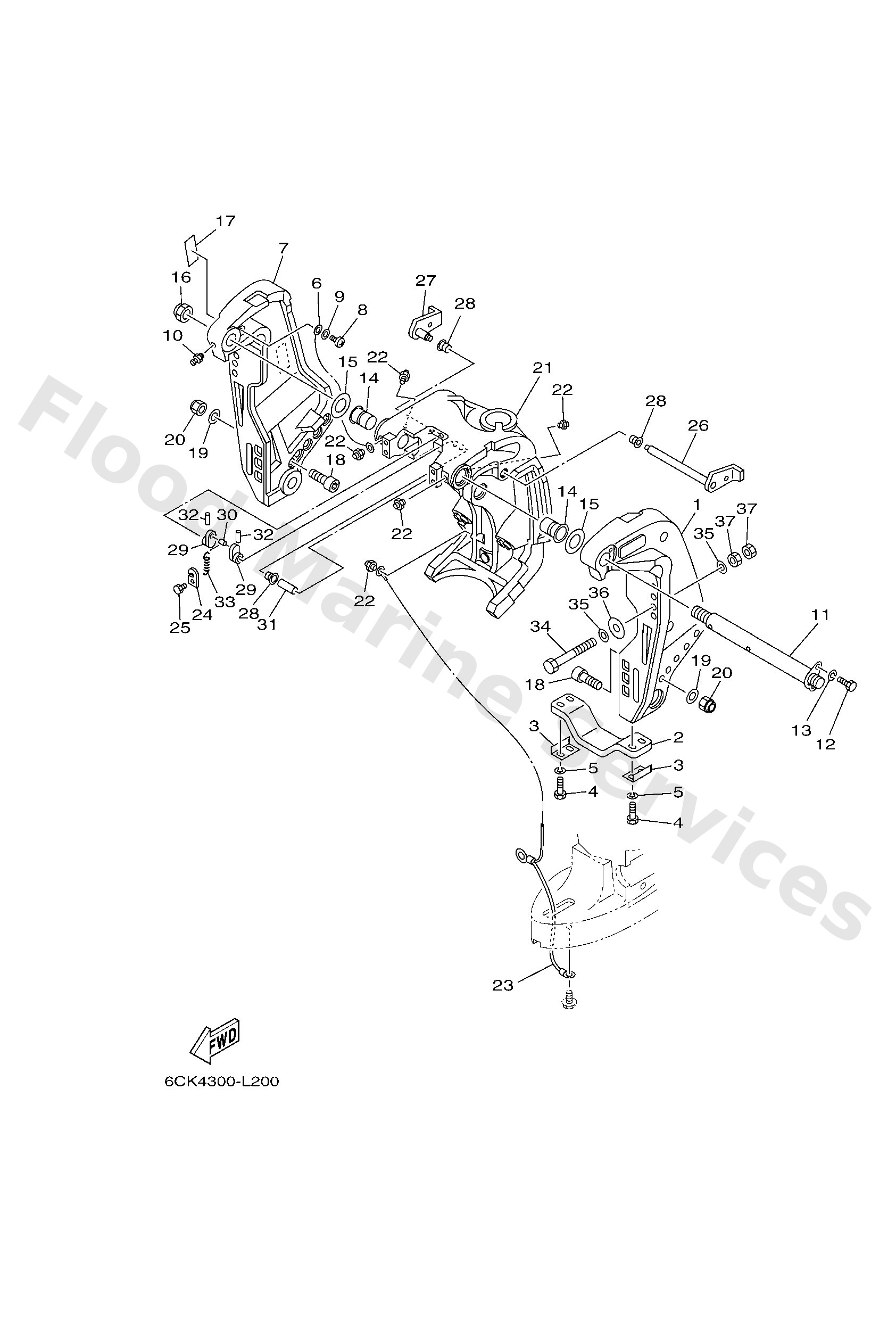

Diagram: BRACKET 1

Diagram

Parts List

6BC43111008D
Bracket, clamp 1
Diagram Reference: 1
Get Part
6G54525102
Anode
Diagram Reference: 2
Get Part
6G54452600
Plate
Diagram Reference: 3
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 4
Get Part
9299506100
Washer(6a1)
Diagram Reference: 5
Get Part
6E58214800
Wire, lead 5
Diagram Reference: 6
Get Part
6BC43112008D
Bracket, clamp 2
Diagram Reference: 7
Get Part
9788506012
Screw, pan head(62j)
Diagram Reference: 8
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 9
Get Part
9370006M03
Nipple, grease(6a1)
Diagram Reference: 10
Get Part
64E4313101
Bolt, clamp bracket
Diagram Reference: 11
Get Part
9709508020
Bolt, hexagon
Diagram Reference: 12
Get Part
9299508100
Ybs67-8 washer, spring
Diagram Reference: 13
Get Part
9038625M31
Bushing (6e5)
Diagram Reference: 14
Get Part
9020126M59
Washer, plate (6e5)
Diagram Reference: 15
Get Part
9018522M11
Nut, self-locking
Diagram Reference: 16
Get Part
63D4369100
Indicator, tilt
Diagram Reference: 17
Get Part
9011012M00
Bolt, hexagon socket head
Diagram Reference: 18
Get Part
9299012200
Ybs66-12 washer,plain
Diagram Reference: 19
Get Part
9018512M12
Nut, self-locking(6e5)
Diagram Reference: 20
Get Part
6BC43311108D (X(25.3"))
Bracket, swivel 1
Diagram Reference: 21
Get Part
6BC43311008D (L(20.3"))
Bracket, swivel 1
Diagram Reference: 21
Get Part
66K8214900 (L(20.3"))
Wire, lead 3
Diagram Reference: 23
Get Part
68V8214930 (X(25.3"))
Wire, lead 3
Diagram Reference: 23
Get Part
66T4314400
Hook, spring
Diagram Reference: 24
Get Part
9709506010
Bolt
Diagram Reference: 25
Get Part
6BC4318100
Lever, tilt stop 1
Diagram Reference: 26
Get Part
6BC4318500
Lever, tilt stop 2
Diagram Reference: 27
Get Part
9038610M16
Bushing (688)
Diagram Reference: 28
Get Part
6G54314800
Collar, distance
Diagram Reference: 29
Get Part
9024906M19
Pin(6e5)
Diagram Reference: 30
Get Part
9038710M05
Collar(6e5)
Diagram Reference: 31
Get Part
9169030020
Pin, spring (6h4)
Diagram Reference: 32
Get Part
9050614M24
Spring, tension(6e5)
Diagram Reference: 33
Get Part
9010112M03
Bolt (l:115mm)
Diagram Reference: 34
Get Part
9020113M01
Washer, plate(6e5)
Diagram Reference: 35
Get Part
9020112426
Washe, plate(663)
Diagram Reference: 36
Get Part
9538012600
Nut (707)
Diagram Reference: 37
