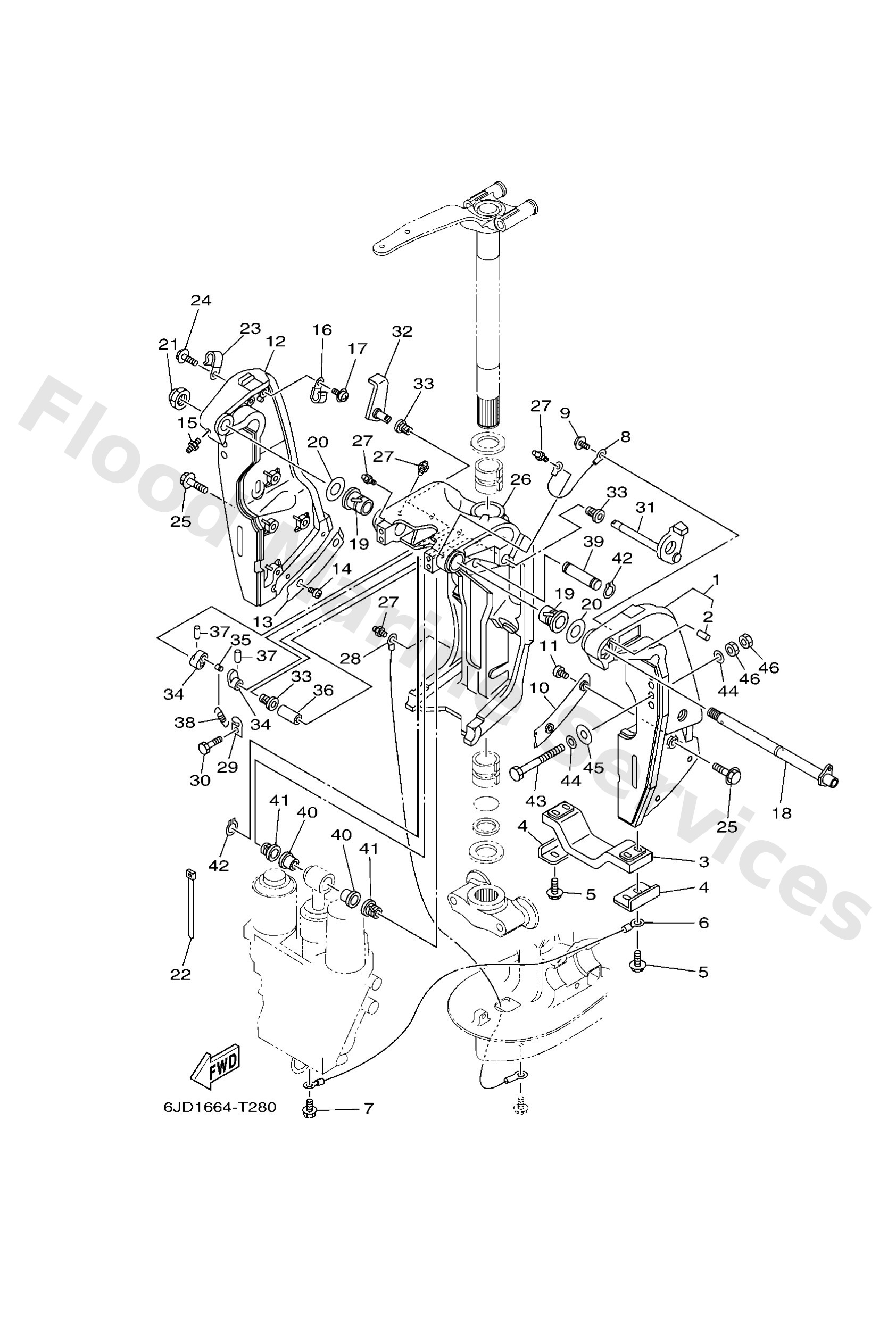

Parts List
Bracket, clamp 1
Diagram Reference: 1
Pin, Dowel
Diagram Reference: 2
Anode
Diagram Reference: 3
Plate
Diagram Reference: 4
Bolt, hexagon w/w deep recess
Diagram Reference: 5
Wire, Lead 4
Diagram Reference: 6
Bolt, hexagon w/w deep recess
Diagram Reference: 7
Wire, Lead 4
Diagram Reference: 8
Screw, with washer(6h3)
Diagram Reference: 9
Washer, Friction
Diagram Reference: 10
Bracket, clamp 2
Diagram Reference: 12
Washer,Friction
Diagram Reference: 13
Nipple, grease
Diagram Reference: 15
Clamp
Diagram Reference: 16
Bolt, clamp bracket
Diagram Reference: 18
Bush
Diagram Reference: 19
Nut, Self-Locking
Diagram Reference: 21
Clamp
Diagram Reference: 22
Bolt, hexagon w/w deep recess
Diagram Reference: 24
Bolt, With Washer
Diagram Reference: 25
Bracket, swivel 1
Diagram Reference: 26
Wire, Lead 4
Diagram Reference: 28
Hook, Spring
Diagram Reference: 29
Bolt, hexagon deep recess
Diagram Reference: 30
Lever, Tilt Stop
Diagram Reference: 31
Bush
Diagram Reference: 33
Collar, Distance
Diagram Reference: 34
Pin
Diagram Reference: 35
Collar
Diagram Reference: 36
Pin, Spring
Diagram Reference: 37
Spring, Tension
Diagram Reference: 38
Pin, upper shock mount
Diagram Reference: 39
Bush
Diagram Reference: 41
Circlip
Diagram Reference: 42
Bolt (L)130Mm)
Diagram Reference: 43
Bolt (L)150Mm)
Diagram Reference: 43
Washer, Plate
Diagram Reference: 45
Nut
Diagram Reference: 46
