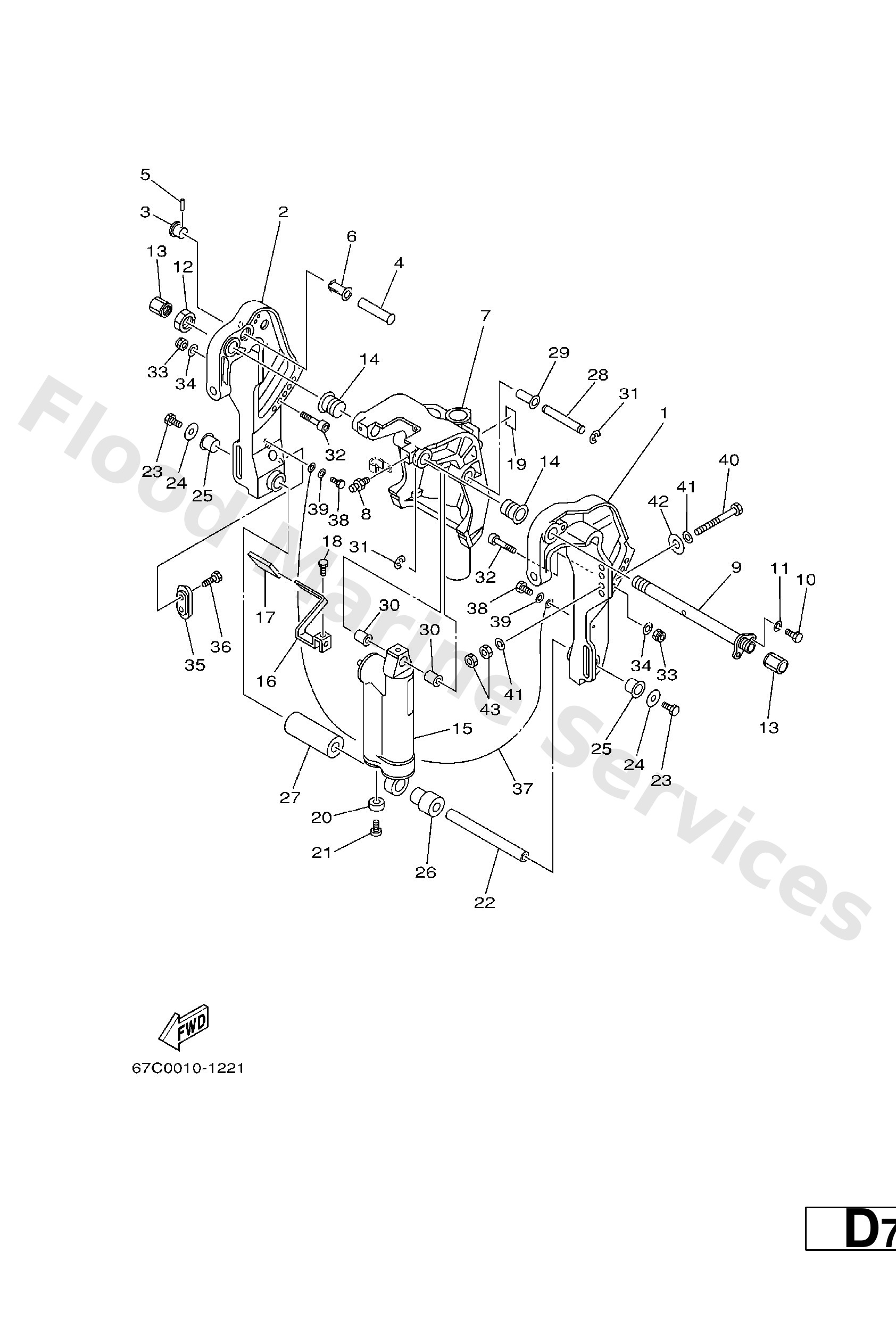

Diagram: BRACKET 1

Diagram

Parts List

67C43111104D
Bracket, clamp 1
Diagram Reference: 1
Get Part
67C43112104D
Bracket, clamp 2
Diagram Reference: 2
Get Part
65W--43192--00
Knob, stopper
Diagram Reference: 3
Get Part
65W--43191--00
Shaft, stopper
Diagram Reference: 4
Get Part
91690--30018
926-51502-00 pin, spring (700)
Diagram Reference: 5
Get Part
90386--14MA1
Bush
Diagram Reference: 6
Get Part
68U43311104D
Bracket, Swivel 1
Diagram Reference: 7
Get Part
93700--06M03
Nipple, grease(6a1)
Diagram Reference: 8
Get Part
6K9--43131--01
Bolt, clamp bracket
Diagram Reference: 9
Get Part
97095--08020
Bolt, hexagon
Diagram Reference: 10
Get Part
92995--08100
Ybs67-8 washer, spring
Diagram Reference: 11
Get Part
90185--22M11
Nut, self-locking
Diagram Reference: 12
Get Part
6G5--43145--01
Cap, clamp bracket
Diagram Reference: 13
Get Part
90386--22MA4
Bush
Diagram Reference: 14
Get Part
68U43170104D (L)
Shock absorber assembly
Diagram Reference: 15
Get Part
68U43170204D (X)
Shock absorber assembly
Diagram Reference: 15
Get Part
67C--43631--00
Lever, tilt
Diagram Reference: 16
Get Part
682--43318--01
Cover
Diagram Reference: 17
Get Part
97095--06010
Bolt
Diagram Reference: 18
Get Part
63D--43691--00
Indicator, tilt
Diagram Reference: 19
Get Part
663--45251--00
Anode
Diagram Reference: 20
Get Part
98680--06525
Screw flat head
Diagram Reference: 21
Get Part
90249--18M35
Pin, lower shock mount
Diagram Reference: 22
Get Part
97080--08016
Bolt
Diagram Reference: 23
Get Part
90201--08M00
Washer, plate(6e0)
Diagram Reference: 24
Get Part
90386--18M44
Bushing (6g5)
Diagram Reference: 25
Get Part
90386--18MA5
Bush
Diagram Reference: 26
Get Part
90387--18M03
Collar
Diagram Reference: 27
Get Part
90249--12M38
Pin
Diagram Reference: 28
Get Part
90381--12M10
Bush, solid
Diagram Reference: 29
Get Part
90381--12M11
Bush, solid
Diagram Reference: 30
Get Part
93430--10M00
Circlip
Diagram Reference: 31
Get Part
90110--10M02
Bolt, hexagon socket head
Diagram Reference: 32
Get Part
90185--10M13
Nut, self-locking
Diagram Reference: 33
Get Part
92995--10600
Washer, plate
Diagram Reference: 34
Get Part
65W--45251--00
Anode
Diagram Reference: 35
Get Part
90101--06020
Bolt
Diagram Reference: 36
Get Part
67C--82127--20
Wire, lead 2
Diagram Reference: 37
Get Part
97095--06014
Bolt(gj3)
Diagram Reference: 38
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 39
Get Part
90101--12M65
Bolt
Diagram Reference: 40
Get Part
92995--12200
Ybs66-12 washer,plain
Diagram Reference: 41
Get Part
90201--12426
Washe, plate(663)
Diagram Reference: 42
Get Part
95380--12600
Nut (707)
Diagram Reference: 43
