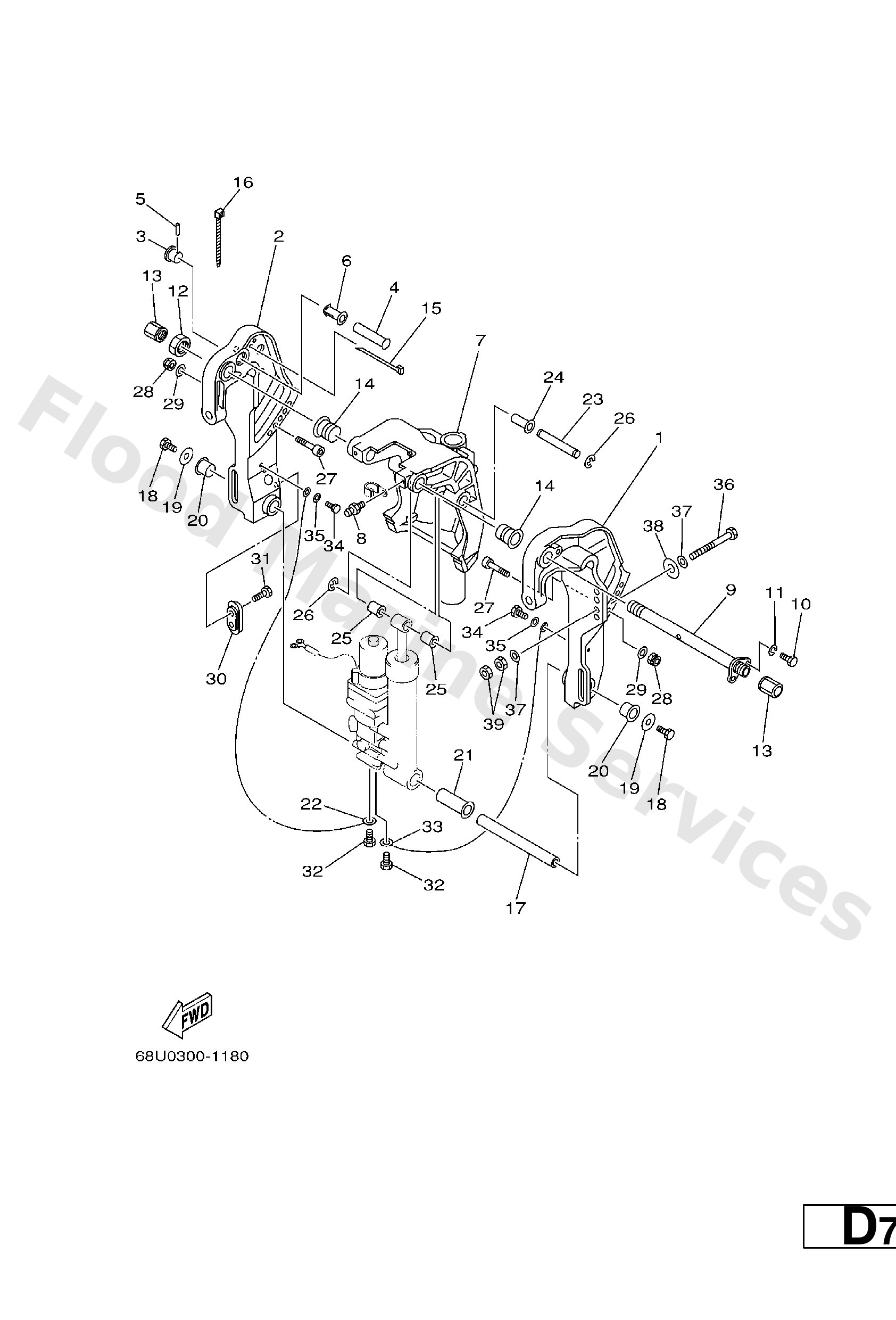

Diagram: BRACKET 1

Diagram

Parts List

67C−43111−10−4D
Bracket, clamp 1
Diagram Reference: 1
Get Part
67C−43112−10−4D
Bracket, clamp 2
Diagram Reference: 2
Get Part
65W−43192−00
Knob, stopper
Diagram Reference: 3
Get Part
65W−43191−00
Shaft, stopper
Diagram Reference: 4
Get Part
91690−30018
926-51502-00 pin, spring (700)
Diagram Reference: 5
Get Part
90386−14MA1
Bush
Diagram Reference: 6
Get Part
68U−43311−10−4D
Bracket, Swivel 1
Diagram Reference: 7
Get Part
93700−06M03
Nipple, grease(6a1)
Diagram Reference: 8
Get Part
6K9−43131−01
Bolt, clamp bracket
Diagram Reference: 9
Get Part
97095−08020
Bolt, hexagon
Diagram Reference: 10
Get Part
92995−08100
Ybs67-8 washer, spring
Diagram Reference: 11
Get Part
90185−22M11
Nut, self-locking
Diagram Reference: 12
Get Part
6G5−43145−01
Cap, clamp bracket
Diagram Reference: 13
Get Part
90386−22MA4
Bush
Diagram Reference: 14
Get Part
90465−13M11
Clamp (6e5)
Diagram Reference: 15
Get Part
90465−11M10
Clamp
Diagram Reference: 16
Get Part
90249−18M35
Pin, lower shock mount
Diagram Reference: 17
Get Part
97080−08016
Bolt
Diagram Reference: 18
Get Part
90201−08M00
Washer, plate(6e0)
Diagram Reference: 19
Get Part
90386−18M44
Bushing (6g5)
Diagram Reference: 20
Get Part
90386−18MA0
Bush
Diagram Reference: 21
Get Part
6H1−82148−00
Wire, lead
Diagram Reference: 22
Get Part
90249−12M38
Pin
Diagram Reference: 23
Get Part
90381−12M10
Bush, solid
Diagram Reference: 24
Get Part
90381−12M11
Bush, solid
Diagram Reference: 25
Get Part
93430−10M00
Circlip
Diagram Reference: 26
Get Part
90110−10M02
Bolt, hexagon socket head
Diagram Reference: 27
Get Part
90185−10M13
Nut, self-locking
Diagram Reference: 28
Get Part
92995−10600
Washer, plate
Diagram Reference: 29
Get Part
65W−45251−00
Anode
Diagram Reference: 30
Get Part
90101−06020
Bolt
Diagram Reference: 31
Get Part
97085−06010
Bolt
Diagram Reference: 32
Get Part
6U0−82127−00
Wire, lead 5
Diagram Reference: 33
Get Part
97095−06014
Bolt(gj3)
Diagram Reference: 34
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 35
Get Part
90101−12M65
Bolt
Diagram Reference: 36
Get Part
92995−12200
Ybs66-12 washer,plain
Diagram Reference: 37
Get Part
90201−12426
Washe, plate(663)
Diagram Reference: 38
Get Part
95380−12600
Nut (707)
Diagram Reference: 39
Get Part
