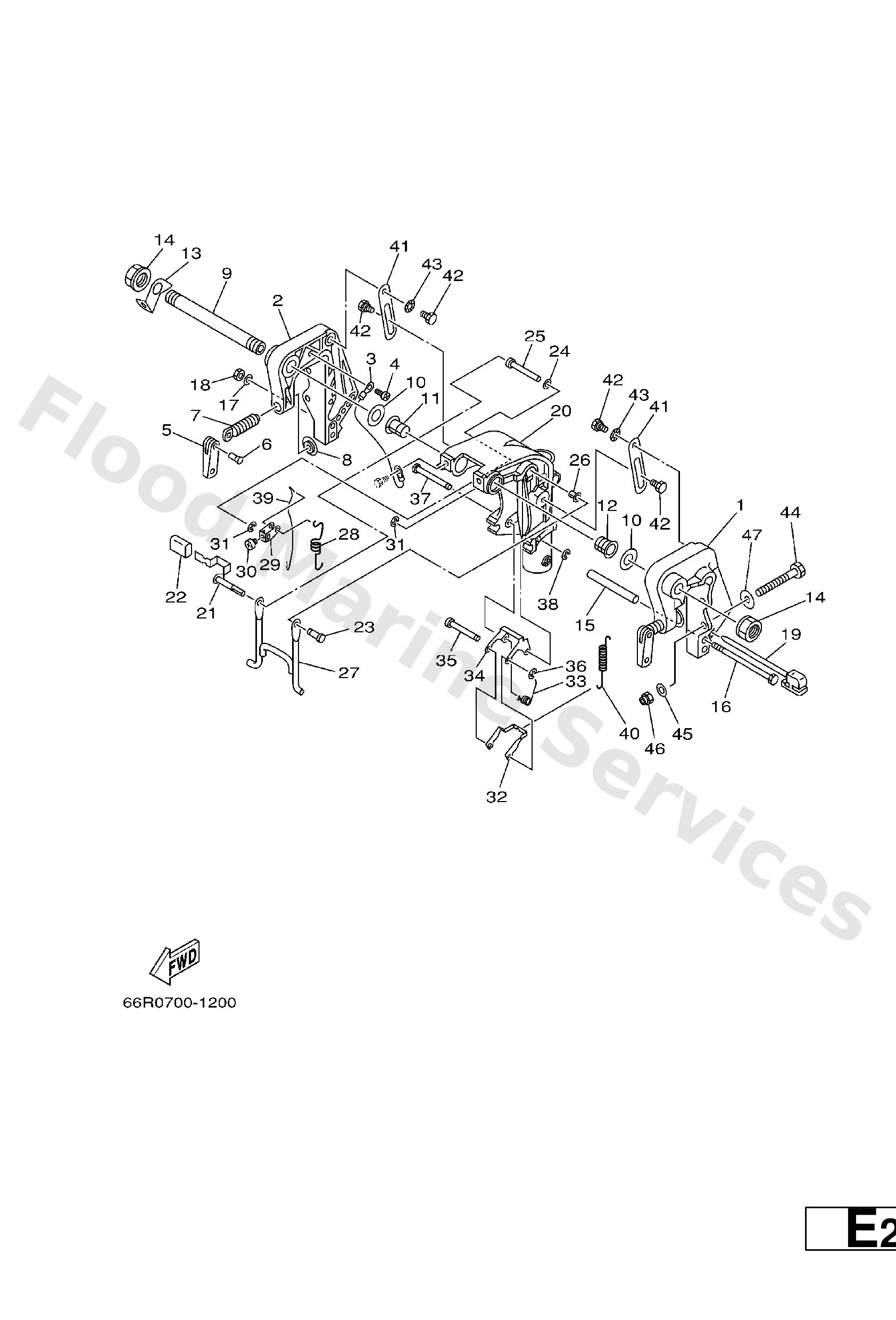

Diagram: BRACKET 1
Parts List
Bracket, clamp 1
Diagram Reference: 1
Bracket, clamp 2
Diagram Reference: 2
Wire, lead 4
Diagram Reference: 3
Screw, pan head(6a3)
Diagram Reference: 4
Handle, transom clamp
Diagram Reference: 5
Pin(6a1)
Diagram Reference: 6
Screw, transom clamp
Diagram Reference: 7
Pad, transom clamp
Diagram Reference: 8
Bolt, clamp bracket
Diagram Reference: 9
Washer, plate(63v)
Diagram Reference: 10
Bush(63v)
Diagram Reference: 11
Plate, clamp bracket
Diagram Reference: 13
Nut, self-locking
Diagram Reference: 14
Collar(6h6)
Diagram Reference: 15
Bolt, hexagon (682)
Diagram Reference: 16
Washer, plain (646)
Diagram Reference: 17
Nut
Diagram Reference: 18
Tilt rod assembly
Diagram Reference: 19
Bracket, swivel 1
Diagram Reference: 20
Tilt lever assembly
Diagram Reference: 21
Cover
Diagram Reference: 22
Shaft, stopper
Diagram Reference: 23
Washer, plate
Diagram Reference: 24
Collar
Diagram Reference: 25
Bush(63v)
Diagram Reference: 26
Receiver assembly
Diagram Reference: 27
Spring, tension(63v)
Diagram Reference: 28
Lever, tilt
Diagram Reference: 29
Screw, pan head
Diagram Reference: 30
Circlip(22k)
Diagram Reference: 31
Plate, tilt lock
Diagram Reference: 32
Spring, torsion
Diagram Reference: 33
Plate, tilt lock
Diagram Reference: 34
Shaft, tilt lock
Diagram Reference: 35
Circlip (eu0)
Diagram Reference: 36
Shaft, reverse lock
Diagram Reference: 37
Rod, tilt lock
Diagram Reference: 39
Spring, reverse lock 1
Diagram Reference: 40
Lever, tilt stop 1
Diagram Reference: 41
Bolt
Diagram Reference: 42
Washer, wave
Diagram Reference: 43
Bolt (6g8)
Diagram Reference: 44
Washer, plain (663)
Diagram Reference: 45
Nut, nylon (6j8)
Diagram Reference: 46
Washer, plate (6g8)
Diagram Reference: 47
