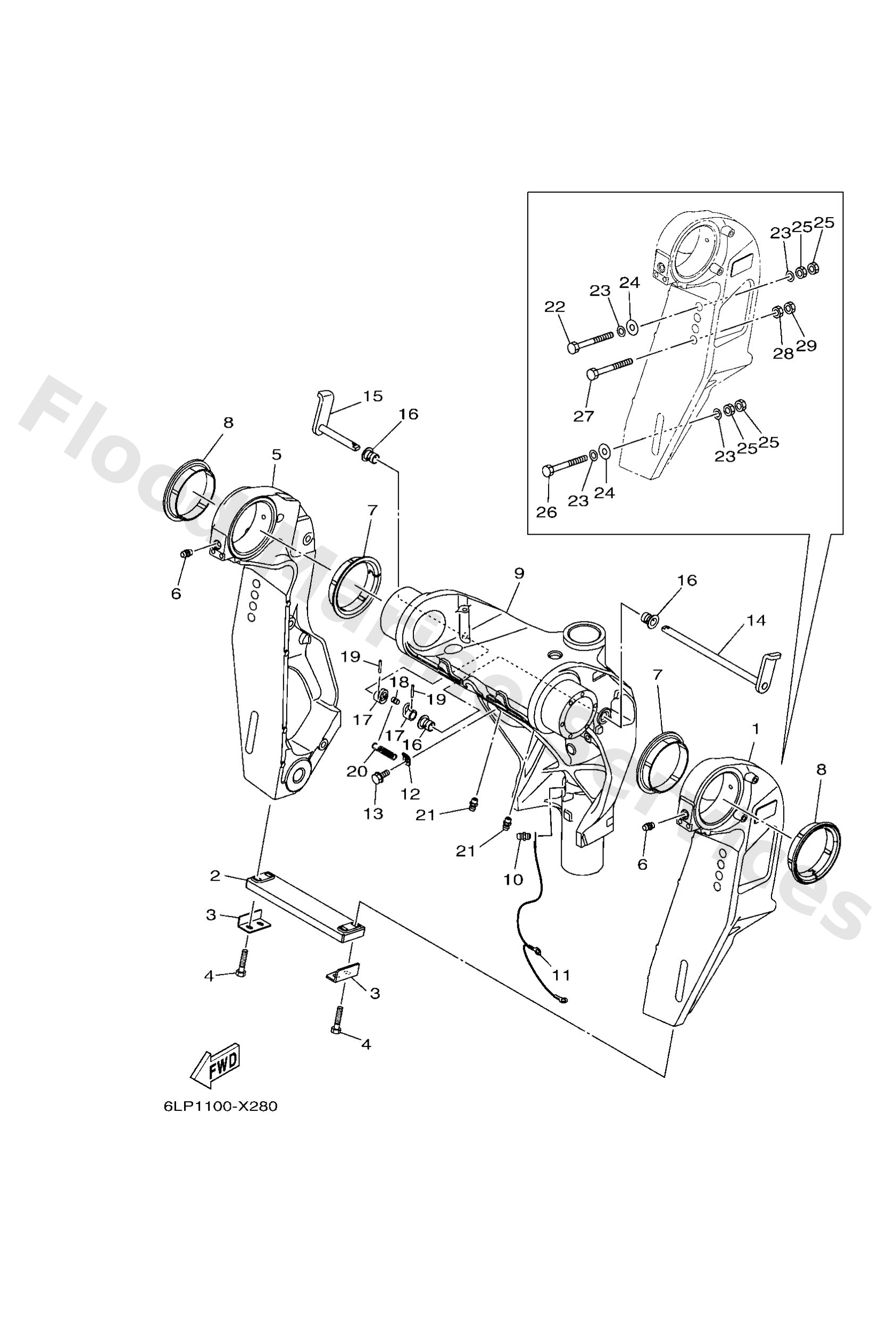

Diagram: BRACKET 1

Diagram

Parts List

6LH43111008D
Bracket, clamp 1
Diagram Reference: 1
Get Part
6AW4525100
Anode
Diagram Reference: 2
Get Part
6G54452600
Plate
Diagram Reference: 3
Get Part
97E9506530
Bolt, hexagon w/w deep recess
Diagram Reference: 4
Get Part
6LH43112008D
Bracket, clamp 2
Diagram Reference: 5
Get Part
9370006002
Nipple, grease
Diagram Reference: 6
Get Part
6LH4333300
Bush. , swivel bracket
Diagram Reference: 7
Get Part
6LH4333310
Bush. , swivel bracket
Diagram Reference: 8
Get Part
6LH43311108D (X(25.2"))
Bracket, swivel 1
Diagram Reference: 9
Get Part
6LH43311008D (L(20.3"))
Bracket, swivel 1
Diagram Reference: 9
Get Part
6DA8214900 (X(25.2"))
Wire, lead 3
Diagram Reference: 11
Get Part
66K8214900 (L(20.3"))
Wire, lead 3
Diagram Reference: 11
Get Part
6G54314400
Hook, spring
Diagram Reference: 12
Get Part
97E9506512
Bolt, hexagon w/w deep recess
Diagram Reference: 13
Get Part
6LH4318100
Lever, tilt stop 1
Diagram Reference: 14
Get Part
6LH4318500
Lever, tilt stop 2
Diagram Reference: 15
Get Part
9038610M16
Bushing (688)
Diagram Reference: 16
Get Part
6G54314800
Collar, distance
Diagram Reference: 17
Get Part
9024906M19
Pin(6e5)
Diagram Reference: 18
Get Part
9169030020
Pin, spring (6h4)
Diagram Reference: 19
Get Part
9050616010
Spring, tension
Diagram Reference: 20
Get Part
9010112070
Bolt (230mm)
Diagram Reference: 22
Get Part
9020113M01
Washer, plate(6e5)
Diagram Reference: 23
Get Part
9020112426
Washe, plate(663)
Diagram Reference: 24
Get Part
9538012600
Nut (707)
Diagram Reference: 25
Get Part
9010112066
Bolt (l:150mm)
Diagram Reference: 26
Get Part
9010112078 (AP)
Bolt
Diagram Reference: 27
Get Part
9538012700 (AP)
Nut(6t4)
Diagram Reference: 28
Get Part
9017012M28 (AP)
Nut(6u0)
Diagram Reference: 29
