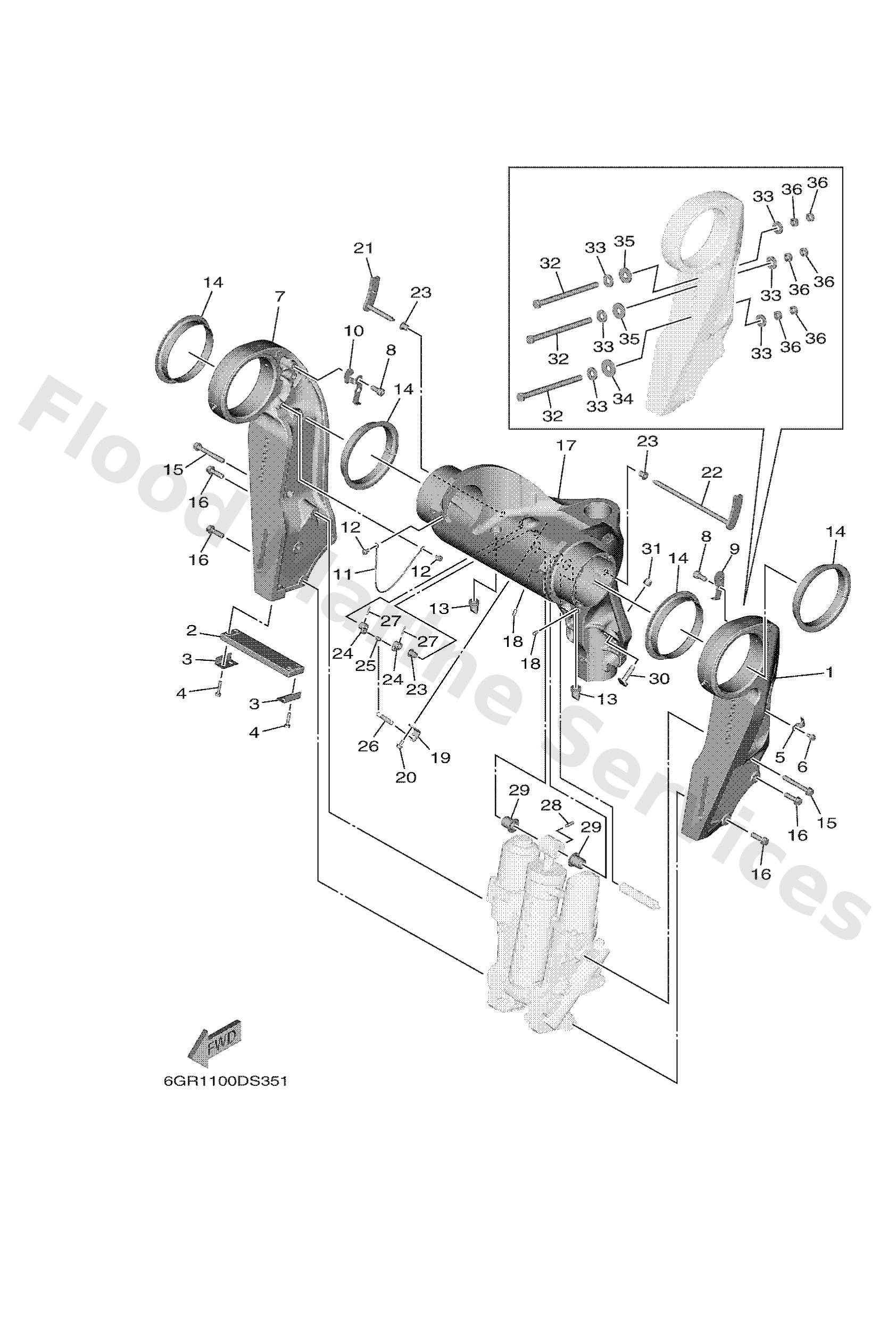

Parts List
Bracket, clamp 1, w/nipple
Diagram Reference: 1
Bracket, clamp 1, w/nipple
Diagram Reference: 1
Anode
Diagram Reference: 2
Plate
Diagram Reference: 3
Bolt, hexagon w/w deep recess
Diagram Reference: 4
Clamp(61u)
Diagram Reference: 5
Bolt, flange deep recess
Diagram Reference: 6
Bracket, clamp 2, w/nipple
Diagram Reference: 7
Bracket, clamp 2, w/nipple
Diagram Reference: 7
Bolt
Diagram Reference: 8
Bracket
Diagram Reference: 9
Bracket
Diagram Reference: 10
Wire, lead 5
Diagram Reference: 11
Bolt, hexagon w/w deep recess
Diagram Reference: 12
Rubber, seal 2
Diagram Reference: 13
Bush. , swivel bracket
Diagram Reference: 14
Bolt, with washer
Diagram Reference: 15
Bolt, with washer
Diagram Reference: 16
Bracket, swivel 1
Diagram Reference: 17
Bracket, swivel 1
Diagram Reference: 17
Nipple, grease
Diagram Reference: 18
Hook, spring
Diagram Reference: 19
Lever, tilt stop 1
Diagram Reference: 21
Lever, tilt stop 2
Diagram Reference: 22
Bushing (688)
Diagram Reference: 23
Collar, distance
Diagram Reference: 24
Pin(6e5)
Diagram Reference: 25
Spring, tension
Diagram Reference: 26
Pin, spring (6h4)
Diagram Reference: 27
Pin, spring
Diagram Reference: 28
Bush
Diagram Reference: 29
Bolt, thrust receiver
Diagram Reference: 30
Nut, nylon (6e5)
Diagram Reference: 31
Bolt (210mm)
Diagram Reference: 32
Bolt (180mm)
Diagram Reference: 32
Bolt (110mm)
Diagram Reference: 32
Bolt (150mm)
Diagram Reference: 32
Bolt (170mm)
Diagram Reference: 32
Bolt (200mm)
Diagram Reference: 32
Bolt (230mm)
Diagram Reference: 32
Washer, plate
Diagram Reference: 33
Washe, plate(663)
Diagram Reference: 34
Washer, plate (663)
Diagram Reference: 35
Nut (707)
Diagram Reference: 36
