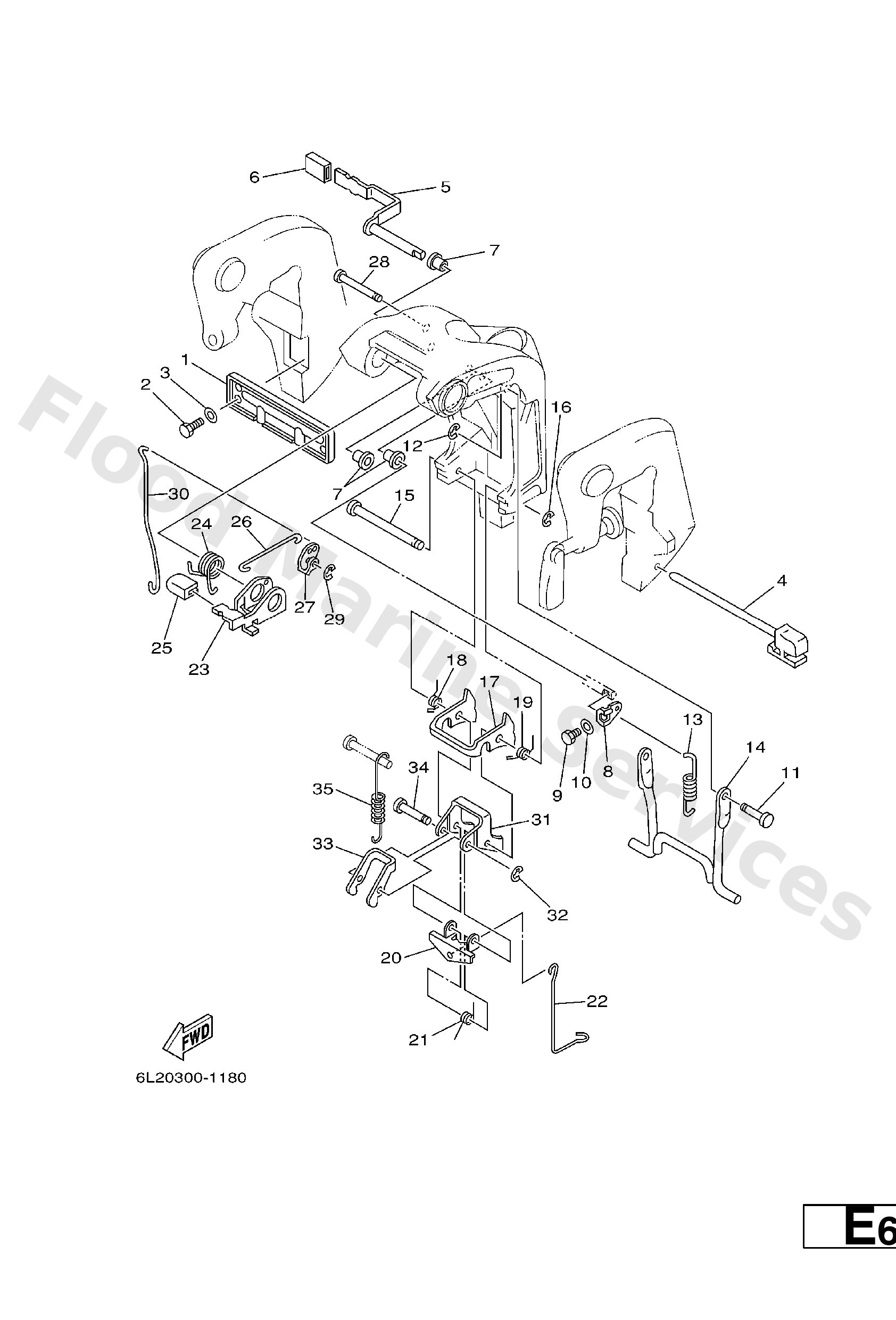

Diagram: BRACKET 2

Diagram

Parts List

6L2−43165−01

Plate, tilt lock

Diagram Reference: 1

97090−06010

Bolt

Diagram Reference: 2

92990−06600

Washer, plain (646)

Diagram Reference: 3

6L2−43160−00

Tilt rod assembly

Diagram Reference: 4

6L2−43630−01

Tilt lever assembly

Diagram Reference: 5

682−43318−01

Cover

Diagram Reference: 6

90386−08032

Bushing (650)

Diagram Reference: 7

6L2−43682−01

Lever, shallow water drive 2

Diagram Reference: 8

97095−05010

Bolt (682)

Diagram Reference: 9

92995−05600

Washer, plain (646)

Diagram Reference: 10

6L2−43191−01

Shaft, stopper

Diagram Reference: 11

99080−05600

Circlip(22k)

Diagram Reference: 12

90506−20M27

Spring, tension(6l2)

Diagram Reference: 13

6L2−43350−02

Receiver assembly

Diagram Reference: 14

6J8−43611−01

Shaft, tilt lock

Diagram Reference: 15

6L2−43614−00

Plate, tilt lock

Diagram Reference: 17

90508−12M28

Spring, torsion(6l2)

Diagram Reference: 18

90508−12M29

Spring, torsion(6l2)

Diagram Reference: 19

6L2−43615−00

Plate, tilt lock

Diagram Reference: 20

6L2−43657−00

Spring, lock

Diagram Reference: 21

6L2−43676−00

Hook

Diagram Reference: 22

6L2−43631−00

Lever, tilt

Diagram Reference: 23

6L2−43188−00

Spring

Diagram Reference: 24

6L2−43633−10

Cover, tilt lever

Diagram Reference: 25

6L2−43611−00

Shaft, tilt lock

Diagram Reference: 26

6L2−43641−00

Lever, tilt

Diagram Reference: 27

6L2−43659−00

Shaft, reverse lock

Diagram Reference: 28

6L2−43617−00

Rod, tilt lock

Diagram Reference: 30

6L2−43613−00

Arm, tilt lock

Diagram Reference: 31

6L2−43624−00

Plate, tilt rock

Diagram Reference: 33

6L2−43336−00

Pin

Diagram Reference: 34

90506−23M11

Spring, tension(6l2)

Diagram Reference: 35
