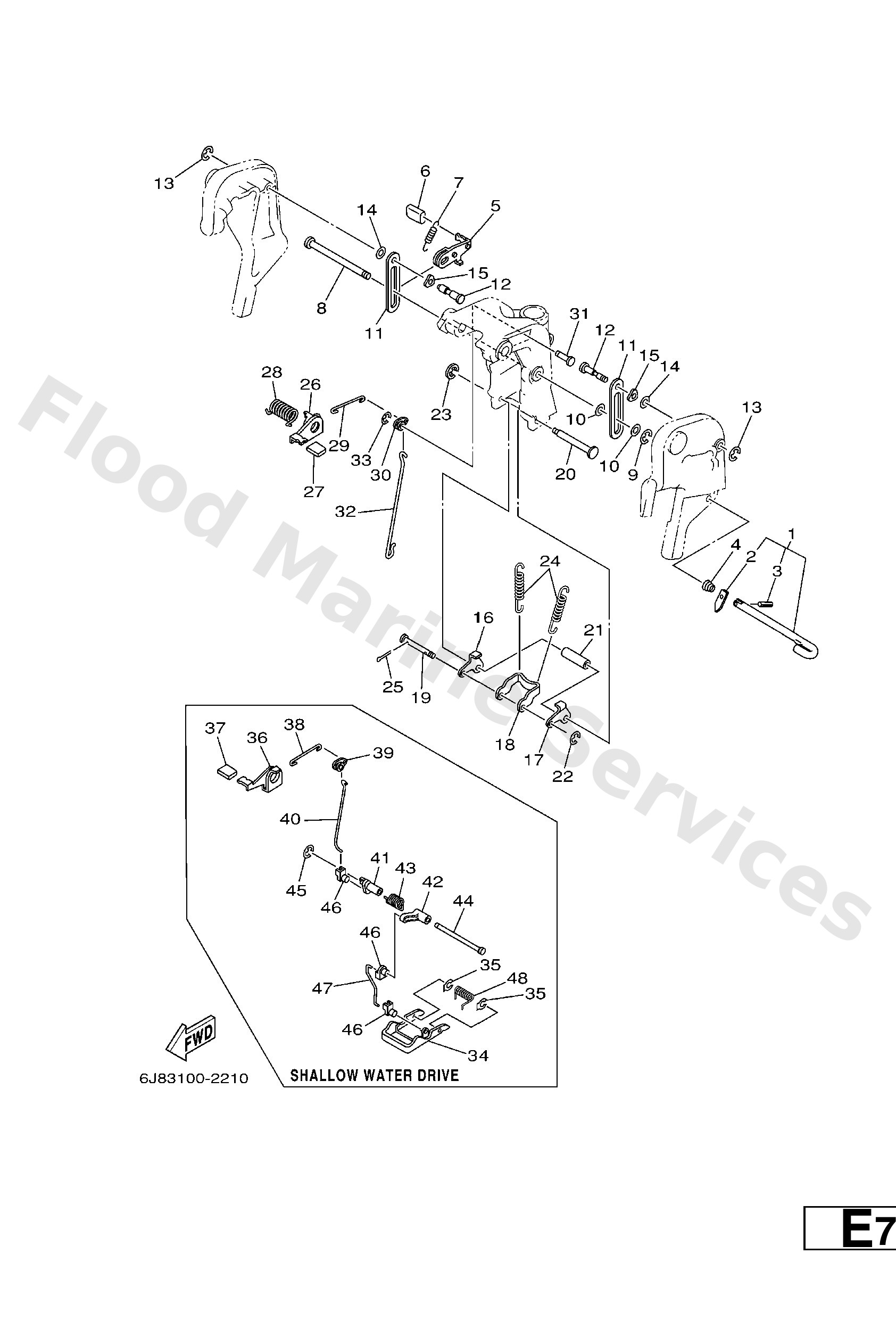

Diagram: BRACKET 2

Diagram

Parts List

6H44316001
Tilt rod assembly
Diagram Reference: 1
Get Part
6764316500
Stopper plate, titl lock rod
Diagram Reference: 2
Get Part
9169030010
Pin, spring (663)
Diagram Reference: 3
Get Part
9050210M04
Spring, conical(6f5)
Diagram Reference: 4
Get Part
6J84318101
Lever, tilt stop 1
Diagram Reference: 5
Get Part
6824331801
Cover
Diagram Reference: 6
Get Part
9050612M25
Spring, tension(6h4)
Diagram Reference: 7
Get Part
9024912M28
Pin(6h4)
Diagram Reference: 8
Get Part
9343010M00
Circlip
Diagram Reference: 9
Get Part
9020212031
Washer, plate 6484412600
Diagram Reference: 10
Get Part
6J84362700
Stopper
Diagram Reference: 11
Get Part
9024912M27
Pin(6f6)
Diagram Reference: 12
Get Part
9020612M16
Washer, wave(6j8)
Diagram Reference: 15
Get Part
6J84361400
Plate, tilt lock
Diagram Reference: 16
Get Part
6J84361500
Plate, tilt lock
Diagram Reference: 17
Get Part
6J84361301
Arm, tilt lock
Diagram Reference: 18
Get Part
6H44365900
Shaft, reverse lock
Diagram Reference: 19
Get Part
6J84361101
Shaft, tilt lock
Diagram Reference: 20
Get Part
9038707M64
Collar (6h4)
Diagram Reference: 21
Get Part
9343006M02
Circlip (689)
Diagram Reference: 22
Get Part
9908005600
Circlip(22k)
Diagram Reference: 23
Get Part
9050632M22
Spring, tension(6j8)
Diagram Reference: 24
Get Part
9149020010
Pin, cotter
Diagram Reference: 25
Get Part
6J84363100
Lever, tilt
Diagram Reference: 26
Get Part
6J84363300
Cover, tilt lever
Diagram Reference: 27
Get Part
9050818M23
Spring, torsion(6h4)
Diagram Reference: 28
Get Part
6H44361600
Rod, tilt lock 1
Diagram Reference: 29
Get Part
6J84364100
Lever, tilt
Diagram Reference: 30
Get Part
9024906M24
Pin(6h4)
Diagram Reference: 31
Get Part
6J84361700
Rod, tilt lock
Diagram Reference: 32
Get Part
6J84368101
Lever, shallow water drive
Diagram Reference: 34
Get Part
6J84367300
Washer 1
Diagram Reference: 35
Get Part
6J84363110
Lever, tilt
Diagram Reference: 36
Get Part
6J84361710
Rod, tilt lock
Diagram Reference: 40
Get Part
6J84318600
Lever
Diagram Reference: 41
Get Part
6J84318700
Lever 2
Diagram Reference: 42
Get Part
9050825M21
Spring, torsion(6h4)
Diagram Reference: 43
Get Part
9024907M25
Pin(6h4)
Diagram Reference: 44
Get Part
6J84126200
Joint, choke lever
Diagram Reference: 46
Get Part
6J84361610
Rod, tilt lock
Diagram Reference: 47
Get Part
9050820M22
Spring, torsion(6h4)
Diagram Reference: 48
Get Part
