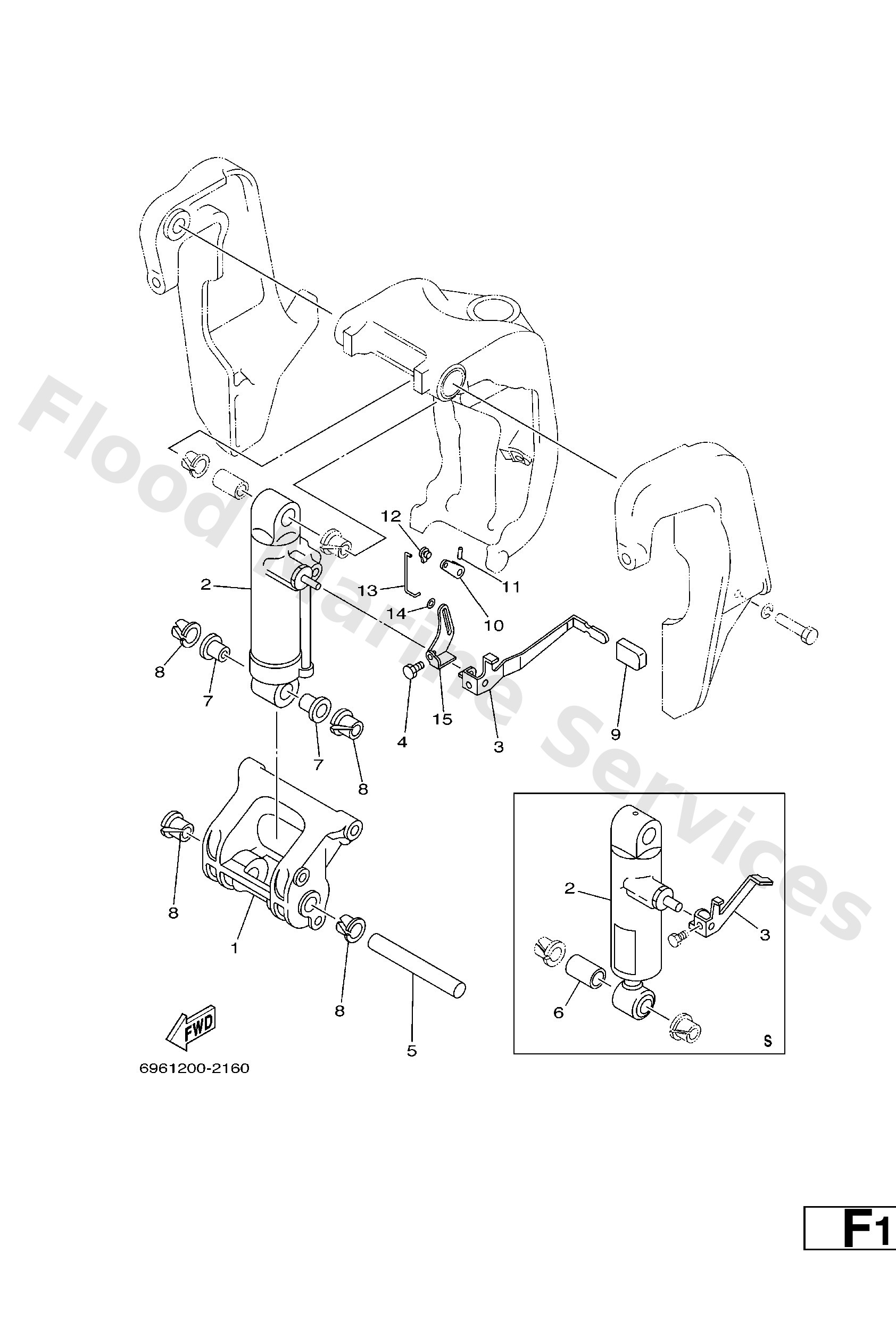

Diagram: BRACKET 2

Diagram

Parts List

68843128014D (L)
Spacer, clamp bracket
Diagram Reference: 1
Get Part
69743128014D (S)
Spacer, clamp bracket
Diagram Reference: 1
Get Part
69743170034D (S)
Shock absorber sub-assembly
Diagram Reference: 2
Get Part
68843170044D (L)
Shock absorber sub-assembly
Diagram Reference: 2
Get Part
6884363100 (S)
Lever, tilt 1
Diagram Reference: 3
Get Part
6884363110 (L)
Lever, tilt
Diagram Reference: 3
Get Part
9708006010
Bolt
Diagram Reference: 4
Get Part
6884312402
Pin, lower shock mount
Diagram Reference: 5
Get Part
9038618M21 (S)
Bushing (688)
Diagram Reference: 6
Get Part
9038618M63 (L)
Bush(6e5)
Diagram Reference: 7
Get Part
9038618M35
Bush (688)
Diagram Reference: 8
Get Part
6824331801 (L)
Cover
Diagram Reference: 9
Get Part
6884318600 (L)
Lever
Diagram Reference: 10
Get Part
9169030020 (L)
Pin, spring (6h4)
Diagram Reference: 11
Get Part
6J84126200 (L)
Joint, choke lever
Diagram Reference: 12
Get Part
6884361600 (L)
Rod, tilt lock
Diagram Reference: 13
Get Part
9020203M51 (L)
Washer, plate(688)
Diagram Reference: 14
Get Part
6884365100 (L)
Lever, reverse lock1
Diagram Reference: 15
Get Part
